ID-H10A : 6mm Aluminum Front Bezel 10.4" Samsung Sunlight Viewable Display - Panel Mount Style

        6mm Aluminum Front Bezel 10.4" High Brightness Industrial Display - Panel Mount Style
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

10.4 inch diagonal (211H x 158V)


800 x 600

Display Color

262K color


1000 cd/m2

Contrast ratio

800 : 1 (Typical)

Response Time

Tr=10 / Tf=25ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

70° / 70° / 55° / 65° (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall


50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter


Support VESA-mount, Panel-mount, Wall-mount & Bracket mount

Optional Video  Input

  • Video Input : S-Video and Composite
  • Input Connectors : BNC, RCA, S-video
  • Optional Touch Screen


    Other Options

    - Video Input : S-Video & Composite Video (BNC/RCA)"
    - NEMA4 / IP65, TV tuner, Audio, Remote controller
    - 48V / 24V / 12V DC Power     Details
    - Anti-Reflective Film, Optical Bonding



     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)


     Powder Coating

    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension 284.7 x 60.8 x 222 mm (WxDxH)
    Product Weight  2.5 kg
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~95%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Shock   10G acceleration (11ms duration)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    LCD Monitor x 1, VGA Cable (Male to Male) x1,   AC to DC 12V adapter  x1 ,Power cord x 1,Mounting Bracket x 1 pair, User Manual x 1

      Front View of  ID-H10A



       Front / Rear / Top / Side Views & Dimensions


          *click on above picture for enlarged view



                         ( VESA Mount /  Wall Mount )

      NOTE: Coming soon! Refer to similar model now


    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7





    More Photos, click on the following for enlarged view:

    • 10.4" industrial TFT LCD panel support 800 x 600 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer

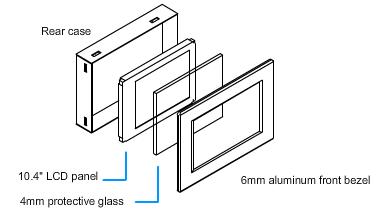

    • Rugged construction and modularized design
    • 1000 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input (S-Video & RCA input)
    • Optional touch screen, NEMA 4 / IP 65 front protection
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )


    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet
