ID-E17Aw    Panel Mount 16.2" High Resolution 1920 x 1200 Wide Screen Monitor , TAA





Model  ID-E17Aw


Industrial Grade 16.2" High Resolution 1920 x 1200 Panel Mount Monitor
TAA Compliant

LCD w/ LED Backlight Panel
LCD Type

Native WUXGA Ultra high resolution TFT LCD Panel

Backlight

LED

Display Size

Wide 16.2 inch diagonal

Resolutions

1920 x 1200

Display Color

1.07 Billion, 10-bit

Brightness

210 cd/m2

Contrast ratio

800 : 1 (Typical)

Active area (mm)

367 x 230

Viewing angle 178° x 178°

LCD MTBF

15,000 hrs

Signal Input

HDMI / DVI-D / VGA / S-Video / RCA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 48 Watt,
                   Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

250V , 125V , 110V , 48V, 24V or 12V DC power

Other Option

- Multi-Display Controller
- NEMA4 / IP65
- MIL-type or lockable connector

Mechanical
Color  Front Panel : Black
 Rear case   : Dark Grey
Dimension
( W x D x H )
 18.4 x 2.2 x 13 inch /
 469 x 57 x 331 mm
Product Weight  5.5 kgs ( 12.1 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE , REACH & RoSH Compliant , TAA Compliant

ID-E17Aw

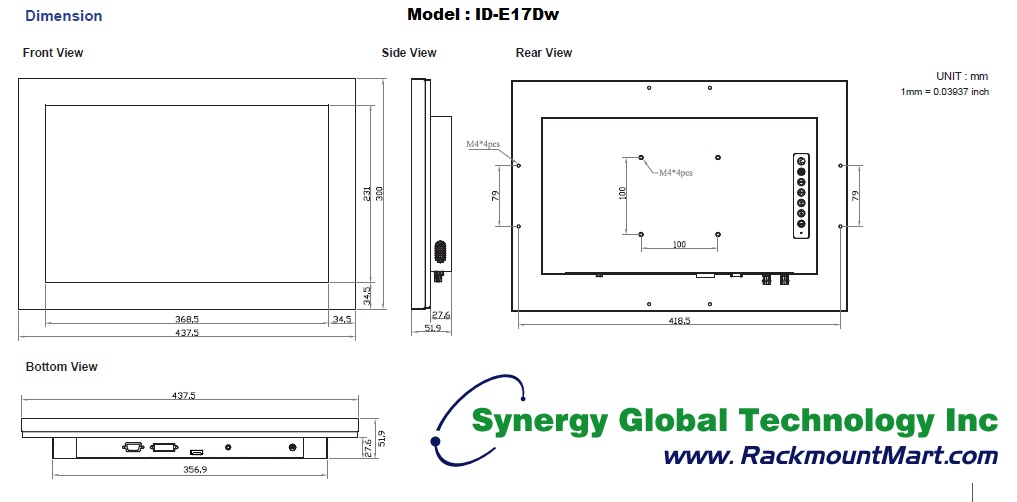

Dimensions


*click for enlarged view

                    Download Product Sheet
                    Download User Manual
                    Download Mounting Guide
                        (Panel mount / VESA mount)




        Free Ground Shipping * Click for details

   DISPLAY BENEFITS :
  • 17" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
  • Green LED-backlit panel technology
  • 1.07 Billion true colors, 10-bit
  • Standard with HDMI, DVI-D, VGA


   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 17" Touchscreen : Capacitive, Resistive
  • NEMA4 / IP65 front protective glass
  • MIL-type or lockable connector
  • 250V , 125V , 110V , 48V, 24V or 12V DC power









Availability: Usually ships the next business day

ID-E17Aw $1,278.00
Model:
Lockable VGA Jack :


Options
Video Input:

Multi-Display Controller :

NEMA4 / IP65 Protective Glass:

Touch Screen:

Straight DC Power Input :
Lockable DC Power Jack:
