ID-2-E17Aw  Industrial Grade 17" Full HD 1080p Panel Mount Monitor, TAA Compliant





Model  ID-2-E17Aw


             Industrial Grade 17" Full HD 1080p Panel Mount Monitor
TAA Compliant

                                                  LCD Panel
LCD Type Widescreen TFT LCD Panel

Backlight

LED

Display Size

17.3 inch diagonal (382H x 215V)

Resolutions

1920 x 1080

Display Color

16.7 M, 8-bit

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Viewing angle

160° x 140°

LCD MTBF

50,000 hrs

Signal Input

VGA / DVI-D

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
                                                  OPTIONS

Optional Touch Screen

                 Details

Optional DC Power

250V , 125V , 110V , 48V, 24V or 12V DC power

Other Options

- HDMI, Audio, Remote Controller
- MIL-type or lockable connectors
- Video Transmission Over Network or IP & Video Management:
* Video Decoding capability up to 1080p over Internet
* HDMI Extender Module 1080p over network
* Multi Monitor On Screen Display Control Module over
  Serial Controller

* 3G / HD / SD-SDI Input Module
* Portrait Mode Module
* Quad Display Module
* Auto Brightness Dimming Module
  or Manual Brightness Dimming Knob

Mechanical

Material

 6mm Aluminum (Front panel)

Color  Front Panel : Black
 Rear case : Black
Dimension  468.5 x 57.1 x 331 mm /
 18.4 x 2.2 x 13 inch (W x D x H)
Product Weight  5.2 kg ( 11.4 lbs )
Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval  FCC, CE, RoHS , TAA Compliant
  Front View of  ID-2-E17Aw

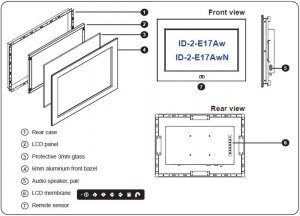

  Construction

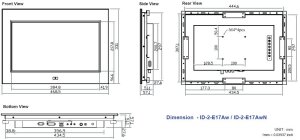

   Dimensions



*click for enlarged view

 Product Sheet
 User Manual
 Mounting Guide


   Free Ground Shipping * Click for details




Availability: Usually ships the next business day

ID-2-E17Aw $778.00


MODEL:


OPTIONS
Video Transmission & Management
Embedded HDMI Decoder Module:
Standalone HDMI Encoder:
Embedded HDMI Receiver Module:
Standalone HDMI Transmitter:
Quad Display Module:
Quad Display Extension Module:
Portrait Mode Module:
Multi-Display Controller:

NEMA4 / IP65:

Touch Screen:
Lockable USB Jack for the Touch Screen :

Straight DC Input Power :
Lockable DC Power Jack :
