ID-19Aw-LED    Industrail Grade 19" Wide Screen Panel Mount Monitor , TAA Compliant





Model  ID-19Aw-LED


         Industrail Grade 19" Wide Screen Panel Mount Monitor
TAA Compliant

LCD w/ LED Backlight
LCD Type TFT LCD Panel

Backlight

LED

Display Size

19" Widescreen TFT

Resolutions

1440 x 900

Display Color

16.7M color

Brightness

250 cd/m2

Contrast ratio

1000 : 1 (Typical)

Active area

408 x 255mm

Viewing angle 160° x 160°

LCD MTBF

30,000 hrs

Signal Input

DVI-D / VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 48 Watt,
                   Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Other Option

- Multi-Display Controller         Details
- TV
- S-Video + Composite ( BNC ) or Audio input
- HDMI or DVI-D ( either one for AV2.2 upgrade )
- MIL-type or lockable connector
- 48V, 24V or 12VDC power     Details
- Quad display for CCTV

Mechanical

Material

  1.2mm Steel

Dimension  508.5 x 63.6 x 338.1 mm /
 20 x 2.5 x 13.3 inch ( WxDxH )
Product Weight  5 kgs ( 11 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Safety Approval FCC, CE, RoHS Compliant, TAA Compliant
Package Content

  ID-19Aw-LED

  Construction

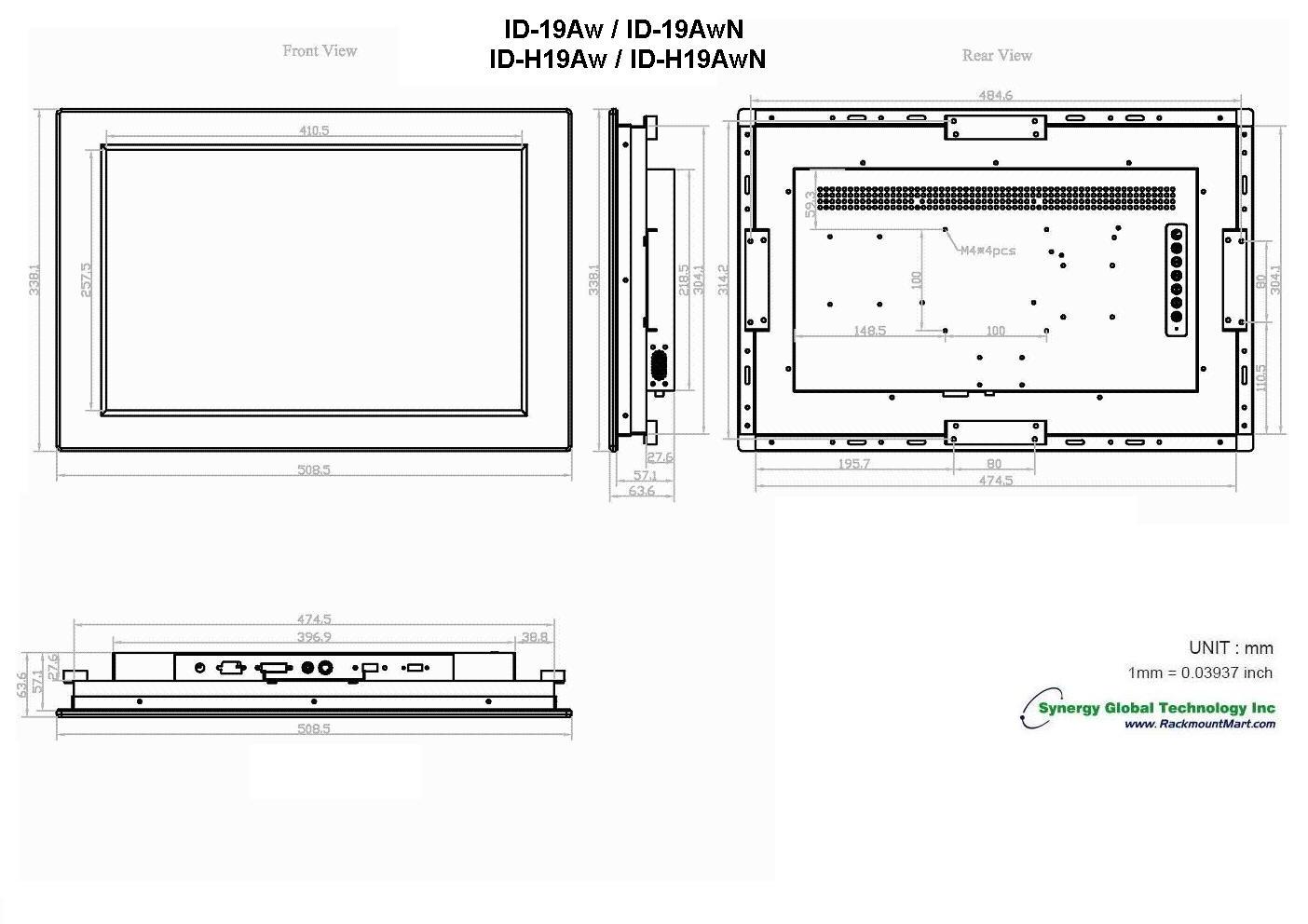

  Dimensions


*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual

  Free Ground Shipping * Click for details


   DISPLAY BENEFITS :
  • 19" widescreen LCD with high resolution 1440 x 900
  • Rugged construction against external impact
  • Protective 3mm glass
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for AV2.2 upgrade )
  • MIL-type or lockable connector
  • 48V, 24V or 12VDC power
  • Quad display for CCTV
  • TV - Analog






Availability: Usually ships the next business day

ID-19Aw-LED $582.00
