ID-E21Aw    Panel Mount  FHD 1080p  21" LED  Wide Screen Monitor , TAA Compliant





Model  ID-E21Aw


 Panel Mount Full HD 1080p 21" LED Wide Screen Monitor

LCD w/ LED Backlight Panel
LCD Type

Indusstrial Grade TFT LCD Panel

Backlight

LED

Display Size

Wide 21.5 inch diagonal

Resolutions

1920 x 1080

Display Color

16.7 M

Brightness

250 cd/m2

Contrast ratio

1000 : 1 (Typical)

Active area (mm)

477 x 268

Viewing angle 170° x 160°

LCD MTBF

30,000 hrs

Signal Input

DVI-D / VGA / HDMI

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

125V / 110V /48V / 24V / 12V DC Power   Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- MIL-type or lockable connector
- BNC / RCA + S-Video & Audio

Mechanical
Color  Front Panel : Black
 Rear case   : Dark Grey
Dimension
( W x D x H )
 22.7 x 2.3 x 14.5 inch /
 578 x 59 x 369 mm
Product Weight  5 kgs ( 11 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant, TAA Compliant

  ID-E21Aw

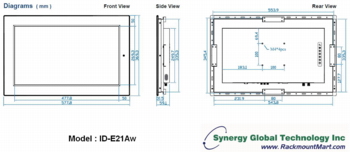

   Dimension



*click for enlarged view

                      Download Product Sheet
                      Download User Manual
                      Download Mounting Guide




         Free Ground Shipping * Click for details

Gallery












Availability: Usually ships in 2-3 business days

ID-E21Aw $655.00
