ID-32Aw-LED  6mm Aluminum Front Bezel 32 " LG Panel Mount Wide Screen  Industrial  Monitor





Part #   ID-32Aw-LED


                       6mm Aluminum Front Bezel 32 " LG Panel Mount Wide Screen  Industrial  Monitor
                                                  LCD Panel

LCD Type

LG Grade A Industrial TFT LCD Panel

Display Size

32" Widescreen TFT

Active area

698 x 393 mm

Resolutions

1920 x 1080

Display Color

16.7M color

Brightness

360 cd/m2

Contrast ratio

1400 : 1 (Typical)

Backlight LED

Viewing angle

178° x 178°

LCD MTBF

50,000 hrs

Signal Input

HDMI / DVI-D / VGA / S-Video / RCA

Power Supply

Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption: Max. 200 Watt, Standby 20 Watt

Mounting

Wall-mount / VESA mount
                                                  OPTIONS



- NEMA4 / IP65 on front of LCD display
-TV turner [ Signal Input : NTSC, PAL (I, B, G, H, M, D, N),
   SECAM (D, K, L, B, G)  / Connector : RF
] with Remote
  controller
                                  Mechanical
Color  Black
Dimension
( W x D x H )
 802 x 83 x 496 mm /
 31.6 x 3.3 x 19.5 inch
Product Weight  ID-32Aw : 20.9 kg ( 46 lbs )
 ID-32AwN : 23.1 kg ( 50.8 lbs )
                                  Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Regulatory  Safety : FCC & CE Certified
 Environmental: RoHS2 & REACH compliant
                             Package Content

Package Content

32" widescreen LCD display X 1
6ft VGA cable X 1
Power cord X 1
Remote controller X 1
Wall-mount bracket set X 1

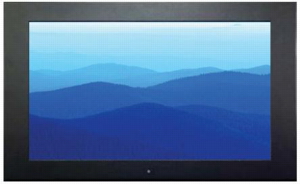

.   Front View of  ID-32Aw

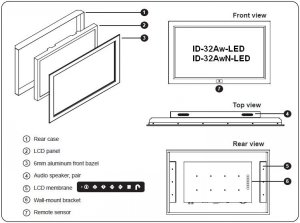

  Construction

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

 Download Product Sheet
 Download Mounting Guide


   DISPLAY BENEFITS :
  • 32" widescreen LCD supports Full HD 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • Projected Capacitive ( 10-point touch )
    Capacitive ( single point touch )
  • Protective toughened glass
  • MIL-type or lockable connector
  • 48V, 24V or 12VDC power
  • TV - Analog

   Basic I/O






ID-32Aw-LED
