Click to enlargeID-H19Aw-LED    19" High Brightness  Panel Mount Monitor





Part #  ID-H19Aw-LED


                                              6mm Aluminum Front Bezel with NEMA4 / IP65 front protection
                               19" Widescreen High Brightness LCD w/ LED Backlight Panel Mount Monitor

LCD w/ LED Backlight Panel
LCD Type

Widescreen TFT LCD Panel

Backlight

LED

Display Size

19 inch diagonal

Resolutions

1440 x 900

Display Color

16.7 M color

Brightness

1000 cd/m2

Contrast ratio

1000 : 1 (Typical)

Active area (mm)

408 x 255

Viewing angle 160° x 160°

LCD MTBF

50,000 hrs

Signal Input

DVI-D, VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 84 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional DC Power

48V / 24V DC Power         Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- HDMI, DVI-D, S-Video + BNC & Audio
- 3G / HD / SD-SDI Broadcast-grade input
- MIL-type or lockable connector
- Auto / switch dimming
- TV - PAL or NTSC

Mechanical
Dimension  20 x 2.6 x 13.3 inch /
 508.5 x 65.6 x 338.1 mm ( WxDxH )
Product Weight  5 kgs ( 11 lbs )
Casing Color  Black front panel, Dark grey rear case
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE
Package Content

Package Content

19" High Brightness LCD display x 1, 6ft VGA Cable x 1, Power adapter x1, Power cord x 1, Mounting hardware x 1 pack
  Front View of  ID-H19Aw-LED

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

                    Download Product Sheet
                    Download User Manual
                    Download Mounting Guide
                        (VESA Mount / Wall Mount)


   DISPLAY BENEFITS :
  • 19" widescreen LCD with high brightness 1000 cd/m²
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • 6mm aluminum front bezel with protective glass
   0PTIONS :
  • HDMI, DVI-D, S-Video + BNC & Audio
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • HW19" Touchscreen : Capacitive, Resistive, Multi-touch
  • 48V or 24VDC Power
  • MIL-type or lockable connector
  • Auto / switch dimming
  • TV - PAL or NTSC

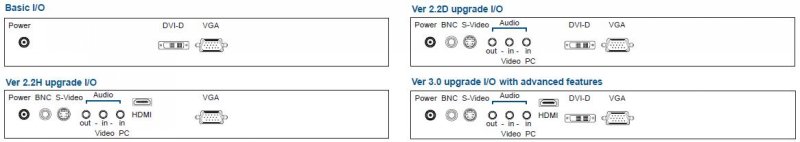

     Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-H19Aw-LED
Price : $1356.54
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" Widescreen High Brightness LCD w/ LED Backlight Panel Mount Monitor with DVI-D + VGA input
ID-H19AW-BNC-LED
Price : $1494.54
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" Widescreen High Brightness LCD w/ LED Backlight Panel Mount Monitor,
with VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-H19AW-AV-LED
Price : $1494.54
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" Widescreen High Brightness LCD w/ LED Backlight Panel Mount Monitor,
with VGA + DVI-D + BNC with RCA adapter + S-Video + Audio + remote controller
ID-H19AW-HDMI-LED
Price : $1494.54
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" Widescreen High Brightness LCD w/ LED Backlight Panel Mount Monitor,
with VGA + HDMI with speakers + BNC +S-Video + Audio + remote controller
Optional Video/Audio Inputs
-SDI
Price : $469.2
With 3G / HD / SD-SDI Bro VGA + DVI-D + HDMI w/ speaker + BNC + S-Video + Audio + remote controller + SDI Download Spec Sheet
-MC
Price : $89.7
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $262.2
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $262.2
Add Resistive Touch Screen with USB Controller
-TCS
Price : $441.6
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $441.6
Add Capacitive Touch Screen with USB Controller
Optional Dimming
-DA
Price : $96.6
Add Auto Dimming
-DS
Price : $96.6
Add Dimming switch
Optional DC power
-DC12
Price : $262
Add 12V DC Power
-DC24
Price : $262
Add 24V DC Power
-DC48
Price : $262
Add 48V DC Power
Optional Connectors
-MD
Price : $89.7
Add MIL-type DC Power lockable jack, male
-MA
Price : $138
Add MIL-type VGA lockable jack, male
-LD
Price : $34.5
Add Lockable DC Power jack, male
-LS
Price : $34.5
Add Lockable USB jack






Availability: Usually ships the same business day

ID-H19Aw-LED $1,356.54
Model:

Video / Audio Inputs & Controllers:

Touch Screen:

Dimming:

DC Power:

Connectors :
