ID-10P   10.4" Open Frame Industrial  Display Optional Composite Video / BNC / DC Power / Touch Screen





*** This model is discontinued . Learn more about replacement model ID-10P-LED  ***


                                             10.4" Open Frame TFT LCD Industrial LCD Displays
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

10.4 inch diagonal (211.2H x 158.4V)

Resolutions

800 x 600

Display Color

262,144 color

Brightness

230 cd/m2

Contrast ratio

500 : 1 (Typical)

Response Time

Tr=10 / Tf=25ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

70 / 70 / 60 / 60 (L / R / U / D)  or
140 / 120

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

External type,110 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input

  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : RCA-BNC adapter  Details
  • Optional Touch Screen

                     Details

    Optional DC Power

     48V / 24V / 12V DC Power    Details
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
    DC power Output : DC 12V
    Voltage Accuracy
    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection

                                      Mechanical

    Material

      1.2mm Steel

    Dimension  281.7 x54.3 x 219 mm (WxDxH)
    Product Weight  2 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5~90%, non condensing
    Shock  10G peak acceleration
     (11ms duration)
    Vibration  5~500Hz, 1G RMS random vibration
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    LCD Monitor x 1,VGA Cable (Male to Male) x 1,   DC 12V adapter  x1, Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1

      Front View of  ID-10P



      Construction

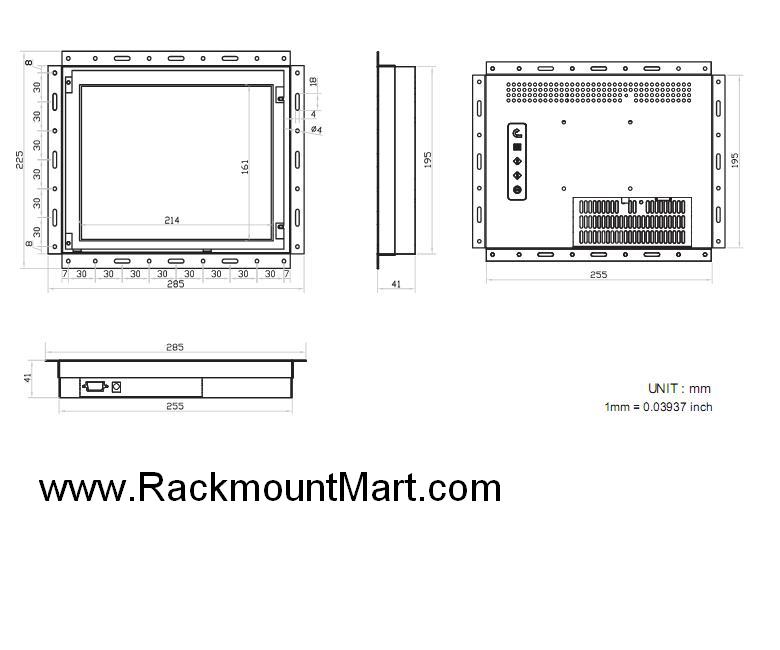

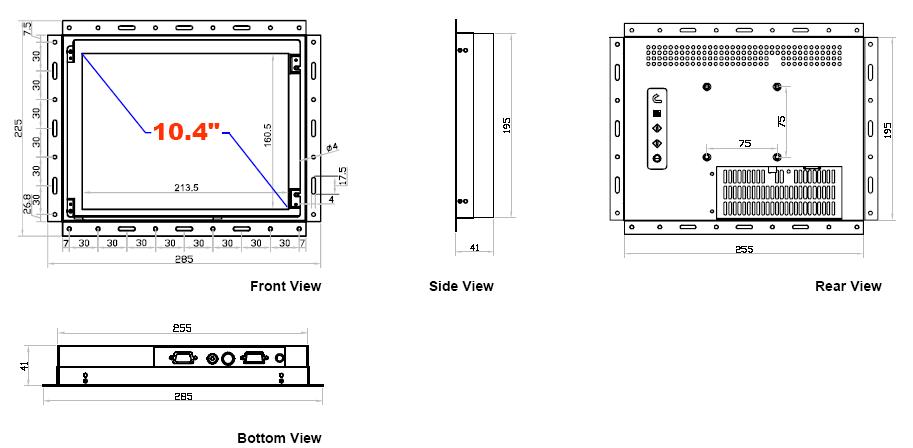

       Front / Rear / Top / Side Views & Dimensions

          *click on above picture for enlarged view







    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7


      More photos (click to enlarge )


    FEATURES :
    • 10.4" industrial TFT LCD panel support 800 x 600 pixels
    • 230 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Low power consumption
    • Modularized design
    • Optional video input (S-Video & RCA input)
    • Optional with touchscreen and DC power input
    • Low power consumption
    • Universal open frame kits
    • Universal-mount, OEM mounting

    APPLICATIONS :

    • Industrial automation LCD panel
    • Embedded display Unit
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet


    Ordering information :

    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-10P
    Standard Version  - 10.4" Open Frame TFT LCD Display
    ID-10PAV
    Version w/option  - 10.4" Open Frame TFT LCD Display + S-Video &Composite video(RCA)
    ID-10PBNC
    Version w/option  - 10.4" Open Frame TFT LCD Display + S-Video &Composite video(BNC)
    ID-10PDC12
    Version w/option  - 10.4" Open Frame TFT LCD Display + 12v DC Power
    ID-10PDC24
    Version w/option  - 10.4" Open Frame TFT LCD Display + 24v DC Power
    ID-10PDC48
    Version w/option  - 10.4" Open Frame TFT LCD Display + 48v DC Power
    ID-10PTRS
    Version w/option  - 10.4" Open Frame TFT LCD Display +
                               Resistive Touch screen & serial controller
    ID-10PTRB
    Version w/option  - 10.4" Open Frame TFT LCD Display +
                               Resistive Touch screen & USB controller
    ID-10PTCS
    Version w/option  - 10.4" Open Frame TFT LCD Display +
                              Capacitive Touch screen & serial controller
    ID-10PTCB
    Version w/option  - 10.4" Open Frame TFT LCD Display +
                               Capacitive Touch screen & USB controller
    -AV
    Add Composite video(RCA) + S-video
    -BNC
    Add Composite video(BNC) + S-video
    -TV
    Add TV tuner with remote controller
    -12VDC
    Add 12V DC Power
    -24VDC
    Add 24V DC Power
    -48VDC
    Add 48V DC Power
    -SPK
    Add Audio input
    -RM
    Add Remote controller




    ID-10P
