Click to enlargeLCD1U15-18 Scalable 1U 15" LCD KVM Console , TAA Compliant.





Scalable 1U Rackmount  15" LCD KVM Console :
Part # LCD1U15-18

                          NOVA 1U Sacalable Rackmount KVM console with 15" LCD monitor , TAA Compliant
 Optional Modular KVM / DVI / HDMI / USB Hub / SUN function key / Touch screen / Audio Function / Cherry Trackball / DC Power
 Scalable 1U Rackmount KVM Console LCD1U15-18
 w/ single port KVM. Click image for enlarged view.

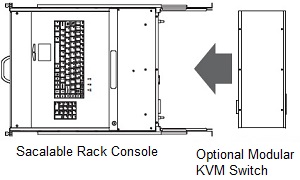

    		Supplied as a 1U Rack console with single port KVM, its scalable design enables you to easily scale a solution with modular KVMs by simply adding KVM Ports with few screws yet still maintains a low profile 1RU console.

Optional 18 models of KVM switches ( 8/ 16 / 32 ports ) are available. You can expand connections up to 8 levels.

Benefits
  • Easy Maintenance :
    If malfunction is caused by the optional modular KVM
    switch , you can simply replace the detachable modular KVM switch and / or return the defective modular KVM switch for repair. No need to remove the whole console from your system.
  • Allows future expansion with ease and at a much lower cost as you only need to add / or replace the modular KVM module to the Scalable LCD console. This also helps to keep our planet green because you can keep using the same LCD console.

    • FEATURES :
    • LCD screen protected by tempered glass
    • Supports SUN native solution, optional SUN Hot Keys available
    • OSD function for LCD display and KVM swtich
    • Front key lock for extra security
    • Slide-in rail design. Easy to install by just one person
    • Easy to add modular KVM module and  DUAL IP CAT5 KVM module
    • Monitor Auto Shut off in closed position

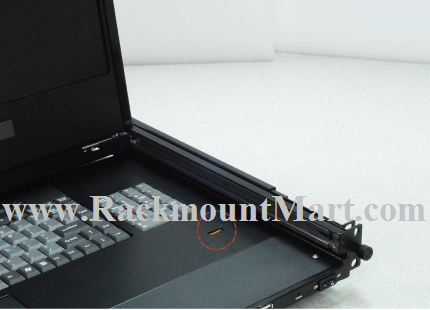

    • Optional Modular KVM, Fingerprint Scanner , DVI, HDMI, USB 2-port Hub at front panel , Touch screen, Audio function, DC Power, Cherry Trackball keyboard
    • TAA Compliant



    Scalable 1U Rackmount KVM Console
    w/ a detachable 16 port CAT 5 KVM module

    LCD1U15-18 w/ single port KVM. Click image for enlarged view.



    Easy steps to add a Modular 8 port combo KVM to LCD1U15-18 w/ single port KVM. Click image for enlarged view.

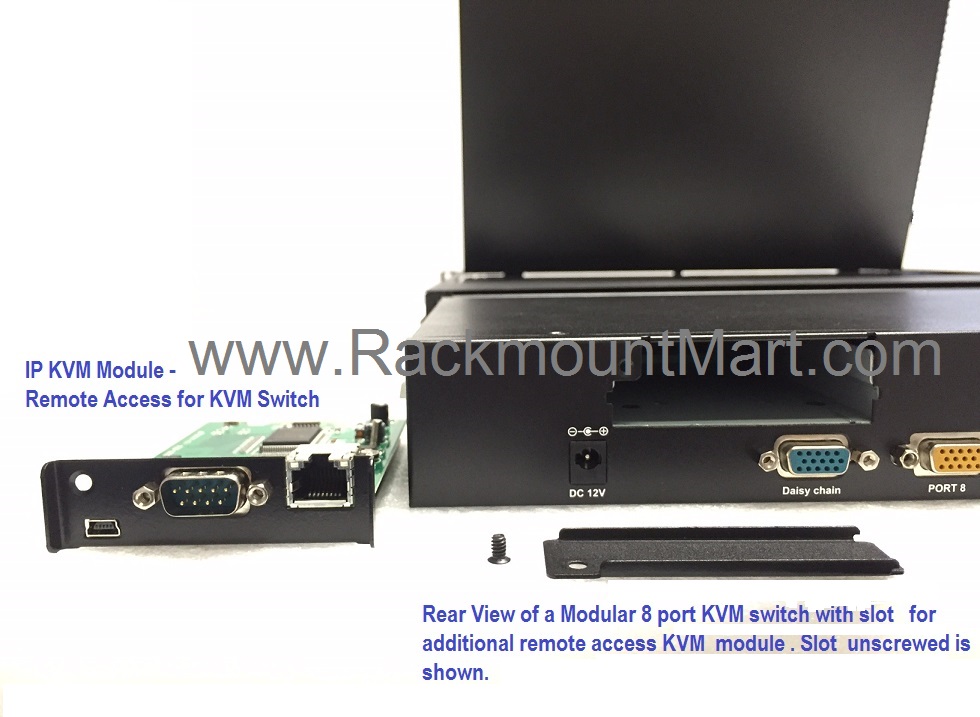

    Easy steps to add an IP KVM module to LCD1U15-18 w/ modular 8 port combo KVM. Click image for enlarged view.



    LCD Screen

    LCD Type

    Active Matrix TFT LCD Panel

    Display Size

    15 inch

    Resolutions

    Max. up to 1024 x 768 (XGA)

    Backlight

    Dual Lamps for Back Light

    Contrast ratio

    550 : 1

    Brightness

    White 250 cd/ m2

    Panel color

    16M Colors (6-bit with FRC)

    Response Time

    Rising Time 2 ms, Decay Time 6 ms

    Pixel pitch

    0.297 mm x 0.297 mm

    Viewing Angle

    Right-Left view 130°(Typ)
    Up-Down View 100°(Typ)

    Video Type

    Standard VGA , Optional DVI-D , HDMI

    Hardware
    Operating Systems Dos, Unix, Linux, OSX, Windows XP, 7, 8,
    Server 2012 R2

    Keyboard

    106 key keyboard with touch pad ,

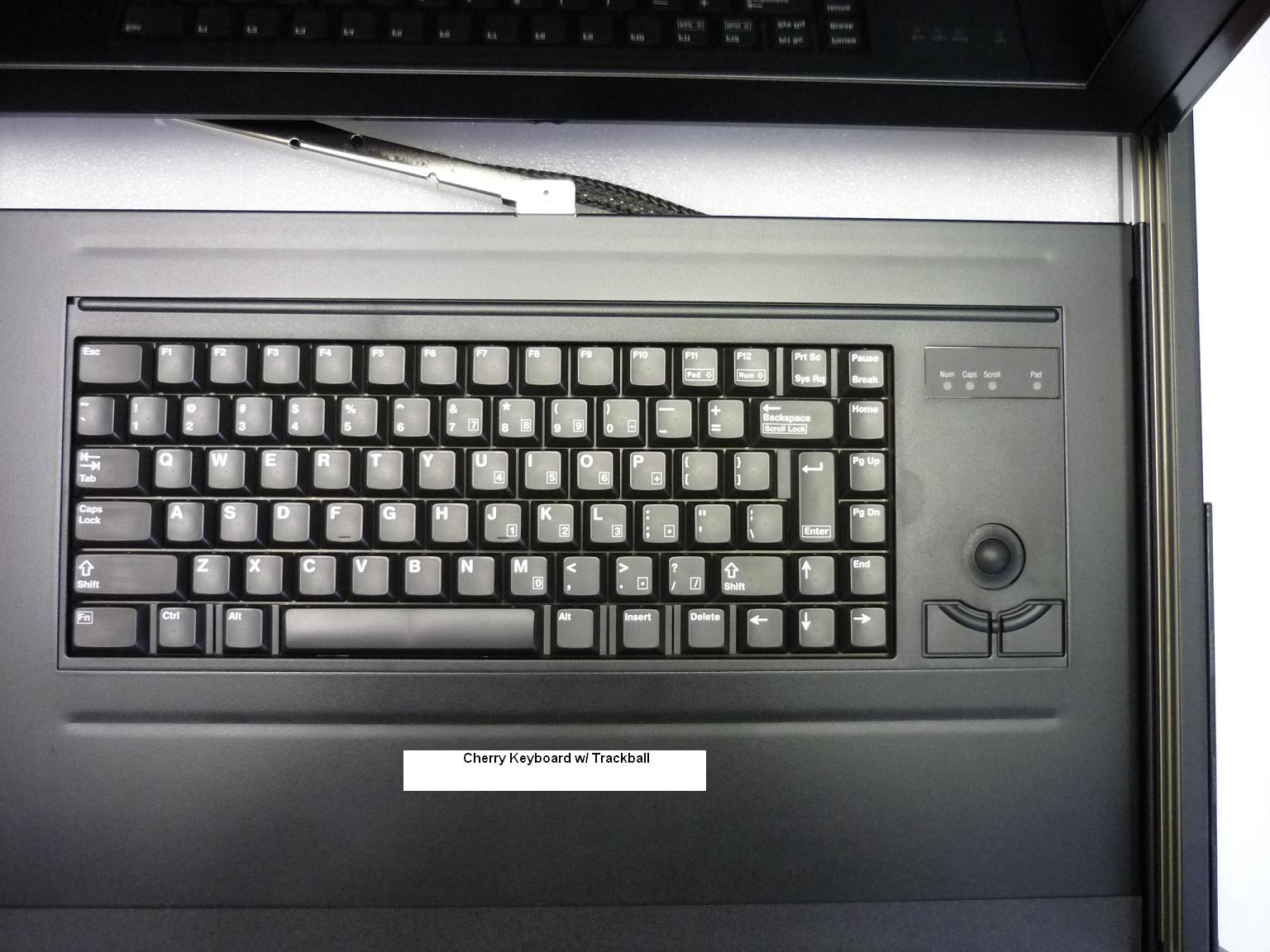

    Optional Cherry trackball keyboard

    Keylock

    Yes

    KVM

    Standard : Single Port Combo PS/2 & USB KVM ,
    Optional :
    Modular USB PS/2 Combo KVM - 8 Port/16 port,
    Modular CAT 5 KVM - 8 Port / 16 Port / 32 Port ,
    Modular USB Hub KVM - 8 port / 16 port,
    Modular Dual console CAT 5 Remote Access ,
    Modular Dual console IP Remote Access

    Port Selection Hotkeys and On Screen Display ( OSD )
    PC Interface PS2 & USB
    Connectors 1 x VGA (15 pin; High Density D-Sub) Female ,
    2 x PS/2 (6 pin; Mini-DIN) Female, 1 x USB ,
    1 x PS/2-USB switch ,1 x DC Jack ,1 x RR4 36 pin for modular KVM switch
    Chassis Type Heavy Duty Steel
    Power
    Sync 45 ~ 80 KHz
    Power Source Auto-sensing 100 to 240V AC
    Power Consumption 10.12W for LCD panel
    Environmental
    Temperature 0 to 50 Degree Celsius / 32°~ 122°F (Operation)
    -20 to 60 Degree Celsius / -4°~140°F (Storage)
    Humidity 10 ~ 90% RH

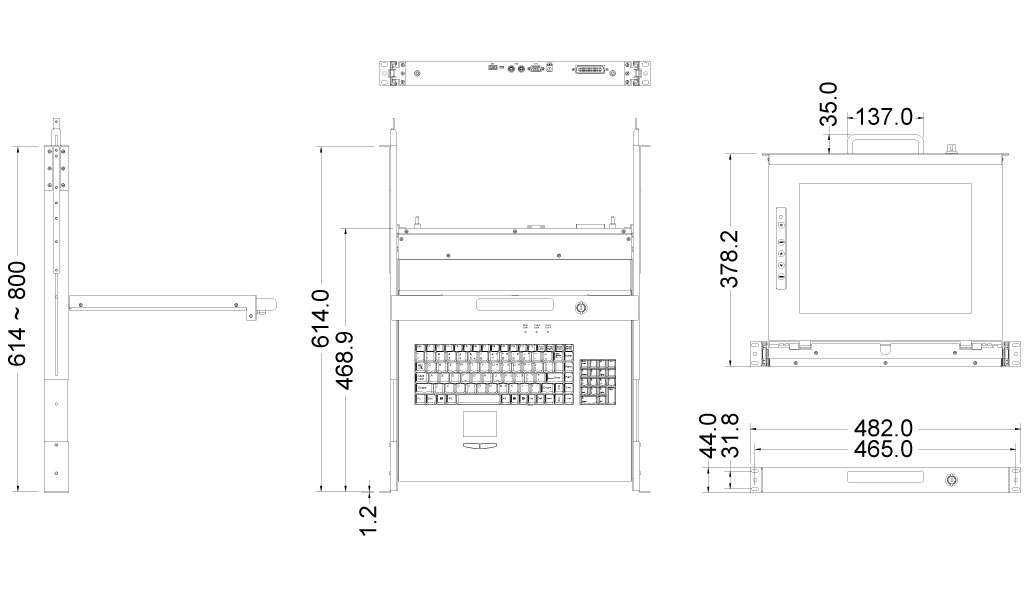

        Dimension


    *click on picture for enlarged view

      Product Sheet
    Product Sheet
      User Manual
    LCD1U15-18 Modular Combo KVM
    Modular CAT 5 KVM Modular USB Hub KVM
    Add-On CAT5 Module Add-On IP Module
      Installation Guide
    Rack Console Modular KVM Switch


    Mechanical

    Product Height

    		1.73 " / 44 mm

    Product Width

    		17.6 " / 447.5 mm

    Depth of Chassis

    		18.5 " / 468.9 mm
    ( Single port KVM only, wihtout modular KVM )

    Length of Rails

    		21.17 " / 614 mm
    Net Weight 26.5 lbs / 12 kgs
    ( Single port KVM only, wihtout modular KVM )
    Regulatory Approval / Declaration
      CE / FCC, UL / CUL / C-Tick, GOST, RoHS,
    TAA Compliant
    ORDERING INFORMATION:

    Single Port KVM
      Part # Description
     LCD1U15-18
     Price:$867.40    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA,
    with Combo Single port PS2 / USB KVM , 1 set 6-ft PS2 KVM cable & USB cable, Black . RoHS Compliant & TAA Compliant.
     LCD1U15-18 w/ Modular USB PS/2 Combo KVM
      Part # Description
     LCD1U15-18-8KVM-n-co
     Price:$1119.10    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular Combo 8 port PS2 / USB KVM and 8 pcs of 6-ft Combo KVM cable     . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
     LCD1U15-18-16KVM-n-co
     Price:$1211.40    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular Combo 16 port PS2 / USB KVM and 8 pcs of 6-ft Combo KVM cable     . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
     LCD1U15-18 w/ Modular CAT 5 KVM
      Part # Description
     LCD1U15-18-U8KVM-n-co
     Price:$1165.60    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 8 port CAT5 KVM     . Black, RoHS Compliant & TAA Compliant.
    (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
     LCD1U15-18-U16KVM-n-co
     Price:$1364.40    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 16 port CAT5 KVM     . Black, RoHS Compliant & TAA Compliant.
    (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
     LCD1U15-18-U32KVM-n-co
     Price:$1563.20    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 32 port CAT5 KVM     . Black, RoHS Compliant & TAA Compliant.
    (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
     LCD1U15-18 w/ Modular USB HUB KVM
      Part # Description
     LCD1U15-18-H8KVM-n-co
    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB Hub KVM - 8 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel.     Black, RoHS Compliant & TAA Compliant.
     LCD1U15-18-H16KVM-n-co
    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB Hub KVM - 16 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel.     Black, RoHS Compliant & TAA Compliant.
    Dual Consoles -
    LCD1U15-18 w/ Modular USB PS/2 Combo KVM & CAT 5 KVM Remote Access (Local + CAT 5 remote consoles)
      Part # Description
     LCD1U15-18-8KVM2-n-co
     Price:$1425.00    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB PS/2 Combo 8 port KVM & CAT 5 KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
     LCD1U15-18-16KVM2-n-co
     Price:$1517.30    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB PS/2 Combo 16 port KVM & CAT 5 KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
    Dual Consoles -
    LCD1U15-18 w/ Modular CAT 5 KVM & CAT 5 KVM Remote Access (Local + CAT 5 remote consoles)
      Part # Description
     LCD1U15-18-U8KVM2-n-co
     Price:$1471.50    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 8 port CAT5 KVM & CAT 5 KVM Remote Access module. Black, RoHS Compliant & TAA Compliant.
    (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
     LCD1U15-18-U16KVM2-n-co
     Price:$1670.30    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 16 port CAT5 KVM & CAT 5 KVM Remote Access module. Black, RoHS Compliant & TAA Compliant.
    (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
     LCD1U15-18-U32KVM2-n-co
     Price:$1869.10    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 32 port CAT5 KVM & CAT 5 KVM Remote Access module. Black, RoHS Compliant & TAA Compliant.
    (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
    Dual Consoles -
    LCD1U15-18 w/ Modular USB Hub KVM & CAT 5 KVM Remote Access (Local + CAT 5 remote consoles)
      Part # Description
     LCD1U15-18-H8KVM2-n-co
         		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB Hub KVM ( 8 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & CAT 5 KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
     LCD1U15-18-H16KVM2-n-co
         		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB Hub KVM ( 16 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & CAT 5 KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
    Dual Consoles -
    LCD1U15-18 w/ Modular USB PS/2 Combo KVM & IP KVM Remote Access (Local + IP KVM remote consoles)
      Part # Description
     LCD1U15-18-8KVM2IP-n-co
     Price:$1386.60    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB PS/2 Combo 8 port KVM & IP KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
     LCD1U15-18-16KVM2IP-n-co
     Price:$1478.90    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB PS/2 Combo 16 port KVM & IP KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
    Dual Consoles -
    LCD1U15-18 w/ Modular CAT5 KVM & IP KVM Remote Access (Local + IP KVM remote consoles)
      Part # Description
     LCD1U15-18-U8KVM2IP-n-co
     Price:$1433.10    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 8 port CAT5 KVM & IP KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
     LCD1U15-18-U16KVM2IP-n-co
     Price:$1631.90    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 16 port CAT5 KVM & IP KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
     LCD1U15-18-U32KVM2IP-n-co
     Price:$1830.70    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular 32 port CAT5 KVM & IP KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
    Dual Consoles -
    LCD1U15-18 w/ Modular USB Hub KVM & IP KVM Remote Access (Local + IP KVM remote consoles)
      Part # Description
     LCD1U15-18-H8KVM2IP-n-co
    		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB Hub KVM ( 8 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & IP KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
     LCD1U15-18-H16KVM2IP-n-co
         		 Scalable 1U Rackmount 15" LCD Monitor with touchpad Keyboard Drawer, VGA
    with Modular USB Hub KVM ( 16 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & IP KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
      Options
      Part # Description
     -DVI
     Price:$50    		 Add 1 x DVI-D Input
     -HDMI
     Price:$60    		 Add 1 x HDMI Input
     -FS
     Price:$80    		 Add Fingerprint Scanner
     -UH
     Price:$60    		 Add USB 2-Port Hub to front panel
     -S
     Price:$50    		 Add SUN Hot Keys to Keyboard
     -C
     Price:$150    		 Add Cherry Trackball Keyboard
     -TRB
     Price:$170.00    		 Add Touch screen with USB connector ( No change in Rack Unit. Still maintains at 1 U .)
    -DC12
     Price:$100.00    		 Add 12V DC power supply        DC sheet
    -DC24
     Price:$100.00    		 Add 24V DC power supply        DC sheet
    -DC48
     Price:$100.00    		 Add 48V DC power supply        DC sheet
    -DC125
    Call for price    		 Add 125V DC power supply
     LCD-A2001
     Price:$56    		 Add VGA-USB dongle
     LCD-A2002
     Price:$56    		 Add VGA-PS2 dongle
     LCD-B2001
     Call for price    		 Add DVI-USB donlgle
     LCD-B2002
     Call for price    		 Add DVI-PS2 donlgle
     LCD-A4001
     Price:$13    		 Add Extra 6 ft USB PS/2 Combo KVM Cable
    ( For use with multiple port model only. Not for single port model )
     LCD-A4011
     Price:$13    		 Add Extra 6 ft USB KVM Cable
    ( For use with multiple port model only. Not for single port model )
     KVM cable with longer length
     Call for more details
     Mounting Rails with different
     length
     Call for more details










    Availability: Usually ships the next business day

    LCD1U15-18$867.40

    With Single-Port USB PS/2 Combo KVM :

    With Modular Multi-Port USB PS/2 Combo KVM :

    With Modular CAT 5 KVM :

    Dual Consoles - With Modular Multi-Port USB PS/2 Combo KVM *AND* CAT 5 Module :

    Dual Consoles - With Modular CAT 5 KVM *AND* CAT 5 Module :

    Dual Consoles - With Modular Multi-Port USB PS/2 Combo KVM *AND* IP Module :

    Dual Consoles - With Modular CAT 5 KVM *AND* IP Module :

    Optional features

    -DVI:

    -HDMI":

    -FS ( Fringerprint Scanner):

    -UH ( USB 2-port Hub at front ) :

    -S ( SUN Hot Key ):

    -C ( Cherry Trackball ):

    -TRB (Touch Screen with USB connector ):

    -DC ( DC Power ):






    Availability: Usually ships the next business day

    Optional Dongle & Cable


    Dongle and Extra Cable$56.00
    Select -- :
