Scalable 1U Rackmount 19" Wide Screen LCD KVM Console :
Part # LCD1U19-26

NOVA 1U Sacalable Rackmount KVM console with 19" Wide Screen LCD monitor , TAA Compliant
Optional Modular KVM / DVI / HDMI / USB Hub / SUN function key / Audio Function / Cherry Trackball / DC Power

Scalable 1U Rackmount KVM Console LCD1U19-26
w/ single port KVM. Click image for enlarged view.

Supplied as a 1U Rack console with single port KVM, its scalable design enables you to easily scale a solution with modular KVMs by simply adding KVM Ports with few screws yet still maintains a low profile 1RU console.

Optional 18 models of KVM switches ( 8/ 16 / 32 ports ) are available. You can expand connections up to 8 levels.

Benefits

Easy Maintenance :
If malfunction is caused by the optional modular KVM
switch , you can simply replace the detachable modular KVM switch and / or return the defective modular KVM switch for repair. No need to remove the whole console from your system.

Allows future expansion with ease and at a much lower cost as you only need to add / or replace the modular KVM module to the Scalable LCD console. This also helps to keep our planet green because you can keep using the same LCD console.

FEATURES :

LCD screen protected by tempered glass
Supports SUN native solution, optional SUN Hot Keys available
OSD function for LCD display and KVM swtich
Front key lock for extra security
Slide-in rail design. Easy to install by just one person

Easy to add modular KVM module and DUAL IP CAT5 KVM module
Monitor Auto Shut off in closed position
Optional Modular KVM, Fingerprint Scanner , DVI, HDMI, USB 2-port Hub at front panel , Audio function, DC Power, Cherry Trackball keyboard
TAA Compliant

Scalable 1U Rackmount KVM Console
w/ a detachable 16 port CAT 5 KVM module

LCD1U19-26 w/ single port KVM. Click image for enlarged view.

Easy steps to add a Modular 8 port combo KVM to LCD1U19-26 w/ single port KVM. Click image for enlarged view.

Easy steps to add an IP KVM module to LCD1U19-26/ modular 8 port combo KVM. Click image for enlarged view.

LCD Screen
LCD Type	Active Matrix TFT LCD Panel
Display Size	19 inch , Wide Screen
Resolutions	Max. up to 1440 x 900 (WXGA)
Backlight	Dual Lamps for Back Light
Contrast ratio	700 : 1
Brightness	White 200 cd/ m2
Panel color	16.7M Colors
Response Time	Rising Time 3.6 ms, Decay Time1.4 ms
Pixel pitch	0.283 mm x 0.283 mm
Viewing Angle (CR>10)	Right-Left view 90° (Typ) Up-Down View 65° (Typ)
Video Type	Standard VGA , Optional DVI-D , HDMI
Hardware
Operating Systems	Dos, Unix, Linux, OSX, Windows XP, 7, 8, Server 2012 R2
Keyboard	106 key keyboard with touch pad , Optional Cherry trackball keyboard
Keylock	Yes
KVM	Standard : Single Port Combo PS/2 & USB KVM , Optional : Modular USB PS/2 Combo KVM - 8 /16 port, Modular CAT 5 KVM - 8 / 16 / 32 Port , Modular USB Hub KVM - 8 / 16 port, Modular Dual console CAT 5 Remote Access , Modular Dual console IP Remote Access
Port Selection	Hotkeys and On Screen Display ( OSD )
PC Interface	PS2 & USB
Connectors	1 x VGA (15 pin; High Density D-Sub) Female , 2 x PS/2 (6 pin; Mini-DIN) Female, 1 x USB , 1 x PS/2-USB switch ,1 x DC Jack ,1 x RR4 36 pin for modular KVM switch
Chassis Type	Heavy Duty Steel
Power
Sync	45 ~ 80 KHz
Power Source	Auto-sensing 100 to 240V AC
Power Consumption	15.5W for LCD panel
Environmental
Temperature	0 to 50 Degree Celsius / 32°~ 122°F (Operation) -20 to 60 Degree Celsius / -4°~140°F (Storage)
Humidity	10 ~ 90% RH

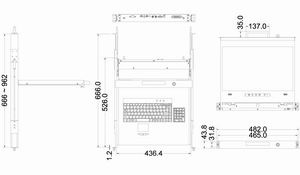

Dimension

*click on image for enlarged view

Product Sheet
	Product Sheet
User Manual
LCD1U19-26	Modular Combo KVM
Modular CAT 5 KVM	Modular USB Hub KVM
Add-On CAT5 Module	Add-On IP Module
Installation Guide
Rack Console	Modular KVM Switch

Mechanical
Product Height	1.7 " / 43.8 mm
Product Width	17.2 " / 436.8 mm
Depth of Chassis	20.8" / 526.0 mm ( Single port KVM only, wihtout modular KVM )
Length of Rails	26.22 " / 666 mm
Net Weight	30.09 lbs / 14 kgs ( Single port KVM only, wihtout modular KVM )
Regulatory Approval / Declaration
	RoHS Compliant TAA Compliant

ORDERING INFORMATION

Single Port KVM
Part #	Description
LCD1U19-26 Price:$1030.70	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA, with Combo Single port PS2 / USB KVM , 1 set 6-ft PS2 KVM cable & USB cable, Black . RoHS Compliant & TAA Compliant.
LCD1U19-26 w/ Modular USB PS/2 Combo KVM
Part #	Description
LCD1U19-26-8KVM-n-co Price:$1282.40	Scalable 1U Rackmount 19" Wide ScreenLCD Monitor with touchpad Keyboard Drawer, VGA with Modular Combo 8 port PS2 / USB KVM and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
LCD1U19-26-16KVM-n-co Price:$1374.70	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular Combo 16 port PS2 / USB KVM and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
LCD1U19-26 w/ Modular CAT 5 KVM
Part #	Description
LCD1U19-26-U8KVM-n-co Price:$1328.90	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 8 port CAT5 KVM . Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
LCD1U19-26-U16KVM-n-co Price:$1527.70	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 16 port CAT5 KVM . Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
LCD1U19-26-U32KVM-n-co Price:$1726.50	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 32 port CAT5 KVM . Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
LCD1U19-26 w/ Modular USB Hub KVM
Part #	Description
LCD1U19-26-H8KVM-n-co	Scalable 1U Rackmount 19" Wide ScreenLCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB Hub KVM - 8 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel. Black, RoHS Compliant & TAA Compliant.
LCD1U19-26-H16KVM-n-co	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB Hub KVM - 16 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel. Black, RoHS Compliant & TAA Compliant.
Dual Consoles - LCD1U19-26 w/ Modular USB PS/2 Combo KVM & CAT 5 KVM Remote Access (Local + CAT 5 remote consoles)
Part #	Description
LCD1U19-26-8KVM2-n-co Price:$1588.30	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB PS/2 Combo 8 port KVM & CAT 5 KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
LCD1U19-26-16KVM2-n-co Price:$1680.69	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB PS/2 Combo 16 port KVM & CAT 5 KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
Dual Consoles - LCD1U19-26 w/ Modular CAT 5 KVM & CAT 5 KVM Remote Access (Local + CAT 5 remote consoles)
Part #	Description
LCD1U19-26-U8KVM2-n-co Price:$1634.80	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 8 port CAT5 KVM & CAT 5 KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
LCD1U19-26-U16KVM2-n-co Price:$1833.60	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 16 port CAT5 KVM & CAT 5 KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
LCD1U19-26-U32KVM2-n-co Price:$2032.40	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 32 port CAT5 KVM & CAT 5 KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
Dual Consoles - LCD1U19-26 w/ Modular USB Hub KVM & CAT 5 KVM Remote Access (Local + CAT 5 remote consoles)
Part #	Description
LCD1U19-26-H8KVM2-n-co	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA withModular USB Hub KVM ( 8 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & CAT 5 KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
LCD1U19-26-H16KVM2-n-co	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB Hub KVM ( 16 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & CAT 5 KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
Dual Consoles - LCD1U19-26 w/ Modular USB PS/2 Combo KVM & IP KVM Remote Access (Local + IP KVM remote consoles)
Part #	Description
LCD1U19-26-8KVM2IP-n-co Price:$1549.90	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB PS/2 Combo 8 port KVM & IP KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
LCD1U19-26-16KVM2IP-n-co Price:$1642.20	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB PS/2 Combo 16 port KVM & IP KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
Dual Consoles - LCD1U19-26 w/ Modular CAT5 KVM & IP KVM Remote Access (Local + IP KVM remote consoles)
Part #	Description
LCD1U19-26-U8KVM2IP-n-co Price:$1596.40	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 8 port CAT5 KVM & IP KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
LCD1U19-26-U16KVM2IP-n-co Price:$1795.20	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 16 port CAT5 KVM & IP KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
LCD1U19-26-U32KVM2IP-n-co Price:$1994.00	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular 32 port CAT5 KVM & IP KVM Remote Access module. Black, RoHS Compliant & TAA Compliant. (VGA-USB dongles / VGA-PS2 dongles / DVI-USB dongle / DVI-PS2 dongle are optional )
Dual Consoles - LCD1U19-26 w/ Modular USB PS/2 Combo KVM & IP KVM Remote Access (Local + IP KVM remote consoles)
Part #	Description
LCD1U19-26-8KVM2IP-n-co Price:$1549.90	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB PS/2 Combo 8 port KVM & IP KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
LCD1U19-26-16KVM2IP-n-co Price:$1642.20	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB PS/2 Combo 16 port KVM & IP KVM Remote Access module and 8 pcs of 6-ft Combo KVM cable . Black, RoHS Compliant & TAA Compliant. ( Optional 6-ft USB KVM cable is available )
Dual Consoles - LCD1U19-26 w/ Modular USB Hub KVM & IP KVM Remote Access (Local + IP KVM remote consoles)
Part #	Description
LCD1U19-26-H8KVM2IP-n-co	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB Hub KVM ( 8 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & IP KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
LCD1U19-26-H16KVM2IP-n-co	Scalable 1U Rackmount 19" Wide Screen LCD Monitor with touchpad Keyboard Drawer, VGA with Modular USB Hub KVM ( 16 port Combo PS2 / USB KVM & USB 2-port Hub at rear panel ) & IP KVM Remote Access module . Black, RoHS Compliant & TAA Compliant.
Options
Part #	Description
-DVI Price:$50	Add 1 x DVI-D Input
-HDMI Price:$60	Add 1 x HDMI Input
-FS Price:$80	Add Fingerprint Scanner
-UH Price:$60	Add USB 2-Port Hub to front panel
-S Price:$50	Add SUN Hot Keys to Keyboard
-C Price:$150	Add Cherry Trackball Keyboard
-DC12 Price:$100.00	Add 12V DC power supply DC sheet
-DC24 Price:$100.00	Add 24V DC power supply DC sheet
-DC48 Price:$100.00	Add 48V DC power supply DC sheet
-DC125 Call for price	Add 125V DC power supply
LCD-A2001 Price:$56	Add VGA-USB dongle
LCD-A2002 Price:$56	Add VGA-PS2 dongle
LCD-B2001 Call for price	Add DVI-USB donlgle
LCD-B2002 Call for price	Add DVI-PS2 donlgle
LCD-A4001 Price:$13	Add Extra 6 ft USB PS/2 Combo KVM Cable ( For use with multiple port model only. Not for single port model )
LCD-A4011 Price:$13	Add Extra 6 ft USB KVM Cable ( For use with multiple port model only. Not for single port model )
KVM cable with longer length Call for more details
Mounting Rails with different length Call for more details

Availability: Usually ships the next business day

LCD1U19-26

$1,030.70

With Single-Port USB PS/2 Combo KVM :

With Modular Multi-Port USB PS/2 Combo KVM :

With Modular CAT 5 KVM :

Dual Consoles - With Modular Multi-Port USB PS/2 Combo KVM *AND* CAT 5 Module :

Dual Consoles - With Modular CAT 5 KVM *AND* CAT 5 Module :

Dual Consoles - With Modular Multi-Port USB PS/2 Combo KVM *AND* IP Module :

Dual Consoles - With Modular CAT 5 KVM *AND* IP Module :

Optional features

-DVI:

-HDMI":

-FS ( Fringerprint Scanner):

-UH ( USB 2-port Hub at front ) :

-S ( SUN Hot Key ):

-C ( Cherry Trackball ):

-DC ( DC Power ):

Availability: Usually ships the next business day

Optional Dongle & Extra Cable

Dongle & Extra Cable

$56.00

Select -- :
