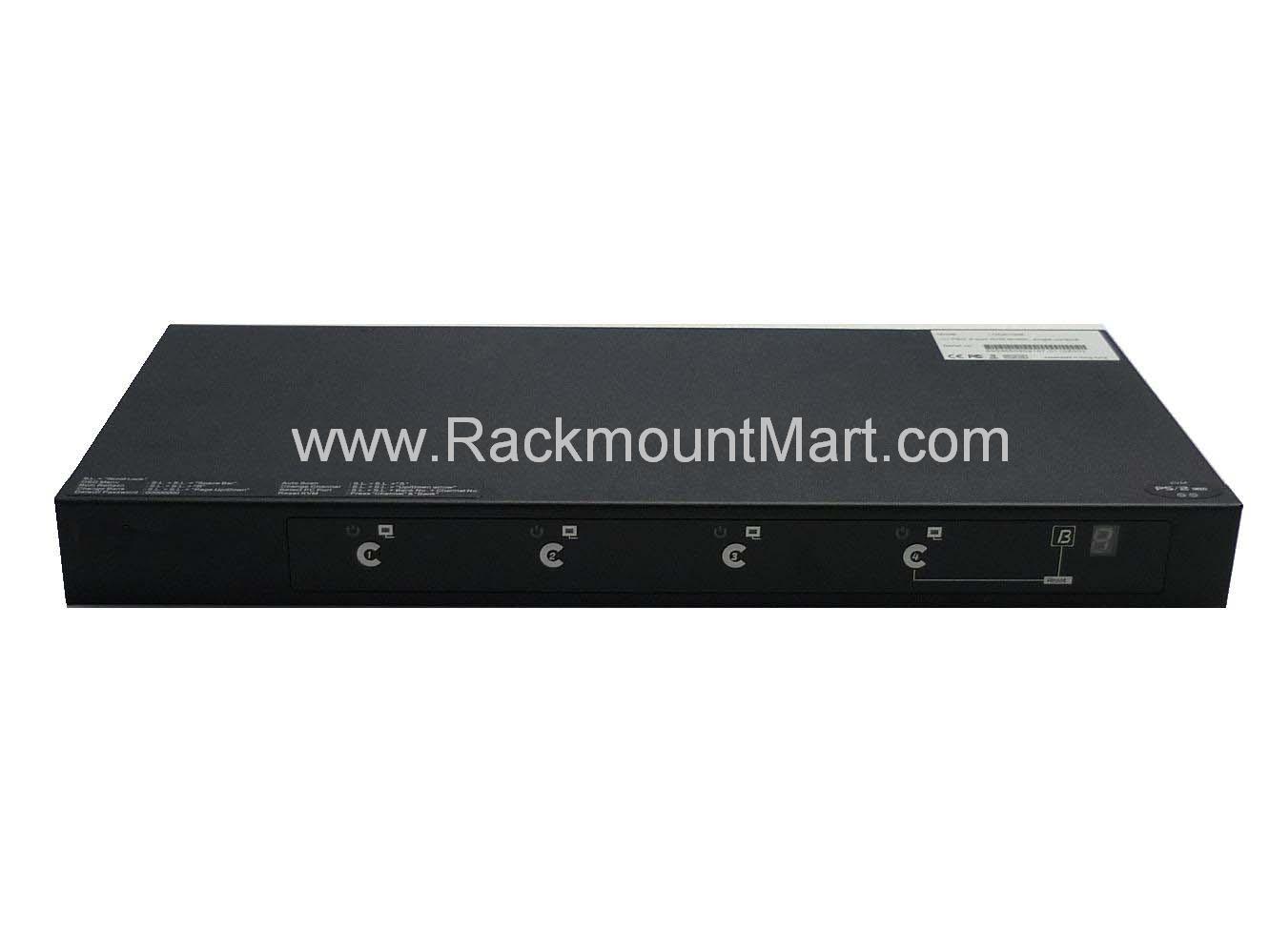

Click on the following photos for more enlarged views :

Features:
• Support multiple keyboard languages.
• LED Display for easy status monitoring.
• Buzzer sound for switching port confirmation.
• Keyboard status restored when switching PCs.
• Provide Console PS/2 to PC serial mouse conversion
• Using Standard PS/2 Keyboard, VGA, PS/2 Mouse cable.
• No Dipswitch setting needed and auto detect cascade bank
• Built-in one extra daisy chain port and no waste any PC port.
• Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
• Support eight characters password protection and search PC server name.
• Support Microsoft IntelliMouse , Microsoft IntelliMouse Explorer, Logitech Net Mouse or the other
fully compatible MS mouse.
• Support DOS, Win3.X, Win95/98/98SE/2000/ME, WinNT, Netware, Unix, Linux
• Hot Plug - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2
KVM switch or PCs.
• No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.
• Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds.

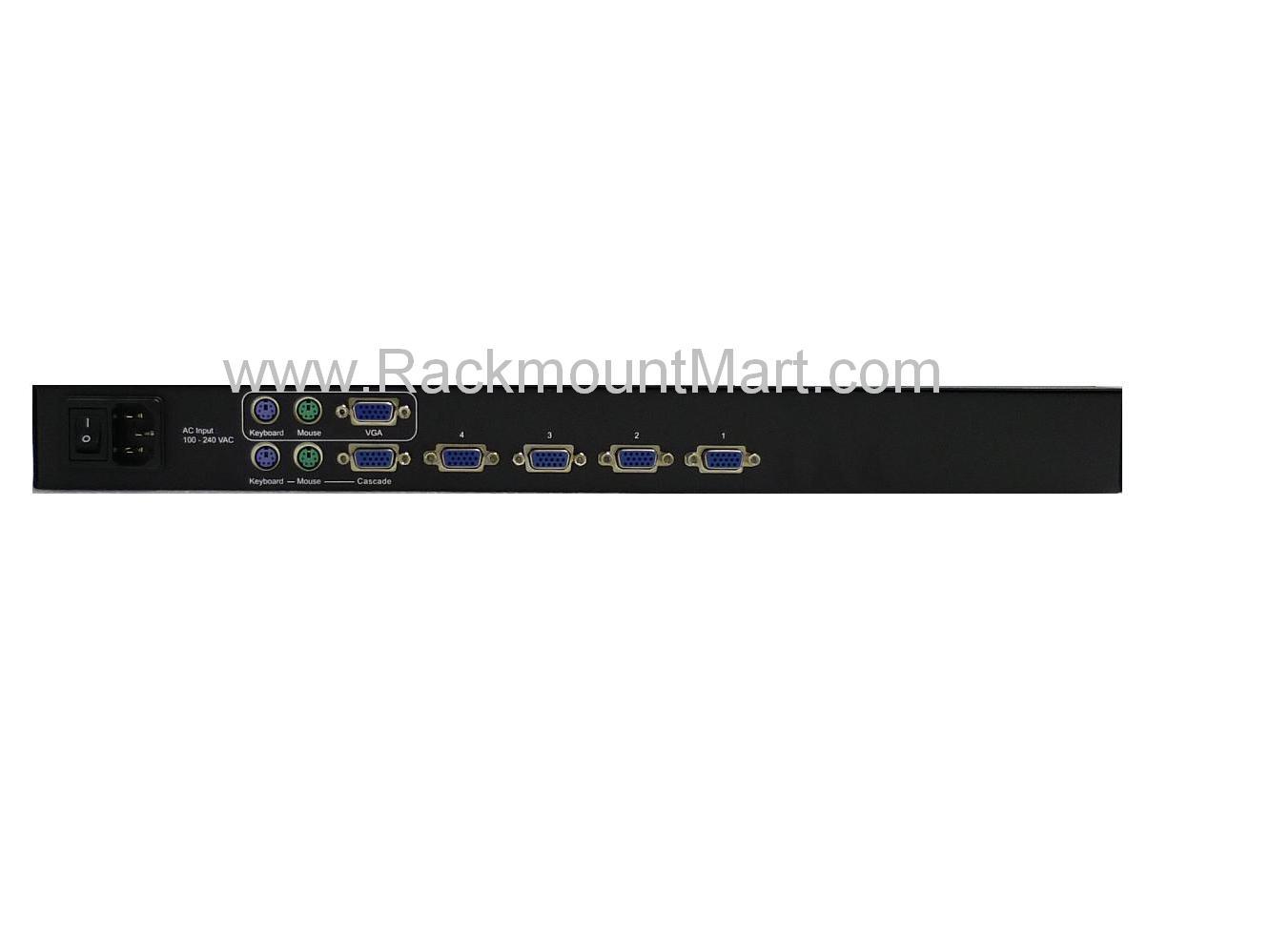

Rear View Diagram :
| Item |
Specification |
| KVM Channel Port |
KVM 4 port swtiches |
| KVM Channel Interface |
HDDB 15 pin |
| PC Computer Interface |
PS/2 Keyboard: Mini Din 6 pin Female
PS/2 Mouse: Mini Din 6 pin Female
VGA : HDDB 15pin Female |
| Cascade Port Connector |
PS/2 Keyboard: Mini Din 6 pin Female
PS/2 Mouse: Mini Din 6 pin Female
VGA: HDDB 15pin Female |
| KVM Cable Connection |
3-in-one HDDB 15-pin PS/2 KVM Cable ( standard 6-ft, optional 10-ft, 15-ft, 33-ft ) |
| PC selection |
On Screen Display, Hot Key & Push Button |
| LED |
1 Bank LED
4 / 8 / 16 Online LED (Green) & Selected LED (Red) |
| On Screen Display Control |
Yes |
| Scan Mode Intervals |
5~99 Sec. |
| VGA Resolution |
Upto 1,920 X 1,440 |
| Bandwidth |
200MHz |
| Cascade MAX. Level |
8 levels with addition 112 PCs connection |
| Housing |
Metal |
| Power Adapter |
DC 12V 1A |
| Operation Temperature |
0~50 ℃ |
| Storage Temperature |
-10 ~ 60 ℃ |
| Humidity |
0~90%, Non-Condensing |
| Product Dimension |
449 W x 44H x 200D mm |
| Net Weight |
3.5 Kg |
Special Notes -
****LCDK1009 KVM 4 Port Switch is using standard PS/2 type keyboard and mouse and D-sub 15pin VGA for
connection. If you need to connect a Sun server to this KVM switch, you will need a separate
SUN / iMAC USB to PS/2 converter kit LCD-A1001 (click here to see details of LCD-A1001).
****3-in-One PS/2 KVM cables has optional length of 6-ft , 10-ft , 15-ft & 33-ft. (click here to
see details of PS/2 KVM cables).
Ordering information
| Part Number |
Description |
| LCDK1009 |
1U Rackmount Single user KVM 4 Port PS/2 Switch with 4 x 6-ft PS2 KVM
cables included |
| LCD-A1001 |
PS/2 to SUN / iMAC USB adapter |
| LCD-A1004 |
6 ft 3 in 1 PS/2 KVM cable |
| LCD-A1005 |
10 ft 3 in 1 PS/2 KVM cable |
| LCD-A1006 |
15 ft 3 in 1 PS/2 KVM cable |
| LCD-A1007 |
33 ft 3 in 1 PS/2 KVM cable |
|
