LCDK1017 1U Rackmount Keyboard with 15" Travel drawer, Front Lock, 16 Port PS/2 KVM Switch & 16 sets of KVM cables optional trackball or touchpad



1U  Rackmount Keyboard with 19" Travel Drawer , Front Lock , 16-Port PS/2 KVM Switch
           and optional 8 or 16 sets of  6-ft PS/2 KVM cables  , optional Trackball or Touchpad
Features
  • Rugged metal construction
  • Standard 19". 1U height rackmount keyboard drawer
  • Adjustable mounting brackets from 15.35" to 31.3" (390to 795mm), fits multiple depth cabinets between 650mm and 1000mm
  • Lightweight aluminum construction - with a black anodize finish
  • Fully compatible to IBM/AT keyboard
  • Front access Lock for security
  • Slide Rails have fixed position to prevent movement of the keyboard
  • Lockable drawer to secure the keyboard and mouse
  • Ball bearing telescopic slides
  • 15" drawer travel
  • Supplied with 12V 5A remote power adapter (single power source)
  • All mounting hardware included
  • Dimension :  17.5"(W) x 1.75"(H) x 21.6" (D) /
     44.4(W) x 4.45(H) x 55(D)cm
  • Optional Accessories & Peripheral : Details

KVM Switch

•  Cascade for use up to 128 servers.
•  Name servers up to 16 characters long.
•  Scan mode – Monitor servers at intervals 5 to 99 seconds.
•  High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
•  Built-in microprocessor emulation for each port boots up process.
•  Support eight characters password protection and search PC
    server name.
•  VGA, keyboard & mouse all-in-one by 15pin HDDB connector at
   switch side.
•  Multi-platform – mix PCs, SUN Microsystems, IBM compatibles,
   HPs, Compaq and Dell.
•  Hot Pluggable - Add PCs or Remove Connected PCs for
   Maintenance without powering down the PS/2 KVM switch or
   PCs.
•  No Software Required - easy PC selection via On Screen Display
   Manual, Push Buttons, Hot Keys.



    Front View of LCDK1017d

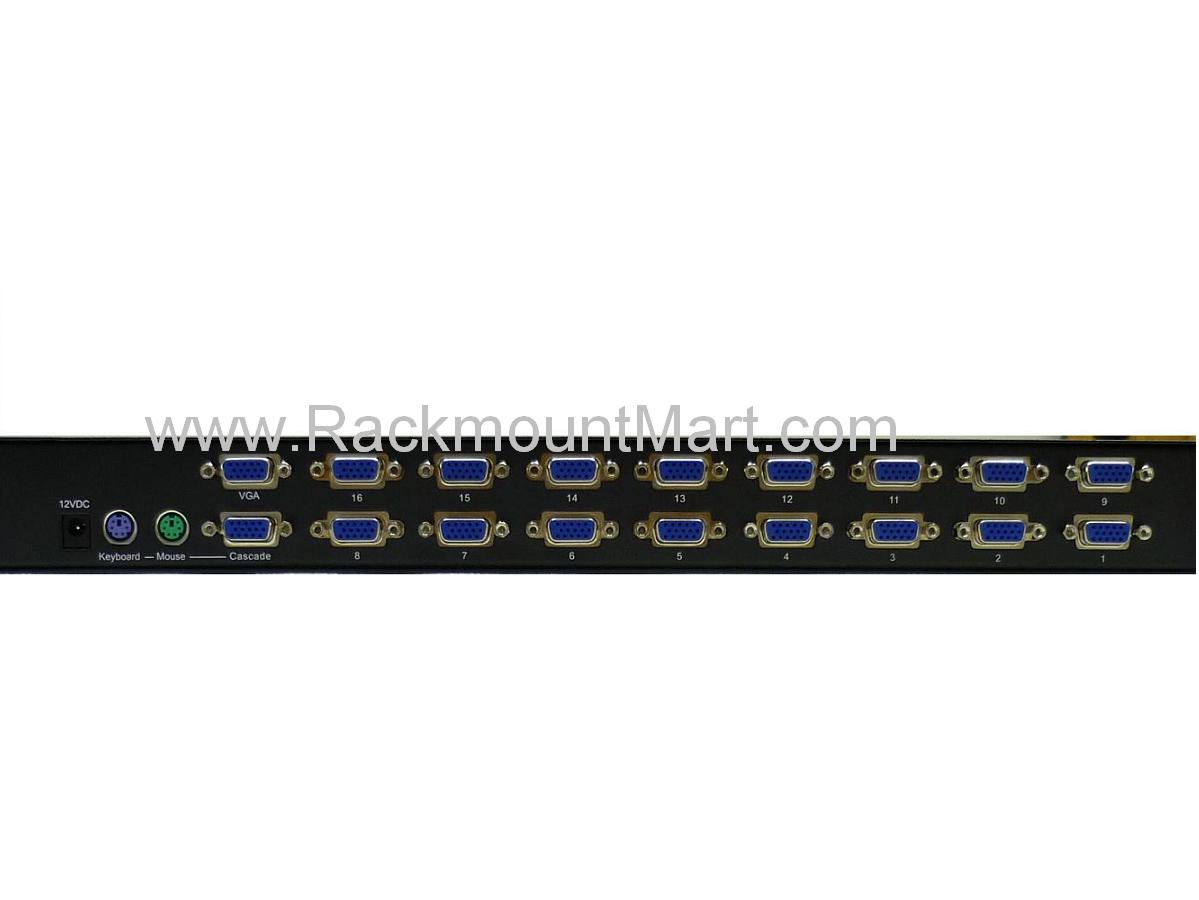

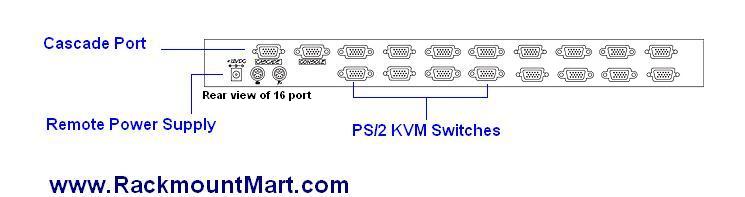

    Rear View with KVM switches


    * click on picture for enlarged view



  Product Sheet


  Keyboard User Manual


      KVM User Manual






Click on the following photos for enlarged view :




5 KEYBOARD OPTIONS  :


 Details of Keyboard Options

Dimension Diagram


Power supply :

  • Remote adapter : 110V - 220 V AC Input , 12V 5A Output
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval : FC, CE
  • Mains plug options available
  • Optional - power adaptor 48V / 24V / 12V DC input available



KVM switch -
Channel Port 16
PC Port Connector
(All Female Type) 		PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Cascade Port Connector
(All Female Type) 		PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Channel Port Connector
(All Female Type) 		HDDB 15 pin
Channel Port Connection
(Male to Male) 		HDDB 15 pin 3-in-1 Cable
PC selection On Screen Display Manual, Hot Key, Push Button
LED 1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red)
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1920X1440
Bandwidth 200MHz
Cascade MAX Level 8 levels
MAX. PC Connection  128(16ports)
Housing Metal
Power Adapter DC 12V 1A
Operation Temperature 0~40 ℃
Storage Temperature -5 ~ 60 ℃
Humidity 5~90%, Non-Condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration



                                                              Optional Accessories
     LCD-A1001  PS/2 to SUN /iMac USB adapter

                         Details

KVM  & Cascade Cables with various length
                                                                 Details


                                                                Optional Peripheral
    LCD Monitor Drawer
                                                        Details
         		   LCD Monitor
                                                         Details

    Single User (Console) PS/2 KVM switch
    - 4 Port / 8 Port / 16 Port                 Details
         		   Single User (Console) USB  KVM switch
    -  8 Port / 16 Port                            Details

     2 User (2 Consoles ) PS/2 KVM switch
    - 8 Port / 16 Port                             Details
         		   2 User (2 Consoles )USB KVM switch
     -  8 Port / 16 Port                          Details

     PS/2 KVM Extender
                                                        Details




Ordering  information

Part Number  Description
 LCDK1017-c 1U Rackmount  Keyboard Drawer with Cherry keyboard and trackball ,  16 port DB-15 PS2 KVM w/ 16 x 6-ft PS2 KVM cables , Black
 LCDK1017-d 1U Rackmount  Keyboard Drawer with Compact keyboard and trackball , Lock,  16 port DB-15 PS2 KVM w/ 16 x 6-ft PS2 KVM cables , Black
 LCDK1017-n 1U Rackmount  Keyboard Drawer with Notebook keyboard and touchpad mouse,  16 port DB-15 PS2 KVM w/ 16 x 6-ft PS2 KVM cables , Black
 LCDK1017-t 1U Rackmount  Keyboard Drawer with Compact keyboard and touchpad mouse,  Lock,  16 port DB-15 PS2 KVM w/ 16 x 6-ft PS2 KVM cables , Black
 LCDK1017-b 1U Rackmount  Keyboard Drawer with Notebookt keyboard and trackball,  16 port DB-15 PS2 KVM w/ 16 x 6-ft PS2 KVM cables , Black




LCDK1017









     For more information, please visit our company web site at
    https://www.rackmountmart.com/



Prices and availability subject to change without notice. Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.
