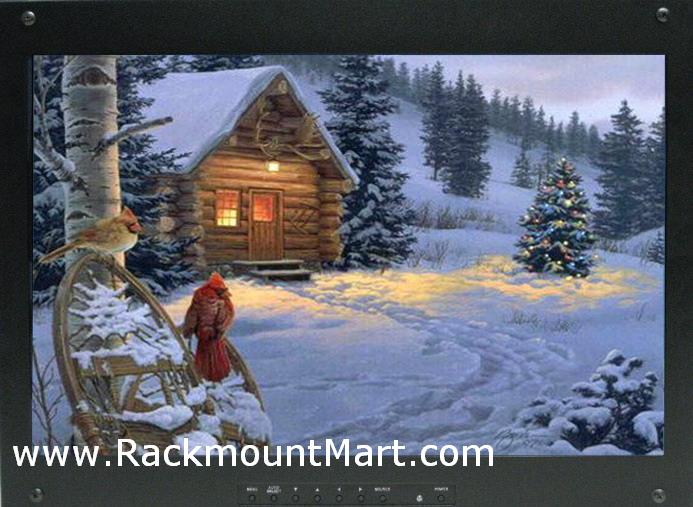

20 Inches Rackmount� Monitor :�
�
Part #� LCDR8U20-04
� 8U Rack mount� 20.1"� LG TFT / LCD Monitor Panel Optional Lexan Shield (�Made in U.S.A.� )
�  |
 |
| � � * Click on the photos to enlarge |
�  |
� Free Ground Shipping *Click for details �
|
Features :�
- 20.1" LG Active Matrix TFT LCD display.
- High contrast and wide viewing angle.
- Optional Lexan Shield protection for the display surface.
- Only 3.05" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided.
-Color : Black� |
The LCDR8U20-04 rack mountable 20.1"� TFT monitor provides a high contrast, wide viewing angle
display in a minimal rack depth. This TFT display connects directly to a standard video output via a
15-pin VGA connector and does not require any additional drivers or proprietary interface adapters. Also
featured is a connection to DVI-D digital video devices. Offered in black with optional display surface Lexan Shield protection. |
|
| �
�
� |
�
| Dimensions |
19.0" (W) x 14.0" (H) x 3.05" (D) |
| Display Type |
20.1"� viewable, TFT active matrix LCD. |
| Resolution |
1680 x 1050 maximum, 16.7M colors. |
| Frequency |
Horizontal: 30-81 KHz.
Vertical: 56-75 Hz. |
| Response Time |
5 ms (typ). |
| Brightness |
�300 nits typical |
| Contrast Ratio |
�800:1 typical |
| Viewing Angle |
Horizontal: 178 degrees
Vertical: 178 degrees |
| Input Signal |
(VGA) Analog RGB, TTL H & V Sync.
(Digital) DVI-D (TMDS). |
| Video Connector |
Analog: 15 pin mini HD D-sub.
Digital: 24 pin DVI-D. |
| On-Screen Controls |
Brightness, Contrast, Position (Vert.� & Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto Adjust |
| Plug & Play |
DDC1 and DDC2B |
| Power |
AC Input |
100-240VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
40 Watts Max |
| Environment |
| Humidity |
Operating: 10% to 80% RH (max) |
Ordering� information�
| Part Number |
Description |
| LCDR8U20-04-b |
�8U Rackmount 20.1"� LG LCD Monitor�, black |
| LCDR8U20-04-b-lex |
�8U Rackmount 20.1"� LG LCD Monitor�, with Lexan Shield protection at display , black |
|
|
