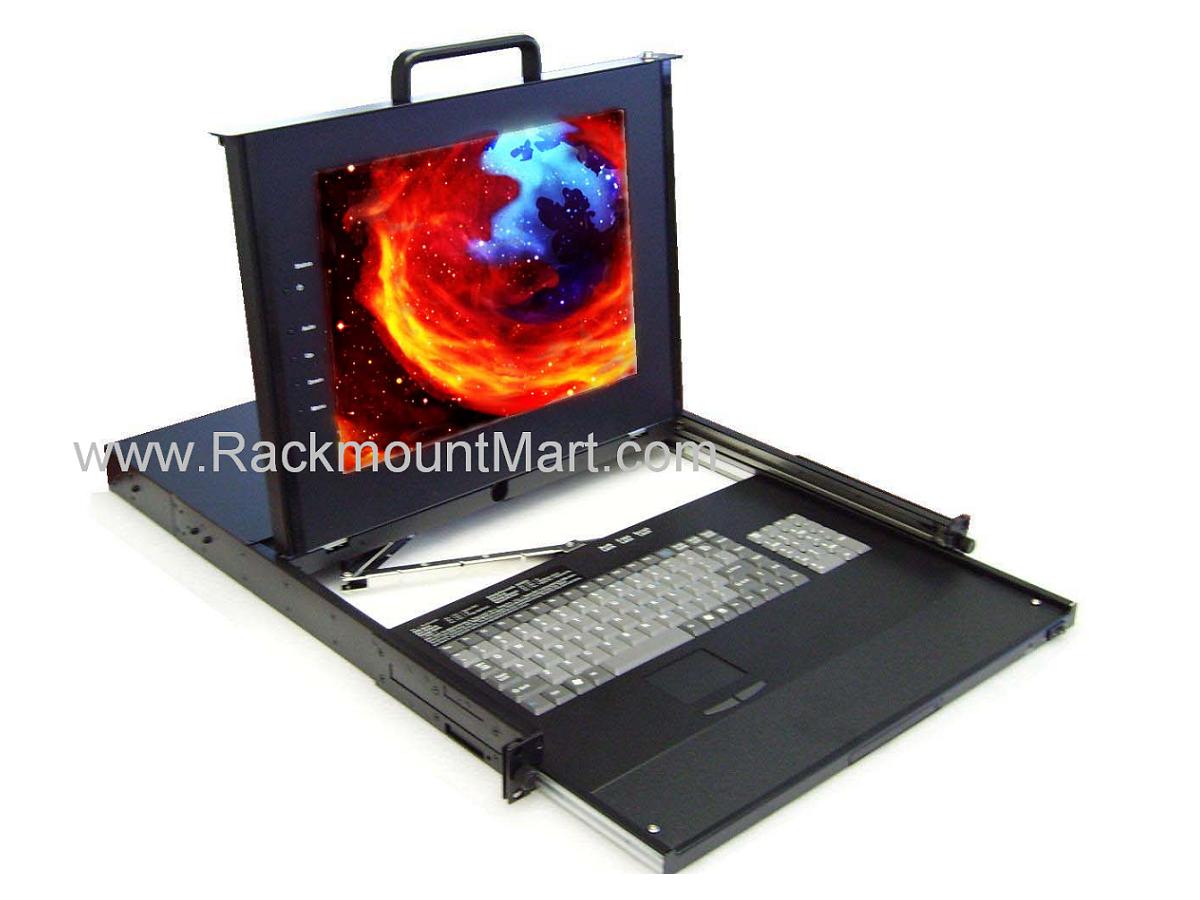

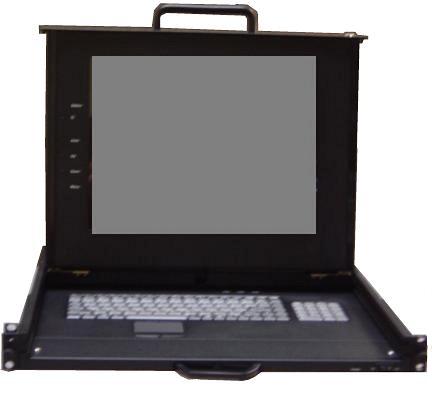

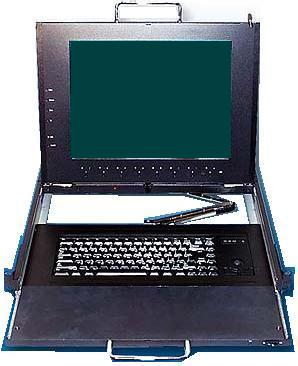

LCD1U15-10 Dual Slides SHORT 1U Rackmount 15" TFT LCD Monitor Panel with Cherry Keyboard or 105-key keyboard , optional 8 / 16 port KVM Switch / PS2 or USB / DVI / SUN Hot keys

Part # LCD1U15-10

NOVA DUAL RAILS Short Depth 1U Rackmount 15" TFT LCD Monitor Keyboard Drawer with
Combo PS2 & USB interface Optional 8 or 16port KVM switch / SUN Hotkey / DVI / Cherry Trackball

Special space saving design : The dual rail technology allows user hide the keyboard and still view
through the screen even if the rack door is closed . UL Listed & RoHS Compliant

Overview :

LCD1U15-10 15" LCD Rack Console enhances secure and compact centralized server control. Independently sliding rails enable the high-grade 15" LCD to remain displayed even with the keyboard is stored. With this slim 1U design, the LCD Rack Console fits standard 19-inch, 4-post rack and works with any server or KVM switch. This LCD Rack Console offers an affordable solution with reliability & quality .

Features :

Dual Rail KVM rack Drawer : One pair of rails for Panel and one pair of rails for Keyboard tray so that Panel and Keyboard can be moved separately
Utilizes just 1U rack space
Compatible with all KVM switching systems for multiple server access
Adjustable to various rack depth from 45cm up to 103cm
Plug and play installation requires no change to the installed base
15" high grade TFT LCD Display
Panel protected by tempered glass
Hidden handle for Keyboard tray
Installs quickly and easily
RoHS Compliant
Mulit-platform :Support PS/2, SUN and USB
Operating System : Dos, Windows , Linux, Novell 3. 12-6, HP UX, SUN
Support Sun native resolution
Durable keyboards (touchpad or Cherry trackball)
Support 15 various keyboard languages
Bright Active Matrix TFT Display
OSD function (On Screen Display) for LCD display and
KVM switch
Optional Rear extension bracket up to 1030mm

Optional DC Input power adapter / PS2 & USB Combo / DVI / SUN Hot Key / Cherry Trackball Keyboard

* Click to enlarge

SPECIFICATION

Display Size

15"

Panel Type

High Grade Active Matrix TFT LCD

Resolutions

Maximum Resolution up to 1024 X 768

Pixel Pitch

0.297mm x0.297mm

Viewing Angle

Right-Left view 130 (Typ)
Up-Down View 100 (Typ)

Contrast Ratio

400 : 1

Brightness

White 250cd/m²

Back Light

Four Lamps for Back Light

Supported Colors

up to 16.2 M (6-bit with FRC)

Keyboard

106 Keys with Numeric Key pad &
touchpad Keyboard OR
Cherry keyboard with Trackball

Video Input :

Analog RGB input

Sync :

45~80KHZ

Input Connector :

Video HDD15 K/M MiniDin6

Power Source

100-240 VAC input

Power Consumption

16W , 10. 41W for Panel

Temperature

Operate 0°~ 50° C / 32° ~122°F
Storage-20° - 60° C / -4° - 140°F

Humidity

10%~90%RH

Response Time

Rising Time 5ms
Decay Time 11ms

Dimension :

LCD1U15-10 :
17.5" x 17.7" x 1.7" (W X D X H)

LCD1U15-10-8KVM :
17.5" x 22.4" x 1.7" (W X D X H)

LCD1U15-10-16KVM :
17.5" x 22.4" x 1.7" (W X D X H)

Chassis Construction :

Heavy-duty steel materials

Certification

CE / FCC , UL / CUL / C-Tik

	Download Product Sheet
	Download User Manual
	Download Hot Key Command List

More Photos : click to enlarge

	Download Installation Guide
	Download Connection Diagram
	IP Quick Setting Guide

Free Ground Shipping( A $55 Value) *Click for details

KVM INFORMATION :

Combo PS2 USB KVM Rear View and Connection Diagram

8-DVI Rear View (Click to enlarge)

  Ordering information :

  NO KVM ( Single Port ) / PS2 or Optional PS2 & USB Combo interface

Part # Description

LCD1U15-10-n-co-ps2
Price:$1009.40 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with VGA , touchpad mouse and COMBO PS2 / USB INTERFACE and *1 PS/2 6-ft cable included, Black

LCD1U15-10-n-co-usb
Price:$1009.40 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with VGA, touchpad mouse and COMBO PS2 / USB INTERFACE and *1 PS/2 6-ft cable included, Black

  8 Port  PS2 & USB Combo / CAT5 / DVI-USB KVM interface

Part # Description

LCD1U15-10-8KVM-n-co
Price:$1208.50 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port Combo PS2 / USB KVM and total of 8 x customer's choice of PS2 and USB 6-ft KVM cable included, Black RoHS Compliant
LCD1U15-10-U8KVM-n-co
Price:$1229.50 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.

LCD1U15-10-8DVI-n
Price:$1407.00 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port DVI KVM switch &USB INTERFACE and 8 x DVI & USB cables included, Black RoHS Compliant

  16 Port  PS2 & USB Combo / CAT5 KVM interface

Part # Description

LCD1U15-10-16KVM-n-co
Price:$1336.30 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 16 port Combo PS2 / USB KVM and total of 8 x customer's choice of PS2 and USB 6-ft KVM cable included, Black RoHS Compliant

LCD1U15-10-U16KVM-n-co
Price:$1364.40 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 16 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.

  32 Port  PS2 & USB Combo / CAT5 KVM interface

Part # Description

LCD1U15-10-U32KVM-n-co
Price:$1499.30 1U Dual-Slide Rack monitor 15" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 32 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.

  Options

Part # Description

-DVI
Price:$40 DVI for 1 port only

-Sun Hot Key
Price:$20 Add SUN Hot Keys to Keyboard

-C
Price:$127.50 Add Cherry Trackball Keyboard

-T
Price:$170.00 Add Touch screen (USB or RS232)

-12VDC
Price:$60 Add 12V DC power supply        DC sheet

-24VDC
Price:$60 Add 24V DC power supply        DC sheet

-48VDC
Price:$60 Add 48V DC power supply        DC sheet

-125VDC
Call for pricing Add 125V DC power supply

LCD-A2001
Price:$39 Add VGA-USB dongle

LCD-A2002
Price:$39 Add VGA-PS2 dongle

LCD-A4001
Price:$13 Add 6 ft PS2 Cable + USB adapter

LCD-A4002
Price:$21 Add 10 ft PS2 Cable + USB adapter

LCD-A4003
Price:$35 Add 15 ft PS2 Cable + USB adapter

LCD-A4011
Price:$13 Add 6 ft USB Cable

LCD-A4012
Price:$20 Add 10 ft USB Cable

LCD-A4013
Price:$26 Add 15 ft USB Cable

LCD1U15-10

$1,009.40

Single Port PS2 or PS2 & USB Combo interface :

8 Port PS2 & USB Combo / CAT5 / DVI-USB KVM interface :

16 Port PS2 & USB Combo / CAT5 KVM interface:

32 Port PS2 & USB Combo / CAT5 KVM interface:

DVI:
SUN Hot Keys:
C : Cherry Trackball Keyboard:
T : Add Touch screen (USB or RS232):
DC power input Option:

LCD-A4001:6 ft PS2 Cable + USB adapter:
LCD-A4002:10 ft PS2 Cable + USB adapter:
LCD-A4003:15 ft PS2 Cable + USB adapter:
LCD-A2001:VGA-USB dongle:
LCD-A2002:VGA-PS2 dongle:
LCD-A4011:
LCD-A4012:
LCD-A4013:
