LCDR3U5.8-01 Triple 5.8" Rack Mounted Full Color Active Matrix LCD Panel with Composite Video

Panel:  3 x 5.8" LCD panels


5.8" LCD Panels x 3

Display Area

5.01" x 2.83"


1200 H x 234 V

Pixel pitch

0.318mm  x 0.307mm


350 cd/m2


NTSC / PAL config. switch

Input per  panel (total)

 2 ( 6 ) Composite

Approx.  weight

5 lbs

Power Consumption

9 VDC , 3.0 Amps

Product Dimension

19.125" (W) x 5.14" (H)  x2.5 " (D)

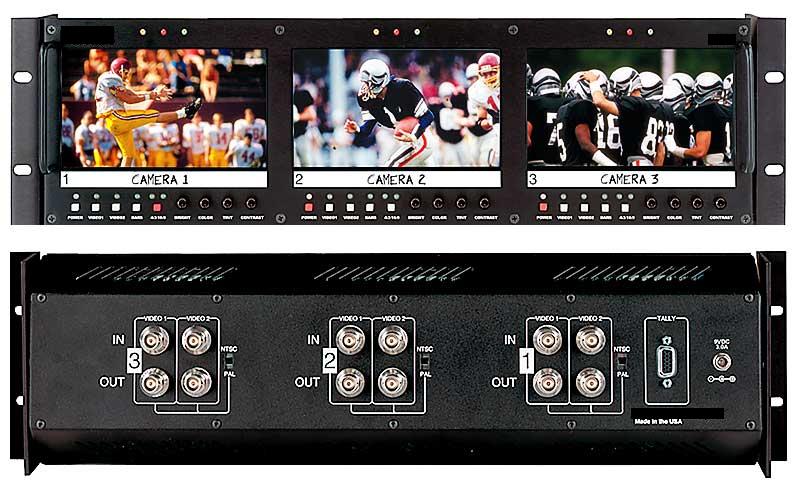

  Front  View
                    *click on  picture for  enlarged view

 Features :

  • High Resolution LCD panel, 1200 x 234 pixels, 280,800 total
  • Ultra bright 350 candle luminance
  • Switchable 4:3 and 16:9 ratios
  • NTSC/PAL switchable via switch on rear of unit
  • Auto Signal Detection, blue screen appears when signal is
    not present
  • Three color, self-powered tally system provided for each panel
  • Individual color, tint, brightness and contrast controls for
    each panel
  • Built-in memory saves current setup when unit is powered
  • Built-in Color Bar Generator
  • Unique 100 degree tilt adjustment while mounted in rack
  • Dry Erase Marker for EZ Identifying of screens is included


Description :

The LCDR3U5.8-01  is a rack mountable unit that has three independently controlled 5.8" active matrix LCD panels with active loop through feature. These 16:9 high-resolution panels have a pixel count of 1200 x 234, and are rated at a very bright 350 candle luminance. Each of the three screens has a built-in color bar generator, controls for brightness, color, tint, contrast, and selectable aspect ratio of 16:9 or 4:3. Each panel accepts dual composite video inputs, and has a selectable NTSC/PAL switch on the back. A built in 3 color tally system is also provided for each screen. The unit includes power supply, manual and fits into any standard EIA 19" rack, at only 3U high.


Ordering  information

Part Number  Description
LCDR3U5.8-01  3U Rackmount 3 x 5.8"  Rack mounted LCD  Panel



Availability: Usually ships the next business day

LCDR3U5.8-01 $2,488.00
