Dual Multiformat HD/SD 7"
monitor with 1.2 TFT MegaPixel Displays
Panel: 2 x 7" LCD panels
|
Display |
7" LCD Panels x 2 |
Display Area
|
6.14" x 3.27" |
Resolutions
|
800 H x RGB x 480 V |
Pixel pitch
|
0.065mm x 0.175mm
|
Brightness |
380 cd/m2 |
System
|
NTSC / PAL auto recognition for
standard definition signals |
Input per panel
(total) |
1 (2) Composite , 1 (2) S-Video,
1 (2) Component HDSDI/SD,
1 (2) HD/SDI |
Approx. weight
|
5 lbs |
Power Consumption |
12 VDC , 3.0 Amps |
Product Dimension
|
19.12" (W) x 5.14" (H) x2.5 " (D) |
|

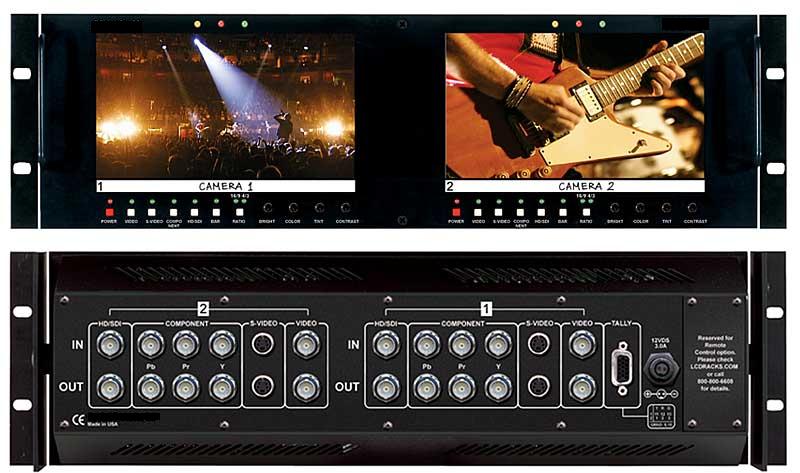

Front View
*click on picture for enlarged view
Features
:
- High
Resolution 7-inch 1.2 MegaPixel wide screen
- 100%
digital processing
-
Analog signals converted to 10 bit digital
- High
resolution scaling of all images
- Wide
viewing radius - 130 degree horizontal and 120 degree
vertical provides superior visibility when the viewer is not
directly in front of the screen
- 380
candelas per square meter (cd/m2) luminance produces
enhanced image quality in varying light and viewing conditions
- 400:1
ratio of contrast between black and white luminance
values with response rates less than 30 ms results in
excellent quality for moving images
- 4:3
and 16:9 screen aspect ratios for DTV applications in HD
and SD format
- Works
with all analog SMPTE/ITU production formats and
frame rates
- Blue
Screen for color adjustment
-
Standard Multiformat inputs:
-
HDSDI (all formats)
-
Component Analog HD/SD
- Y/C
(S-Video)
- SDI
(ITU-R BT601 format)
-
Composite Video PAL/NTSC
-
Loop through of all input signals
- Easy
to see three color tally indicators
- Built
in Color Bars
-
Adjustment Settings Memory
|
|
|
Description :
The Rack mounted and tiltable
LCDR3U7-03-2HD represents leading edge technology in LCD/TFT
imaging for broadcast and professional video applications featuring High
Resolution, megapixel, TFT screens with completely digital signal
processing. All SMPTE/ITU video standards and signal types are accepted and
displayed on each screen of this model. Analog signals are digitized using
an advanced 10 bit process on each signal path with 4x over sampling and
adaptive 5 line comb filter with exacting color space conversion. All video
formats are scaled to fit on screen in the highest resolution using a state
of the art LSI that incorporates 4x4 pixel interpolations with precision
Gamma correction to produce the best images available.
Ordering information
Part Number |
Description |
LCDR3U7-03-2HD |
3U
Rackmount 2 x 7" Rack mounted LCD Panel with 1.2 TFT Megapixel &
Multiformat HD/ SD monitor set |
|
|
