Budget Dual Screen HDSDI/SD 7" monitor set
with 1.2 MegaPixel LCD Displays
Panel: 2 x 7" LCD panels
|
Display |
7" LCD Panels x 2 |
Display Area
|
6.14" x 3.27" |
Resolutions
|
800 H x RGB x 480 V |
Pixel pitch
|
0.065mm x 0.175mm
|
Brightness |
380 cd/m2 |
System
|
All HDSDI and SDI Component Digital
Signals |
Input per panel
(total) |
1 (2) HDSDI/SD
|
Approx. weight
|
5 lbs |
Power Consumption |
12 VDC , 3.0 Amps |
Product Dimension
|
19.12" (W) x 5.14" (H) x2.5 " (D) |
|

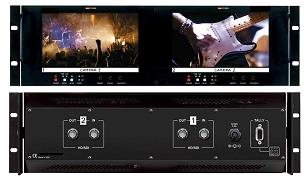

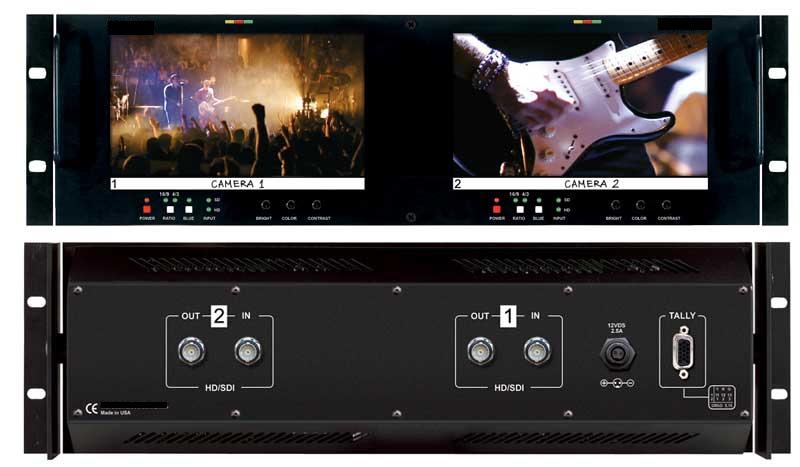

Front View
*click on picture for enlarged view
Features
:
- Two
7-inch 1.2 MegaPixel wide screens
- 100%
digital processing
- High
resolution scaling of all images
- Wide
viewing radius - 130 degree horizontal and 120 degree
vertical provides superior visibility when the viewer is not
directly in front of the screen
- 380
candelas per square meter (cd/m2) luminance produces
enhanced image quality in varying light and viewing conditions
- 400:1
ratio of contrast between black and white luminance
values with response rates less than 30 ms results in
excellent quality for moving images
- 4:3
and 16:9 screen aspect ratios for DTV applications in
HD and SD format
- Works
with all SMPTE/ITU SDI/HDSDI production formats
and frame rates
- Blue
Gun for color adjustment
- SD/HD
digital signal indicators
-
Standard Digital inputs:
-
HDSDI (all formats & frame rates)
1080-24P, 25P, 30P, 50i, 60i
720-24P, 25P, 30P, 50P, 60P
- SDI
(ITU-R BT601 format-525i, 625i)
-
Re-clocked and shaped output of all input signals
-
Easy to see three color tally indicators
-
Ready to mount in 19" rack out of the box
- Easy
to see three color tally indicators
- Ready
to mount in 19" rack out of the box
|
|
|
Description :
The Rack mounted and tiltable
LCDR3U7-03-2HDSDI represents leading edge technology in LCD imaging
for broadcast and professional video applications featuring High Resolution,
1.2 megapixel, TFT screens with completely digital signal processing. All
SMPTE/ITU serial digital video standards and frame rates are accepted and
displayed on each screen of this model. All video formats are scaled to fit
on screen in the highest resolution using a state of the art LSI that
incorporates 4x4 pixel interpolations with precision Gamma correction to
produce the best images available. Each screen is calibrated to SMPTE
standards for gamma and color temperature.
Ordering information
Part Number |
Description |
LCDR3U7-03-2HDSDI |
Budget 3U Rackmount Dual screen HDSDI/SDI 7" monitor set with 1.2
Megapixel LCD displays |
|
|
