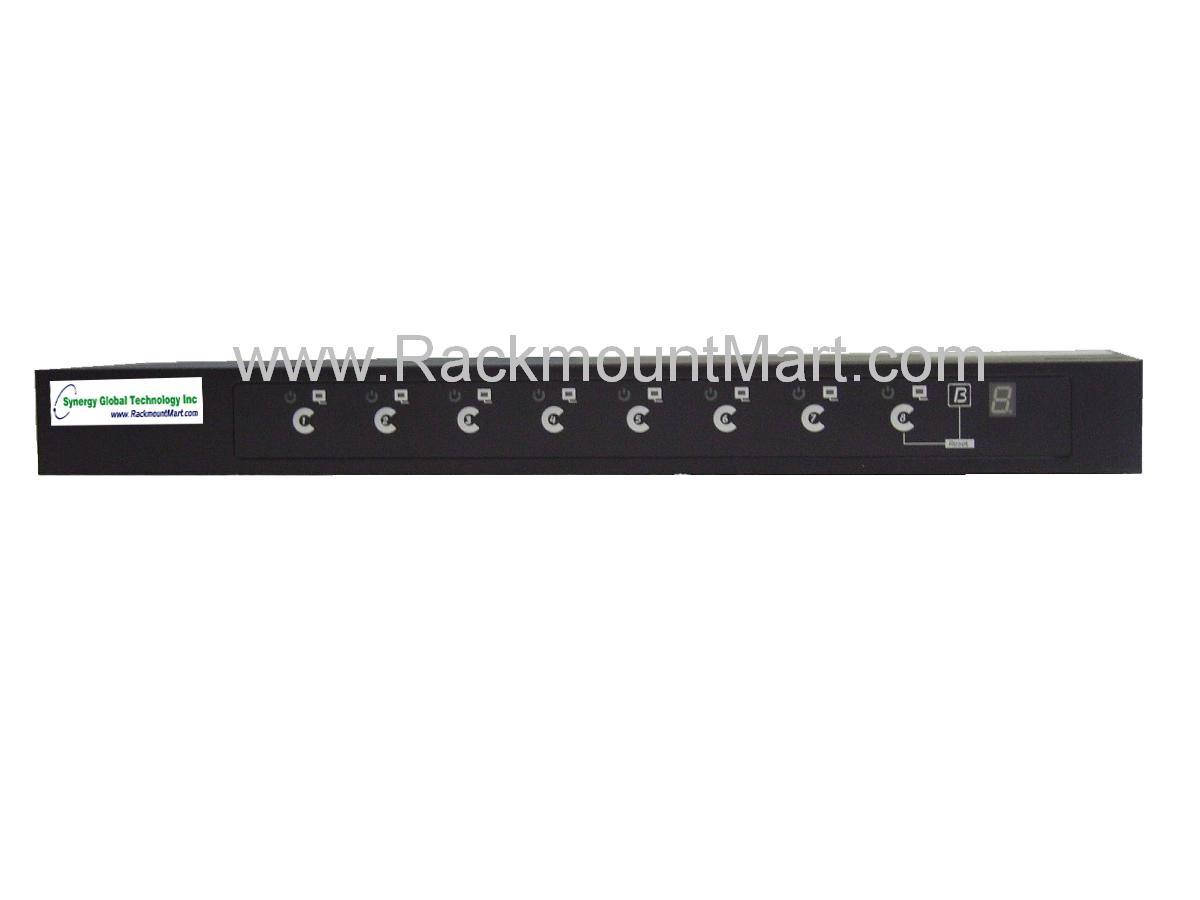

LCDK1038  8-Port VGA Combo KVM Switch , 1 Local User & 1 Network IP User, 1U Rackmountable





Part# LCDK1038


         8-Port VGA Combo KVM Switch , 1 Local User & 1 Network IP User
Standalone or 1U Rack Mountable

TAA Compliant

    16-Port Model: LCDK1039

    KVM Benefits
  • VGA Combo DB-15 KVM with 8 ports
  • IP remote access across the world wide web
  • Cascade switches up to 8 levels & Mix switches between Cat6 & VGA Combo DB-15 KVM
  • Standalone KVM or 1U Rack Mountable
  • Max. Resolution: 1920 x 1200
  • Support native SUN Resolution 1152x900
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Cost efficient remote server management between user & equipment rooms within the building
  • TAA Compliant
    Switch Features & Options
  • Mix legacy PS/2 servers with newer USB and SUN solutions
  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • 12V, 24V, 48V, 110V, 125V DC Power options
KVM

Number of ports

 8

Connector

 DB-15 combo connector

Connectivity

6-ft VGA + USB Keyboard / Mouse 2-in-1 KVM cable ( Part no.: LCD-A1014), Optional 10 & 15 feet
Resolution 16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200

Expansion

 Up to 128 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution 16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200

Input device

 2 x USB type A for keyboard & mouse

IP Remote Console
Connector

 RJ45 Ethernet

User management

 15-user login, 1 x active user

Network protocol

 DHCP / BOOTP / DNS

Security

 SSL v3, RSA, AES, HTTP / HTTPs, CSR

Resolution

 Up to 1600 x 1200

Browser

 IE, Firefox, Safari, Chronme, Opera

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

Compatibility
Multi-platform

 Mix PCs, SUN and Mac G3 / G4 Mac / iMac

Support  Windows 7 / Vista / 2003 / XP, Linux, Unix
Power
Input  100 or 240V AC at 50 / 60 Hz via IEC type cord
Consumption  Max. 19 Watt
Option DC  12V / 24V / 48V /110V / 125V / 250V DC input
Regulatory Approval
   cUL, FCC, CE , RoHS, TAA Compliant
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  10~300Hz, 10.5G RMS random vibration
Mechanical

Dimension

 17.4" x 6.7" x 1.73" (w X d X h ) /
443mm x 171mm x 44 mm

Weight  Approximately 6.5 lbs / 3kg
    KVM port connection

*click for enlarged view

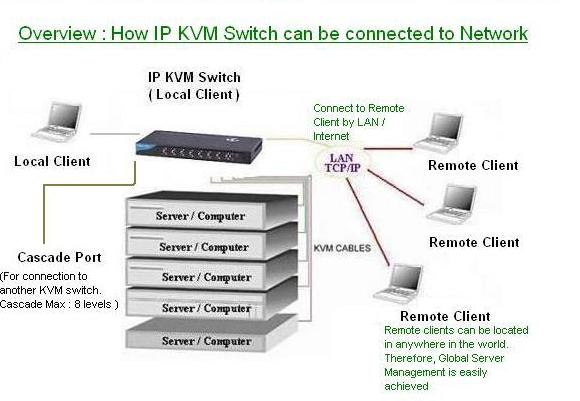

    IP & Local console connection

*click on above pictures for enlarged view

    KVM Cascade

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual
 Download Supporting Software




ORDERING INFORMATION OF LCDK1038  : Rack mount  DB-15 Combo USB PS/2 IP KVM switches ,
                                                                          with 8 port KVM,  local  and remote console

Part Number  Description
LCDK1038
Price : $724
 8-Port VGA Combo USB PS2 KVM Switch with with 8 x 6-ft  USB KVM  cable ( LCD-A1014), 1 Local user & 1 Network IP User
Optional DC Input Power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply






Availability: Usually ships the next business day

LCDK1038 8-Port VGA Combo KVM Switch , 1 Local User & 1 Network IP User, 8 x USB KVM cables included$724.00
Upgrade to 10-ft USB KVM Cable ( LCD-A1015):
Upgrade to 15-ft USB KVM Cable ( LCD-A1015):
Change to 6-ft Combo PS2 USB KVM Cable ( LCD-A3001):
Upgrade to 10-ft Combo PS2 USB KVM Cable ( LCD-A3002):
Upgrade to 15-ft Combo PS2 USB KVM Cable ( LCD-A3003):
Cascade Cable, 6-ft ( LCD-A1019):

Optional DC Input Power:
