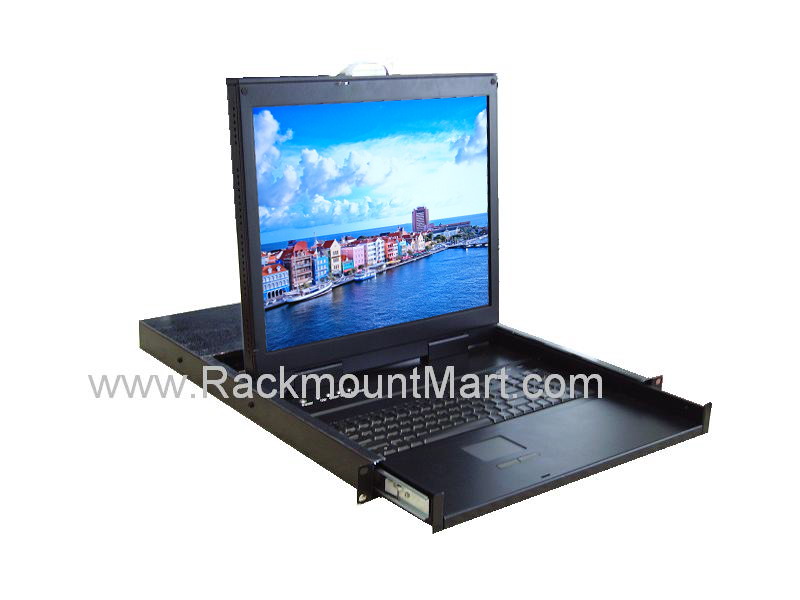

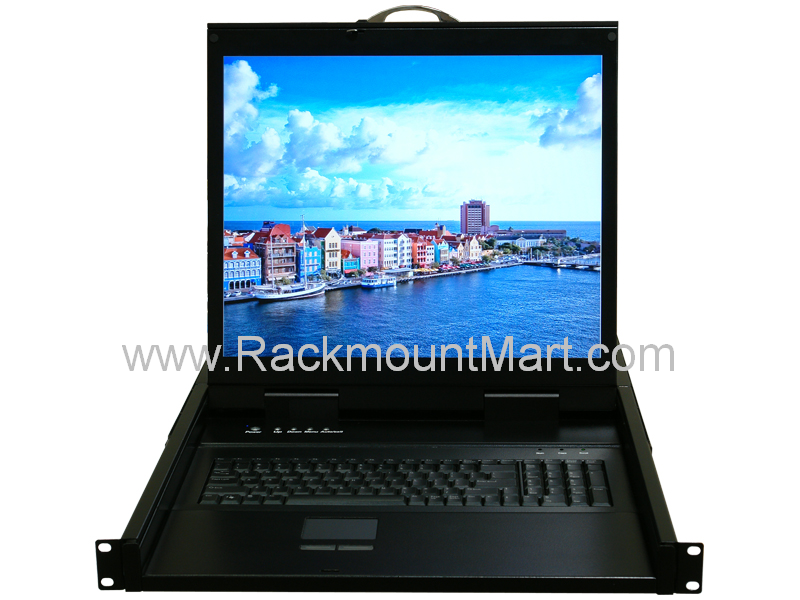

1U Rackmount 19"
TFT LCD Monitor Keyboard Drawer optional 8 port KVM or 16 port KVM
Drawer , Short Dept : 22.9" / 582mm only , CE, FCC & CCC approved
- CE, FCC and CCC Approved
- 19" 1U Rackmount LCD
Monitor single port, 8 ports KVM Console, 16 ports KVM Console
- 103-key keyboard and
integrated Touch Pad
- Built-in Rail
Self-locking device
- Supports PS/2 mouse
- Hot-key functions allow
easy computer access; Operating system independent, transparent to all
applications
- Plug and play system
configuration
- Standard 19 inches rack
mounting design
- Password security locks a
computer from unauthorized access
- Gains complete control
with easy-to-use OSD interface
- Offers standard keyboard
and heavy duty touch pad to easier monitor and control
- Cascade configuration
expands system capability
- Auto-scan automatically
selects computers sequentially and programmable scan filters unused
computers
- Keyboard states
automatically saved and restored when switching computers
- Assigns computers with
unique and meaningful names
- Identifies and selects
computers by the names
- Stores system settings
and name entries to
- Manages multiple
computers from easy to use console drawer
- Selectable User Timeout
|
|
I
|
II
|
III
|
|
Model No
|
LCD1U19-11
|
LCD1U19-11-8KVM
|
LCD1U19-11-16KVM
|
|
Certification
|
CE , FCC and CCC Approved |
|
Ports switch for PC
|
Single port
|
8 ports
|
16 ports
|
|
Dimension
|
483 � 582 � 44mm /
19.0" x 22.9" x 1.73"
(W x D x H)
|
483 � 582 � 44mm /
19.0" x 22.9" x 1.73"
(W x D x H)
|
483 � 582 � 44mm /
19.0" x 22.9" x 1.73"
(W x D x H)
|
|
Power Supply
|
AC 100-240V Universal
25W
|
AC 100-240V Universal
25W
|
AC 100-240V Universal
25W
|
|
KVM Cable
|
1
|
8
|
16
|
|
Extension Rail
|
Up to 35.4" (900mm)
|
Up to 35.4" (900mm)
|
Up to 35.4" (900mm)
|
|
Chassis
|
Heavy-duty Steel
|
|
Keyboard
|
Mechanical 103-key keyboard and
integrated Touch Pad
|
|
Language
|
US (standard), Optional : UK, Chinese
etc
|
|
Color
|
Black
|
|
Protection
|
Anti-glare Tempered
glass
|
|
Auto Power Switch
|
LCD back-light will automatically shut off
when the screen set fold |
|
Security Lock
|
Thumb screw x 2
|
|
Operation Temperature
|
0-50� C (32-122°F)
|
|
Cable Set
|
15 pin to 15 pin D-sub
cabl, PS2 keyboard & mouse detachable |
|
Display
|
|
Diagonal
|
|
|
Resolution
|
Up to 1600 x 1200
|
|
Display Area
|
386.4 (H) x289.8 (V) (19.0-inch
diagonal)
|
|
Brightness
|
300
|
|
Contrast Ratio
|
1000: 1
|
1000: 1
|
1000:1
|
|
Viewing Angle
|
170 / 170
|
|
Backlight MTBF
|
50,000 hours
|
|
Number of Color
|
16.7 M
|
|
Input Signal
|
Analog :
0.7Vp-p / 75 Ohms |
|
Frame Rate
|
60Hz(typ), 75Hz (Max)
|
|
KVM Switch |
|
KVM Switch Port
|
1
|
8
|
16
|
|
Hot Plug
|
N/A
|
Add PCs or Remove Connected PCs for
Maintenance
without powering down the KVM switch for PCs
|
|
Video Quality
|
N/A
|
Up to 1600 x 1200 with 200 MHz bandwidth
|
|
Auto Scan Mode
|
N/A
|
|
|
|
|
Ordering
information :
|
Part # |
Description |
| LCD1U19-11-n
Price:$890 |
1U 19" Rack monitor ( TFT
LCD) Keyboard Drawer , 1 cable included |
| LCD1U19-11-8KVM
Price:$1128 |
1U Rackmount 19" TFT LCD
Monitor Keyboard Drawer with 8 port KVM switch, 8 x KVM cables included |
| LCD1U19-11-16KVM
Price:$1268 |
1U Rackmount 19" TFT LCD
Monitor Keyboard Drawer with 16 port KVM switch, 16 x KVM cables
included |
|
|
