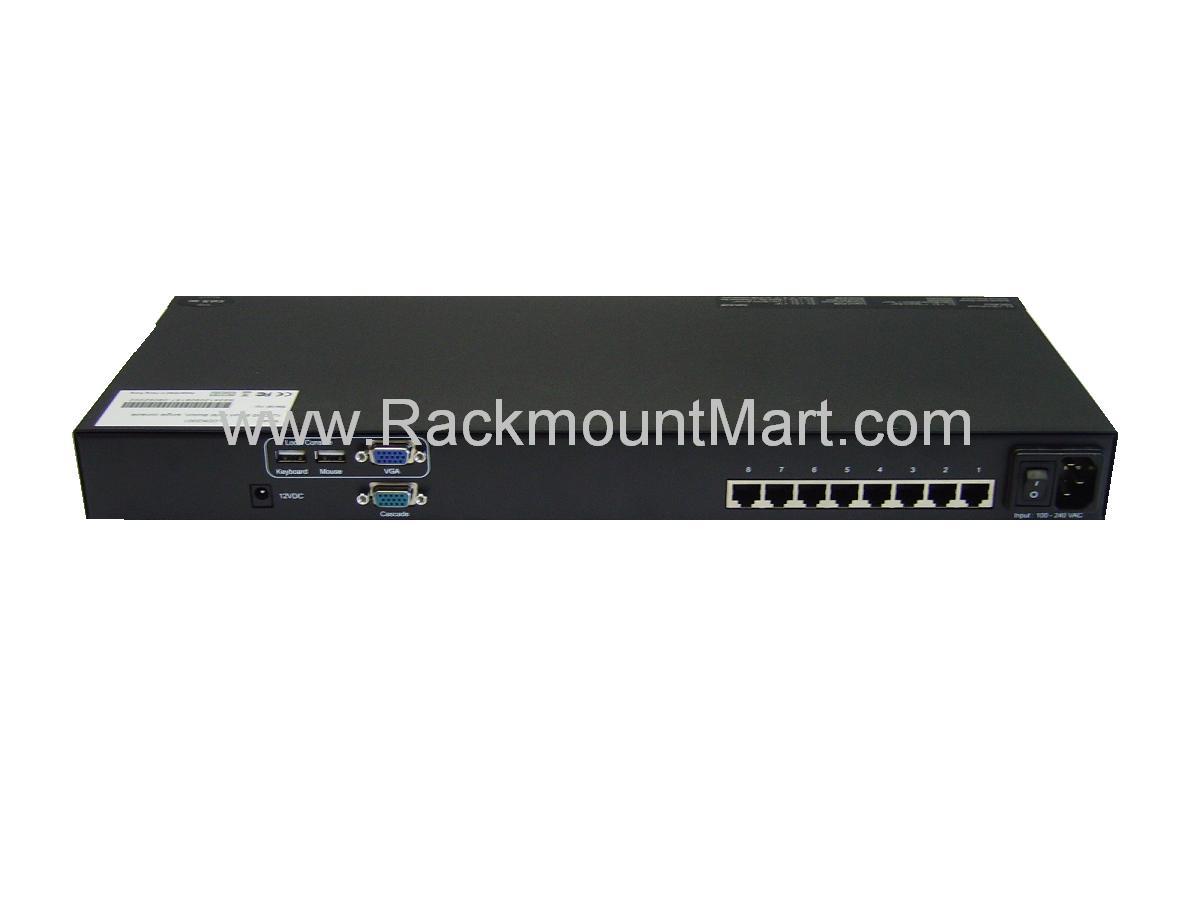

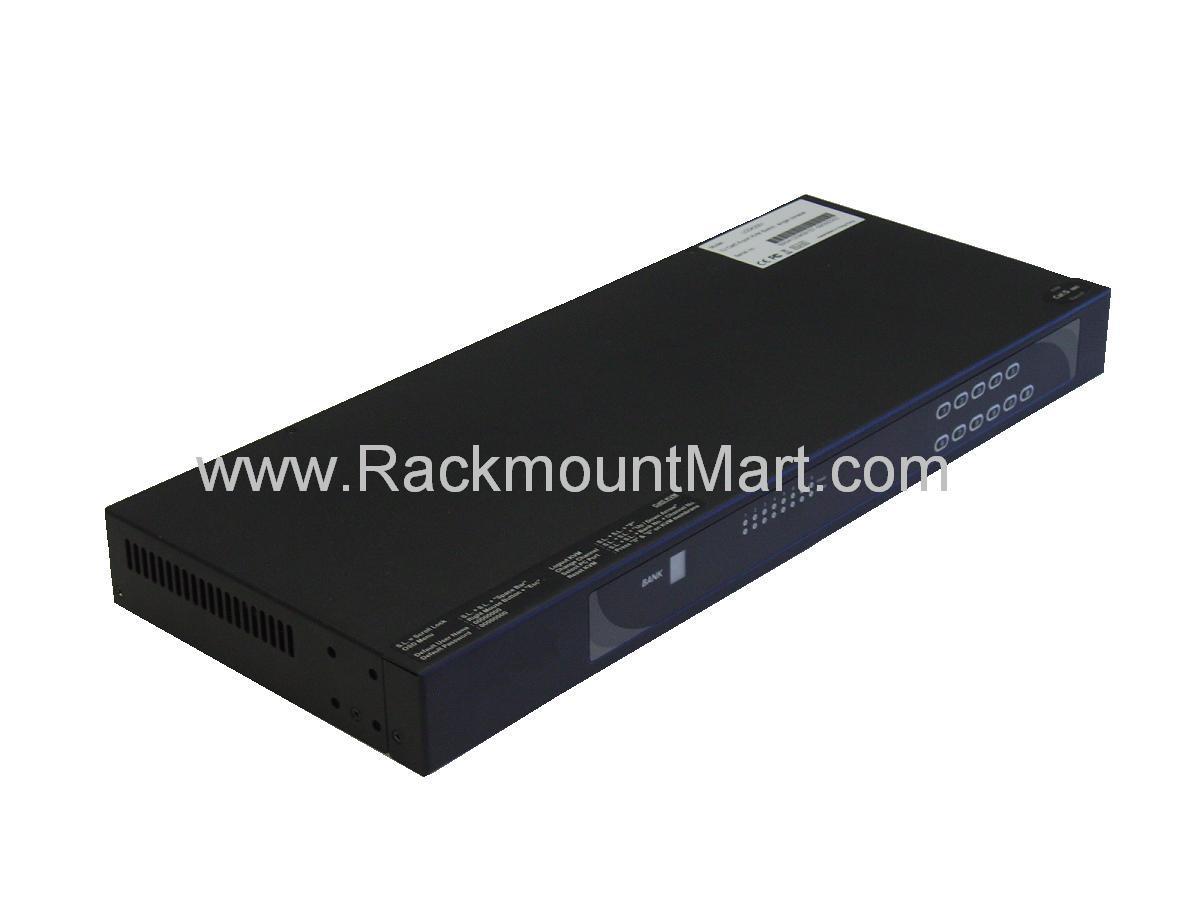

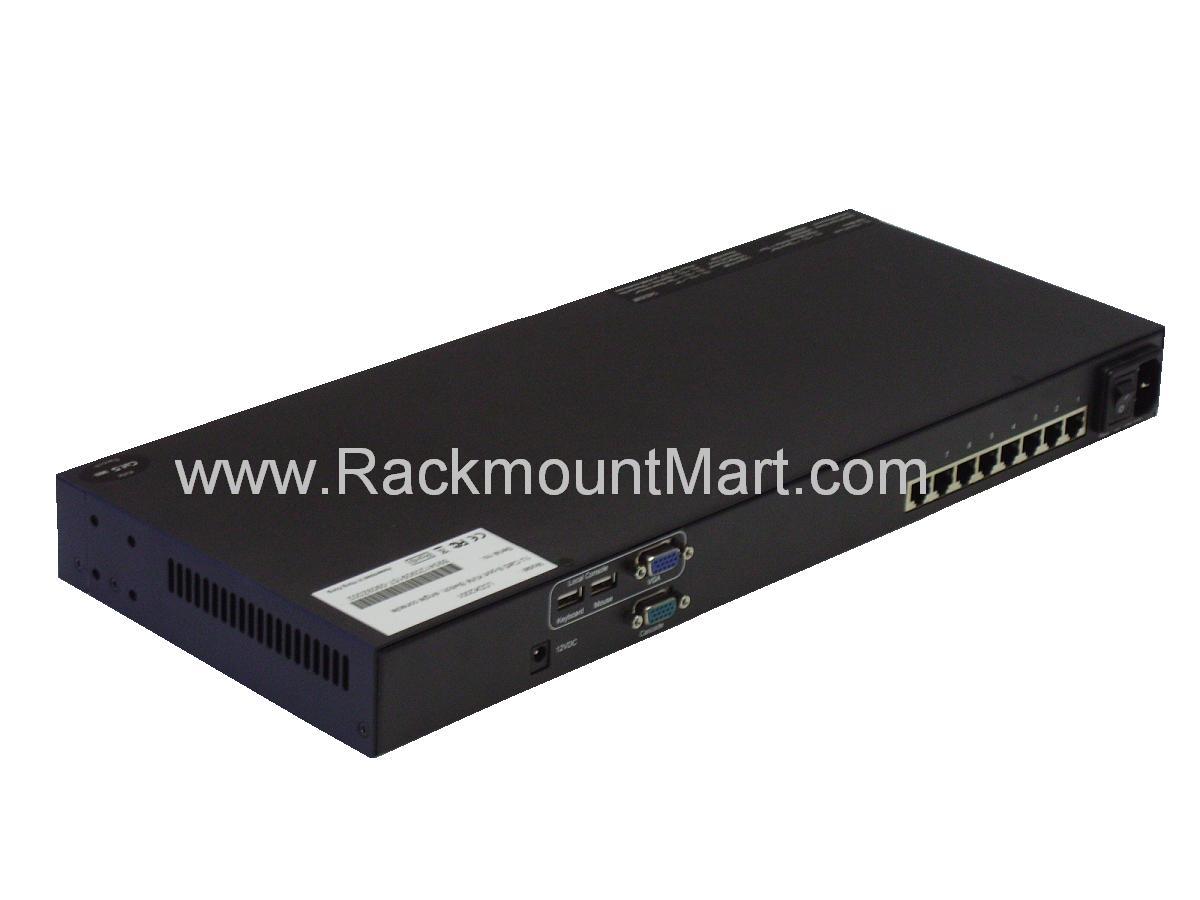

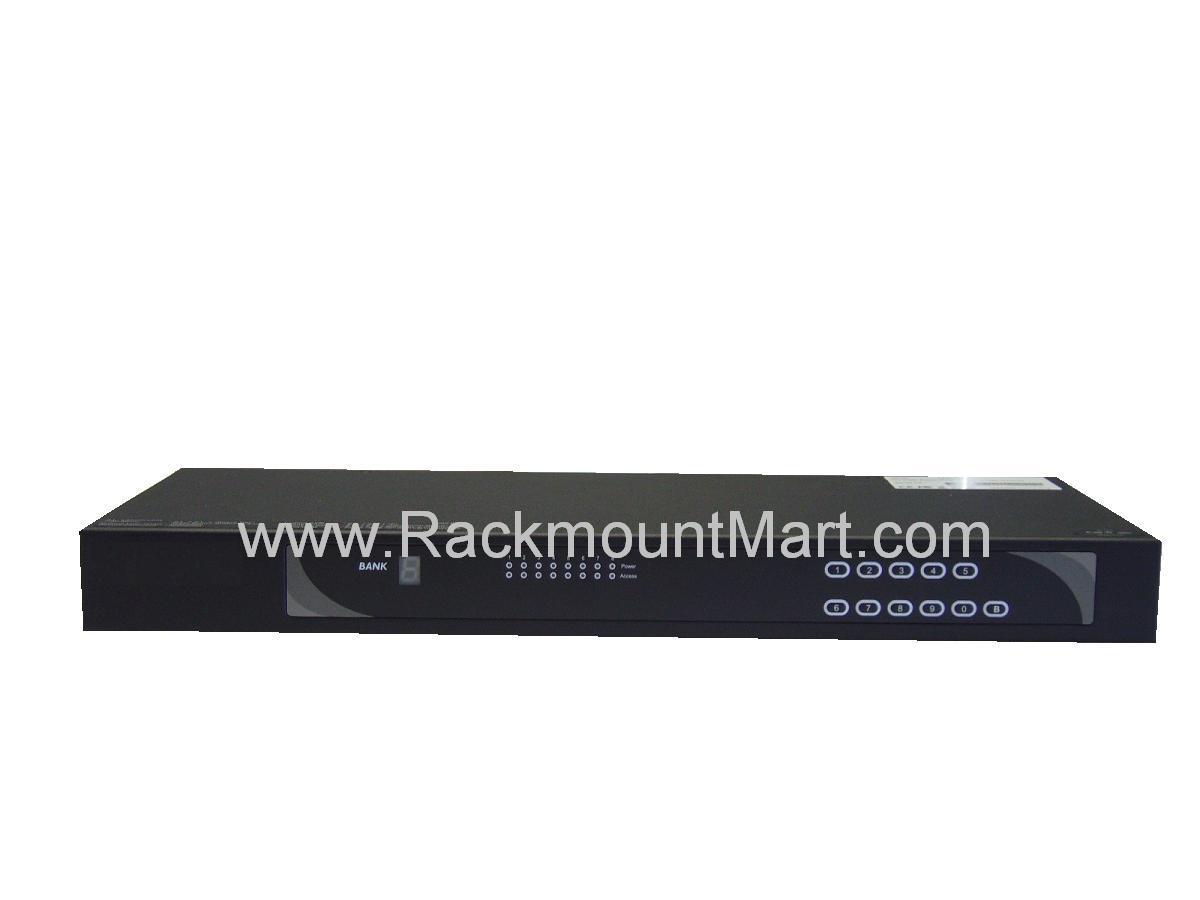

Click to enlarge

LCDK2001 8-Port Cat6 KVM Switch, DisplayPort, HDMI, DVI and VGA Video Input. 1U Rack





Part#  LCDK2001


             High Density 8-Port Cat6 KVM Switch supports DisplayPort, HDMI, DVI and VGA Video Input
Optional 12V , 24V, 48V, 125V , 250V DC Power
1U Rackmountable or Standalone
TAA Compliant

  32-Port Model : LCDK1044



*Click for enlarged view

     Cat6 KVM Features & Benefits
  • 8 Port Cat6 KVM switch, supports DisplayPort, HDMI, DVI & VGA Video Input
  • Local console & KVM ports support resolution up to 1920x1200
  • Port switching via OSD, front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required
  • Cascade levels up to 8 KVM switches
  • Mix PC, server, Blade Server , SUN & MAC with Multi-Platform switch capability
  • Standalone KVM or 1U Rack Mount
  • Multi lingual on screen display menu
  • TAA Compliant
    Switch Features & Options
  • 12V, 24V , 48V ,110V , 125V, 250V DC Power options
KVM

Number of ports

 8

Connector

 RJ-45

Connectivity

 DP / HDMI / DVI-D / VGA dongle via Cat5 / Cat6 cable to server up to 40 meters (132 feet)

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Expansion

 Up to 256 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Input device

 2 x USB type A for keyboard & mouse

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

Power
Input  100 or 240V AC at 50 or 60 Hz via IEC type cord
 OR AC / DC power adapter 12V@3.3A (optional)
Consumption  Max. 22 Watt
Option DC  12V / 24V / 48V /110V / 125V / 250V DC input
Regulatory Approval
  FCC, CE , RoHS2, REACH, TAA Compliant
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  20%~90%, non condensing(Operation)
 5%~90%, non condensing(Storage)
Shock  10G acceleration   (11ms duration)
Vibration   10~300Hz / 0.5G RMS randon vibration
Mechanical

Dimension

  17.4" x 6.7" x 1.73" (W x D X H)
  443mm x 171mm x 44mm

Weight  Approximately 6 lbs / 2.6 kg
    KVM port & Cat6 dongle connection

*Click for enlarged view

    KVM Cascade

*Click for enlarged view

 Download Product Sheet
 Download User Manual

ACCESSORIES -

Part #    Description
LCD-A2001

Price or Buy Online >>
VGA - USB Dongle
  • To connect DB-15 connector to the computer’s video card
  • To connect USB connector to the computer’s USB port
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor

  • *Click for enlarged view
    LCD-A2002

    Price or Buy Online >>

     VGA - PS/2 Dongle
  • To connect DB-15 connector to the computer’s video card
  • To connect PS/2 keyboard connector to the computer’s
        keyboard port
  • To connect PS/2 mouse connector to the computer’s
        mouse port
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor

  • *Click for enlarged view
    LCD-A2003

    Price or Buy Online >>

    DVI - USB Dongle
  • To connect DVI-D connector to the computer’s video card
  • To connect USB connector to the computer’s USB port
  • Increased distance of up to132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Reduces clutter of multiple cables between tiers
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Connect Cat5/5e/6 cabling from the switch to the
        keyboard, video & mouse ports of the target server

  • *Click for enlarged view
    LCD-A2004

    Price or Buy Online>>

    HDMI - USB Dongle
  • To connect Cat5 /Cat5e / Cat6 cabling from the switch to
        KVM (Keyboard, Video & Mouse ) ports of the target server
  • Increased distance of up to 132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Reduces clutter of multiple cables between tiers

  • *click on photo for details
    LCD-A2005

    Price or Buy Online>>

    DisplayPort - USB Dongle
  • To connect Cat5 /Cat5e / Cat6 cabling from the switch to
        KVM (Keyboard, Video & Mouse ) ports of the target server
  • Increased distance of up to 132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Reduces clutter of multiple cables between tiers

  • *click on photo for details
    LCD-A1019

    More Details or Buy Online>>
    6-ft Combo Cascade cable

    *Click for enlarged view

    Optional Peripheral & Accessory
    - Cable and Dongle - DC Power Input ( 12V / 24V / 48V /110V /125V / 250V )
    Customer who ordered this product may also order these :
    - Rack Keyboard - Wall Rack Mount



    Ordering  Information

    Part Number  Description
     LCDK2001
     Price:$336
    8-Port High Density Cat6 KVM Switch , 1U Rackmountable. Dongles are Optional.
    Optional DC Input Power
    -DC12
    Price : $171
    Add 12V DC power supply
    -DC24
    Price : $171
    Add 24V DC power supply
    -DC48
    Price : $171
    Add 48V DC power supply
    -DC110
    Price : $357
    Add 110V DC power supply
    -DC125
    Price : $357
    Add 125V DC power supply






    Availability: Usually ships the next business day

    LCDK2001$336.00

    Optional HDMI Dongle, LCD-A2004:

    Optional DVI Dongle, LCD-A2003:

    Optional DisplayPort Dongle, LCD-A2005:

    Optional VGA-USB Dongle, LCD-A2002:

    Optional VGA-PS2 Dongle, LCD-A2001:

    Optional Cascade Cable , LCD-A1019:

    Optional DC Power:
