1U SUN Solaris Rack KVM Console with Keyboard, Video Monitor and Mouse:
Model # LCD1U19-13

NOVA 1U SUN KVM Rack Console w/ 19" Industrial Grade Widescreen LCD
UL Listed & TAA Compliant
Optional DB-15 KVM / CAT6 KVM / DVI KVM / USB Hub KVM / Multi-User Matrix KVM
Optional 1 / 2 / 3 / 4 Simultaneous Users by Local / Remote Access VIA CAT6 or Over IP

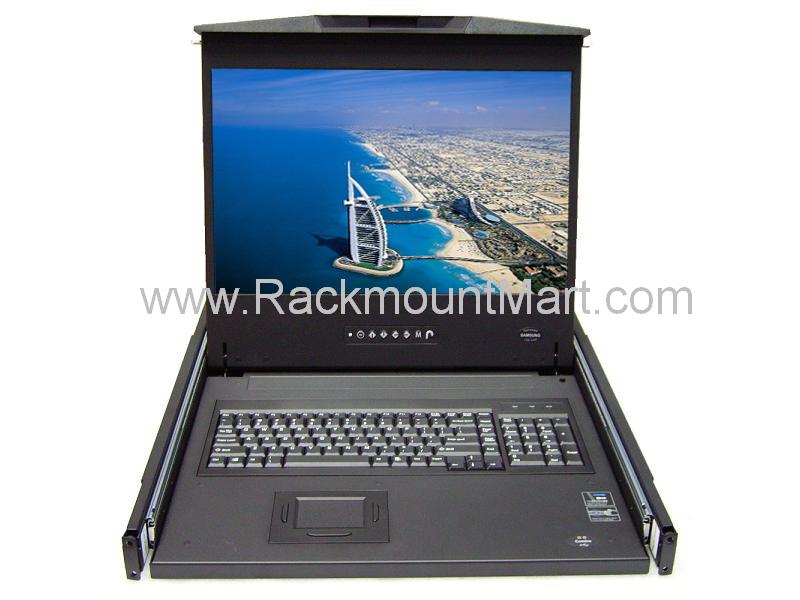

Widescreen Sun KVM Console LCD1U19-13-n


*click on photo for enlarged view

 Drawer Features & Display Benefits
  • 1U 19" Widescreen Industrial Grade LCD console drawer
  • Direct Support for SUN Micro 1152 x 900 native resolution

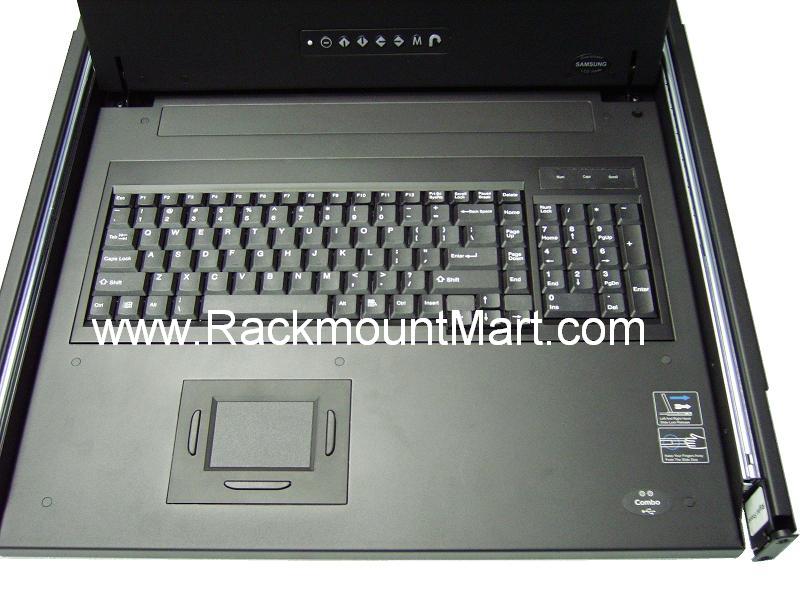

  • 104-key keyboard with SUN hotkeys
  • Short depth design of 18.1" (460mm ) only
  • Front USB port for device access ( USB Hub KVM only )
  • TAA compliant
Options
  • 250V , 115V , 110V , 48V, 24V or 12VDC power
  • 2 post rack mounting available
General Information

Form Factor

1U Rack mounting on slide-out rails
LCD Screen

LCD Type

Industrial Grade Widescreen 19" TFT LCD Panel

Display Size

19 inch diagonal

Max Resolutions

1152 x 900 ( Direct ), 1440 x 900 ( Native )

Backlight

CCFL

Active area (mm)

408 x 255

Contrast ratio

1000 : 1

Brightness

250cd/ m2

Panel color

16.7M

Viewing angle

160 degree x 160 degree

Signal Input

VGA and DVI-D

LCD MTBF

30,000 hrs
Keyboard & Pointing Device

Model Sn / Sb
(SUN)

Sun Keyboard with Hot-Keys , Numeric Keypad & Touchpad or Trackball
Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
 Environmental
   Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Mechanical

Product Dimension
( W x D x H )

 Single Port KVM Console :
441.6(W) x 460(D) x 44(H)mm /
17.4(W) x 18.1(D) x 1.73(H)inch
Multiport KVM Console :
441.6(W) x 580(D) x 44(H)mm /
17.4(W) x 22.8(D)x 1.73(H)inch
Product Weight Single Port KVM Console :25lbs / 11.5kgs
Multiport KVM Console :28lbs / 12.5 kgs
Regulatory Approval
cUL, FCC, CE, RoHS Compliant, REACH,
TAA Compliant
Dimension

*click on above pictures for enlarged view

Construction


*click on above pictures for enlarged view

Product Sheet
Product Sheet Download Product Sheet
User Manual
User Manual Download User Manual

Free Ground Shipping *Click for details

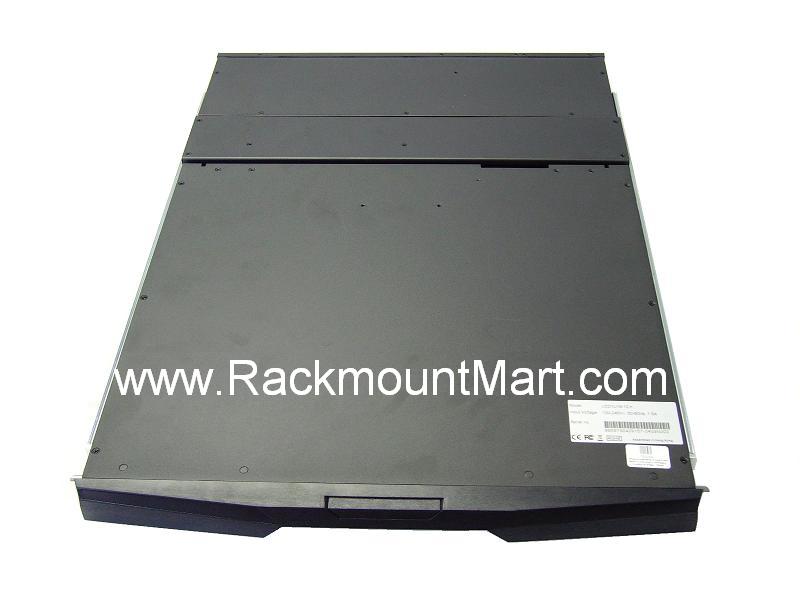

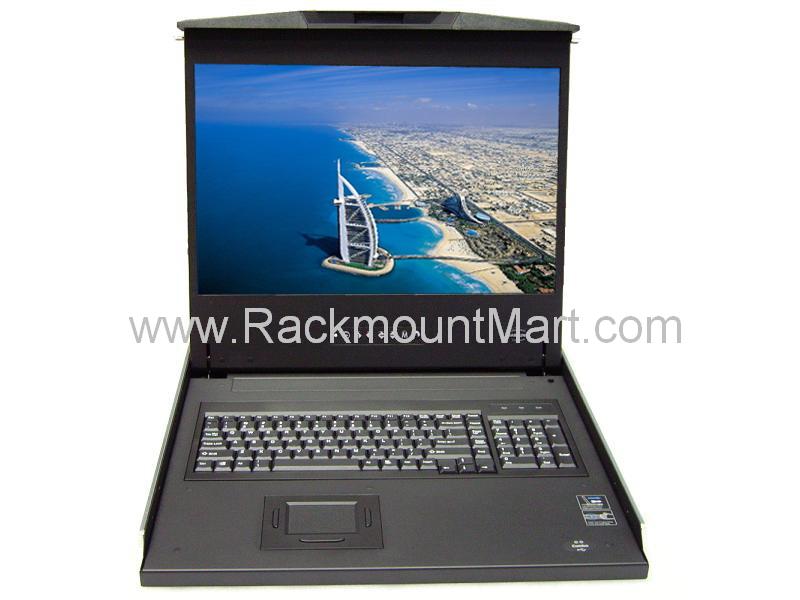

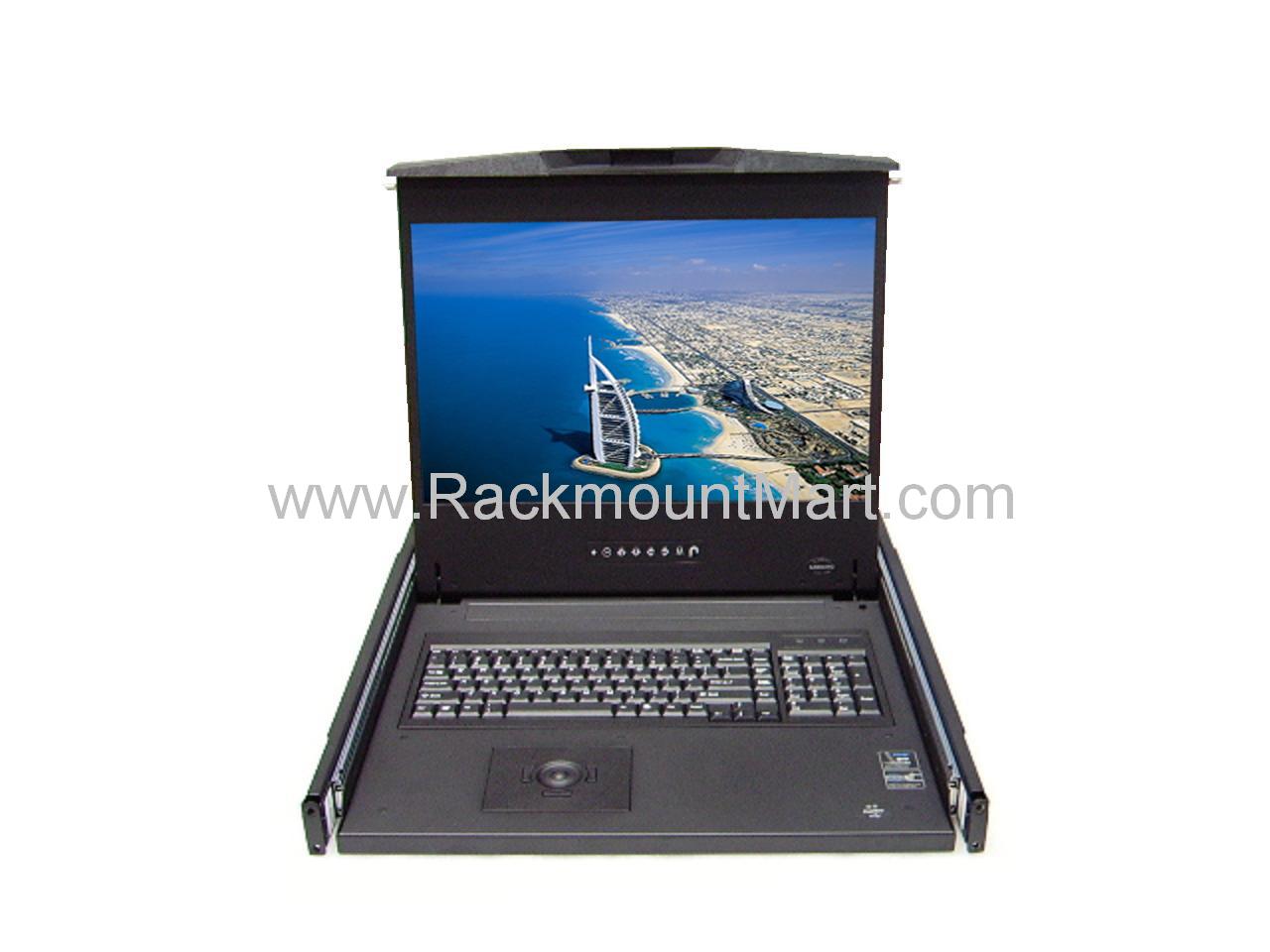

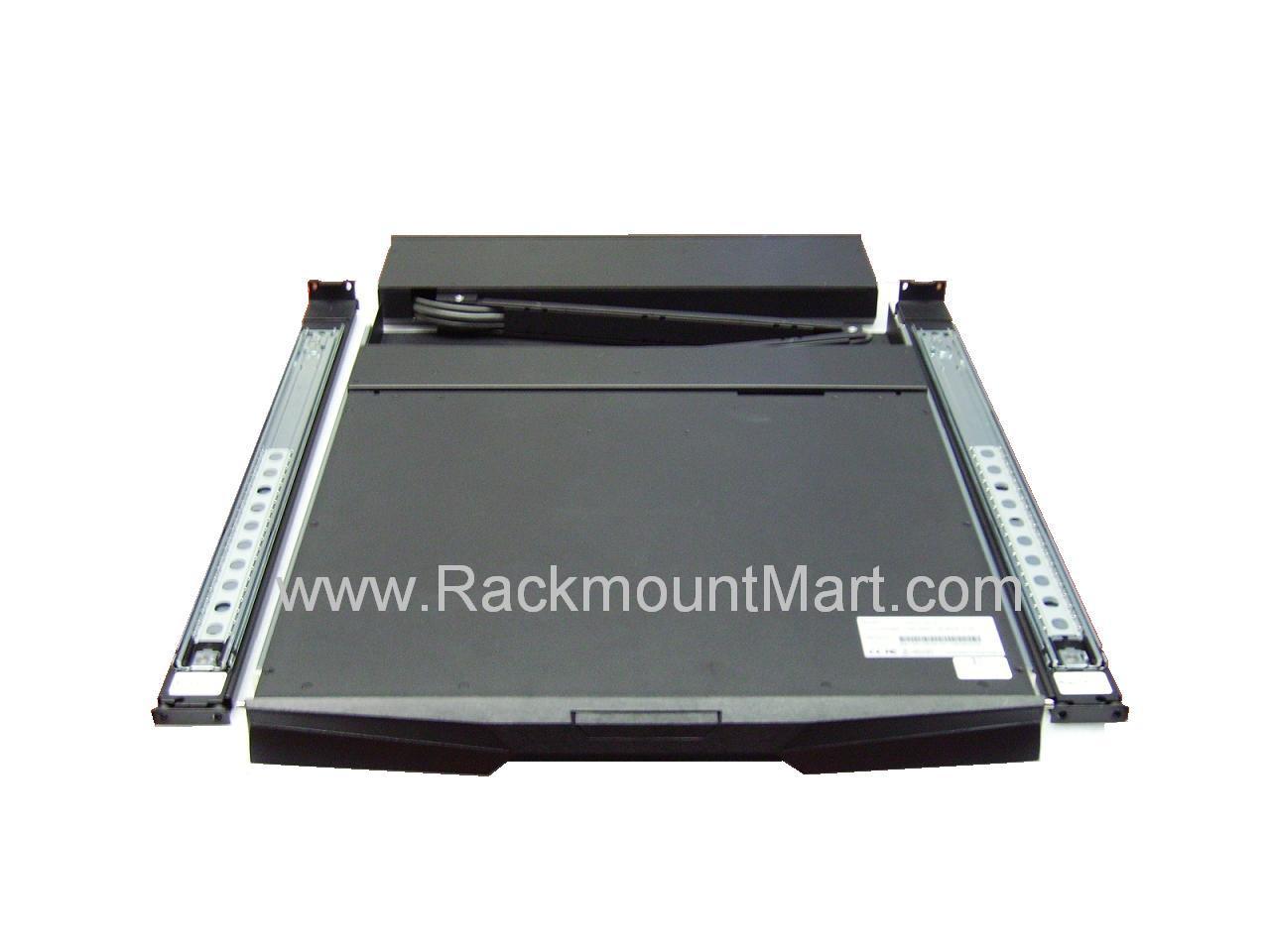

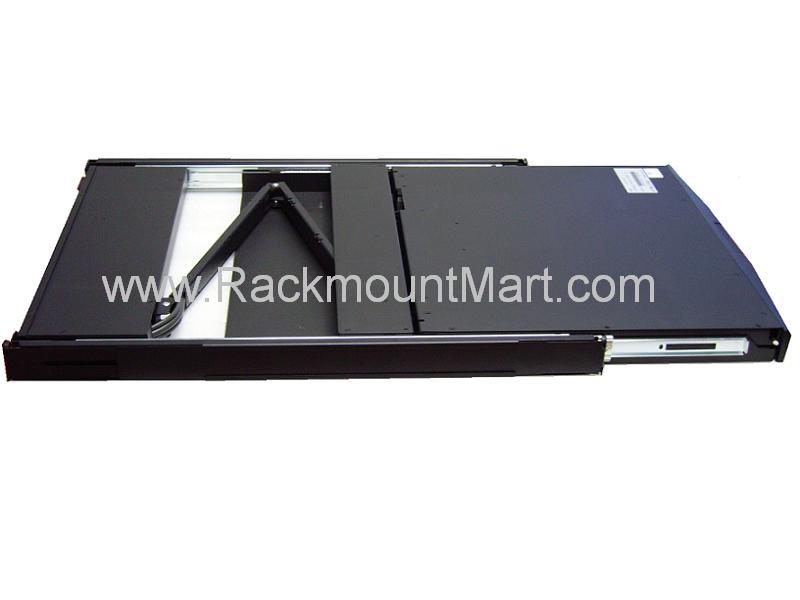

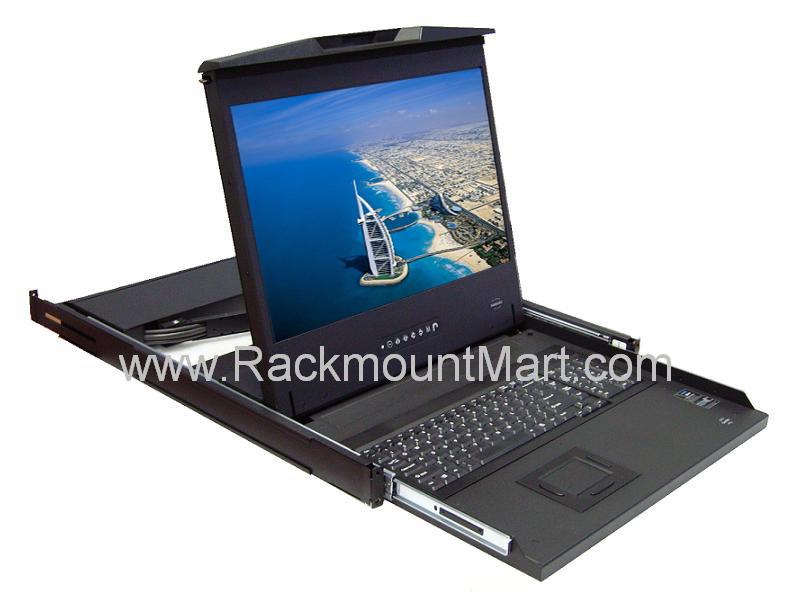

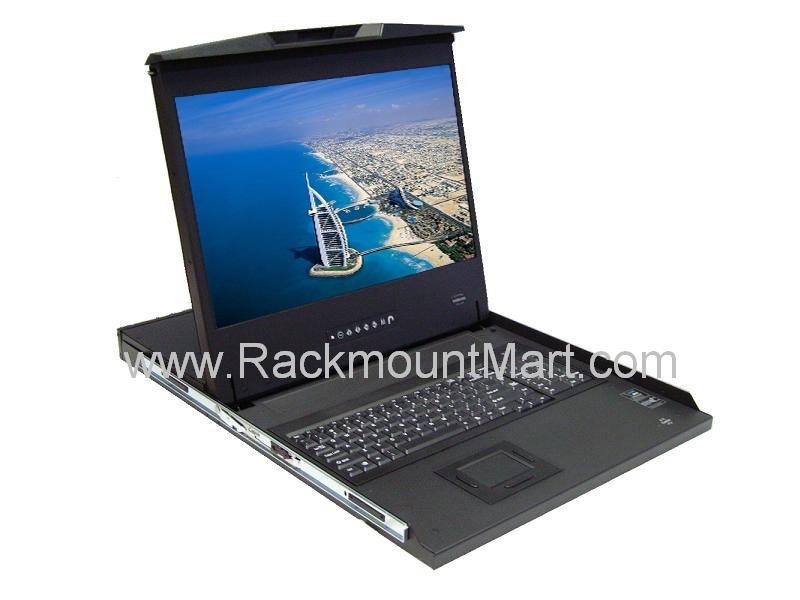

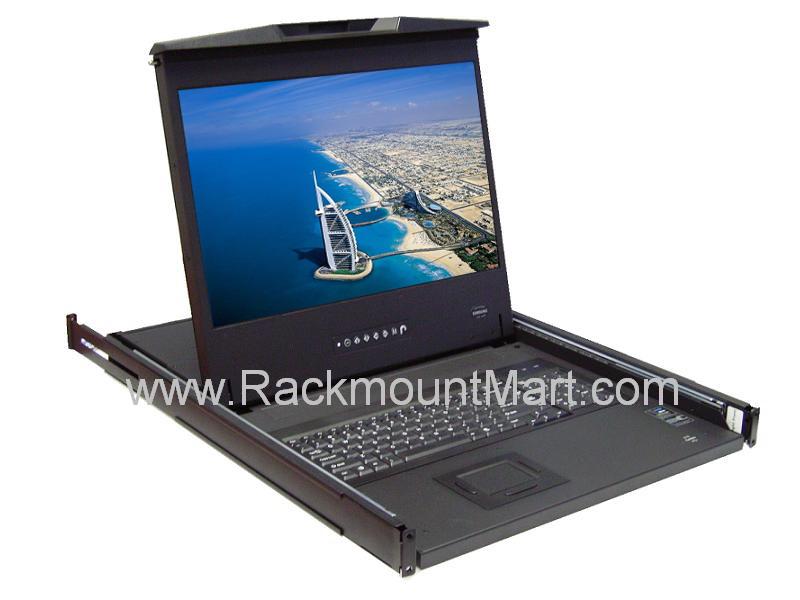

More Photos, click on the following for enlarged view:



Port Type KVM Version No. of Port Cascade Capacity No. of Console User Manual
DB-15 KVM ( 1 Active User )
DB-15 USB KVM 8 / 16 Up to 8 level 1 x Local Console User Manual
DB-15 USB KVM 8 / 16 Up to 8 level 1 x Local Console +
1 x Remote Console ( Via CAT6 )		 User Manual
DB-15 USB KVM 8 / 16 Up to 8 level 1 x Local Console +
1 x Remote Console ( Over IP )		 User Manual
CAT6 KVM ( 1 Active User )
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console User Manual
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
1 x Remote Console( Via CAT6 )		 User Manual
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
1 x Remote Console ( Over IP )		 User Manual
DVI-D KVM ( 1 Active User )
DVI-D USB & Audio KVM
**External Speakers Only**		 12 1 level 1 x Local Console User Manual
USB Hub KVM ( 1 Active User )
DB-15 USB Hub KVM 8 / 16 1 level 1 x Local Console User Manual
DB-15 USB Hub KVM 8 / 16 1 level 1 x Local Console +
1 x Remote Console ( Via CAT6 )		 User Manual
DB-15 USB Hub KVM 8 / 16 1 level 1 x Local Console +
1 x Remote Console ( Over IP )		 User Manual
Matrix KVM ( 2 ~ 4 Active Users )
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console ( Via CAT 6 )		 User Manual
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP )		 User Manual
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console (Via CAT6 )		 User Manual
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP )		 User Manual




Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - Cables & Dongles
- DC Power Input ( 12V / 24V / 48V / 110V / 125V / 250V )
Customer who ordered this product may also order these :
- Server Rack Cabinet
- Wall Mount Rack		 - KVM Switch
- Rack Mount Keyboard
- 2 Post / 4 Post Steel Rack - Rack Shelf
- Rack Light
- 2 Post / 4 Post Aluminum Rack - Intellignet Rack Cabinet Door Lock Handle
- PDU / Power Distribution Unit - Remote / Network Control for Rack Cabinet Access
- Rack / Cabinet / Wall Mount Cooling Fans - Data Center Environmental Monitoring

 ORDERING INFORMATION FOR NOVALCD1U19-13:
1U RACK 19" WIDESCREEN INDUSTRIAL GRADE LCD SUN KVM CONSOLE WITH VARIOUS KVM OPTIONS

DB-15 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
LOCAL CONSOLE ONLY
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console / Single Port KVM 1
1 x USB KVM cable
Touchpad LCD1U19-13-n $917
Trackball LCD1U19-13-b
1 Local Console / MultiPort KVM 8
8 x USB KVM cable
Touchpad LCD1U19-13-8KVM-n-u $1277
Trackball

LCD1U19-13-8KVM-b-u
16
16 x USB KVM cable
Touchpad LCD1U19-13-16KVM-n-u $1466
Trackball

LCD1U19-13-16KVM-b-u
LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort KVM 8
8 x USB KVM cable
Touchpad LCD1U19-13-8KVM2-n $1491
Trackball LCD1U19-13-8KVM2-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-16KVM2-n $1680
Trackball LCD1U19-13-16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-8KVM2IP-n $1641
Trackball LCD1U19-13-8KVM2IP-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-16KVM2IP-n $1830
Trackball LCD1U19-13-16KVM2IP-b
CAT 6 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
LOCAL CONSOLE ONLY
No. of Console /
KVM Choice		 No. of
KVM port		 Dongle Keyboard Part Number Price
1 Local Console / MultiPort CAT6 KVM 8
Optional
Touchpad LCD1U19-13-U8KVM-n $1253
Trackball LCD1U19-13-U8KVM-b
16
Optional
Touchpad LCD1U19-13-U16KVM-n $1331
Trackball

LCD1U19-13-U16KVM-b
32
Optional
Touchpad LCD1U19-13-U32KVM-n $1524
Trackball

LCD1U19-13-U32KVM-b
LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice		 No. of
KVM port		 Dongle Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort KVM 8
Optional
Touchpad LCD1U19-13-U8KVM2-n $1467
Trackball LCD1U19-13-U8KVM2-b
16
Optional
Touchpad LCD1U19-13-U16KVM2-n $1546
Trackball

LCD1U19-13-U16KVM2-b
32
Optional
Touchpad LCD1U19-13-U32KVM-n $1738
Trackball

LCD1U19-13-U32KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort KVM		 8
Optional
Touchpad LCD1U19-13-U8KVM2IP-n $1617
Trackball LCD1U19-13-U8KVM2IP-b
16
Optional
Touchpad LCD1U19-13-U16KVM2IP-n $1696
Trackball

LCD1U19-13-U16KVM2IP-b
32
Optional
Touchpad LCD1U19-13-U32KVM2IP-n $1888
Trackball

LCD1U19-13-U32KVM2IP-b
DVI KVM : 1 Active User
LOCAL CONSOLE ONLY
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console / MultiPort DVI-D KVM 12
6 x DVI-D KVM cable
Touchpad LCD1U19-13-12DVI-n $1694
Trackball LCD1U19-13-12DVI-b
USB Hub KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
LOCAL CONSOLE ONLY
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console / MultiPort USB Hub KVM 8
8 x USB KVM cable
Touchpad LCD1U19-13-H8KVM-n $1430
Trackball

LCD1U19-13-H8KVM-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-H16KVM-n $1707
Trackball

LCD1U19-13-H16KVM-b
LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6) /
MultiPort USB Hub KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-H8KVM2-n $1644
Trackball LCD1U19-13-H8KVM2-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-H16KVM2-n $1921
Trackball LCD1U19-13-H16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort USB Hub KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-H8KVM2IP-n $1794
Trackball LCD1U19-13-H8KVM2IP-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-16KVM2IP-n $2071
Trackball LCD1U19-13-16KVM2IP-b
Matrix DB-15 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
2 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix DB-15 KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-M82-n Call for price
Trackball LCD1U19-13-M82-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-M162-n Call for price
Trackball LCD1U19-13-M162-b
3 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-M83-n Call for price
Trackball LCD1U19-13-M83-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-M163-n Call for price
Trackball LCD1U19-13-M163-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-M83IP-n Call for price
Trackball LCD1U19-13-M83IP-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-M163IP-n Call for price
Trackball LCD1U19-13-M163IP-b
4 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		 KVM Cable Keyboard Part Number Price
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-M84-n Call for price
Trackball LCD1U19-13-M84-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-M164-n Call for price
Trackball LCD1U19-13-M164-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-M84IP-n Call for price
Trackball LCD1U19-13-M84IP-n
16
16 x USB KVM cable
Touchpad LCD1U19-13-M164IP-n Call for price
Trackball LCD1U19-13-M164IP-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix DB-15 KVM		 8
8 x USB KVM cable
Touchpad LCD1U19-13-M84IP2-n Call for price
Trackball LCD1U19-13-M84IP2-b
16
16 x USB KVM cable
Touchpad LCD1U19-13-M164IP2-n Call for price
Trackball LCD1U19-13-M164IP2-b
Matrix CAT6 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
2 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		 Dongle Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix CAT6 KVM		 16
Optional
Touchpad LCD1U19-13-MU162-n Call for price
Trackball LCD1U19-13-MU162-b
32
Optional
Touchpad LCD1U19-13-MU322-n Call for price
Trackball LCD1U19-13-MU322-b
3 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		 Dongle Keyboard Part Number Price
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM		 16
Optional
Touchpad LCD1U19-13-MU163-n Call for price
Trackball LCD1U19-13-MU163-b
32
Optional
Touchpad LCD1U19-13-MU323-n Call for price
Trackball LCD1U19-13-MU323-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM		 16
Optional
Touchpad LCD1U19-13-MU163IP-n Call for price
Trackball LCD1U19-13-MU163IP-b
32
Optional
Touchpad LCD1U19-13-MU323IP-n Call for price
Trackball LCD1U19-13-MU323IP-b
4 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		 Dongle Keyboard Part Number Price
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM		 16
Optional
Touchpad LCD1U19-13-MU164-n Call for price
Trackball LCD1U19-13-MU164-b
32
Optional
Touchpad LCD1U19-13-MU324-n Call for price
Trackball LCD1U19-13-MU324-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM		 16
Optional
Touchpad LCD1U19-13-MU164IP-n Call for price
Trackball LCD1U19-13-MU164IP-b
32
Optional
Touchpad LCD1U19-13-MU324IP-n Call for price
Trackball LCD1U19-13-MU324IP-n
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix CAT6 KVM		 16
Optional
Touchpad LCD1U19-13-MU164IP2-n Call for price
Trackball LCD1U19-13-MU164IP2-b
32
Optional
Touchpad LCD1U19-13-MU324IP2-n Call for price
Trackball LCD1U19-13-MU324IP2-b
Optional DC Power
-DC12
Price : $171		 Add 12V DC power input (Depth will be extended from 460mm to 530mm)
-DC24
Price : $171		 Add 24V DC power input (Depth will be extended from 460mm to 530mm)
-DC48
Price : $171		 Add 48V DC power input (Depth will be extended from 460mm to 530mm)
-DC110
Price : $357		 Add 110V DC power input (Depth will be extended from 460mm to 530mm)
-DC125
Price : $357		 Add 125V DC power input (Depth will be extended from 460mm to 530mm)
-DC250
Call for price		 Add 250V DC power input (Depth will be extended from 460mm to 530mm)
Optional Dongles
LCD-A2001
Price : $43		 VGA-USB Dongle
LCD-A2002
Price : $43		 VGA-PS/2 Dongle
LCD-A2003
Price : $68		 DVI-USB Dongle
Optional Cables
LCD-A3004
Price : $20		 6-ft DVI Console Cable
(Server side : DVI-D + USB , KVM Console side : DVI-D + DB-15 (Keyboard + Mouse) without audio function)
LCD-A3005
Price : $20		 6-ft DVI KVM Cable
(Server side : DVI-D + USB + audio , KVM Console side : DVI-D + USB)
LCD-A3006
Price : $29		 15-ft DVI KVM Cable
LCD-A3001
Price : $13		 6-ft Combo PS/2 USB KVM Cable
LCD-A3002
Price : $20		 10-ft Combo PS/2 USB KVM Cable
LCD-A3003
Price : $26		 15-ft Combo PS/2 USB KVM Cable
LCD-A1014
Price : $13		 6-ft USB 3-in-1 KVM Cable
LCD-A1015
Price : $20		 10-ft USB 3-in-1 KVM Cable
LCD-A1016
Price : $26		 15-ft USB 3-in-1 KVM Cable
LCD-A1004
Price : $13		 6-ft PS/2 3-in-1 KVM Cable
LCD-A1005
Price : $20		 10-ft PS/2 3-in-1 KVM Cable
LCD-A1006
Price : $26		 15-ft PS/2 3-in-1 KVM Cable




Availability: Usually ships the next business day

LCD1U19-13 $917.00


MODEL

Single Port Combo KVM:


Single Console Multiport DB-15 KVM:


Single Console Multiport CAT6 KVM:


Single Console 12-Port DVI-D KVM ::


Single Console Multiport USB Hub KVM:


2 Consoles ( Local Console + Remote Console Via CAT6 ) DB-15 KVM :


2 Consoles ( Local Console + Remote Console Over IP) DB-15 KVM:


2 Consoles ( Local Console + Remote Console Via CAT6 ) CAT6 KVM:


2 Consoles ( Local Console + Remote Console Over IP ) CAT6 KVM:


2 Consoles ( Local Console + Remote Console Via CAT6 ) USB Hub KVM :


2 Consoles ( Local Console + Remote Console Over IP ) USB Hub KVM :

Optional DC power :

Optional Cables:

Optional Dongle:









     For more information, please visit our company web site at
    https://www.rackmountmart.com/



Prices and availability subject to change without notice. Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.



 Copyright 2002-2022 SYNERGY GLOBAL TECHNOLOGY INC. All rights reserved.
