7U Rack mount 17" Color TFT LCD Monitors
  |
| * Click on above photos to enlarge |
Features :
- 17" TFT LCD panel
- Rotate Angle:Up Down:15°
- Viewing angle - Top80°, Bottom65°,Left/Right70°
- High Resolution - 1280(W)×1024(H)
- On Screen Display (OSD)
|
|
|

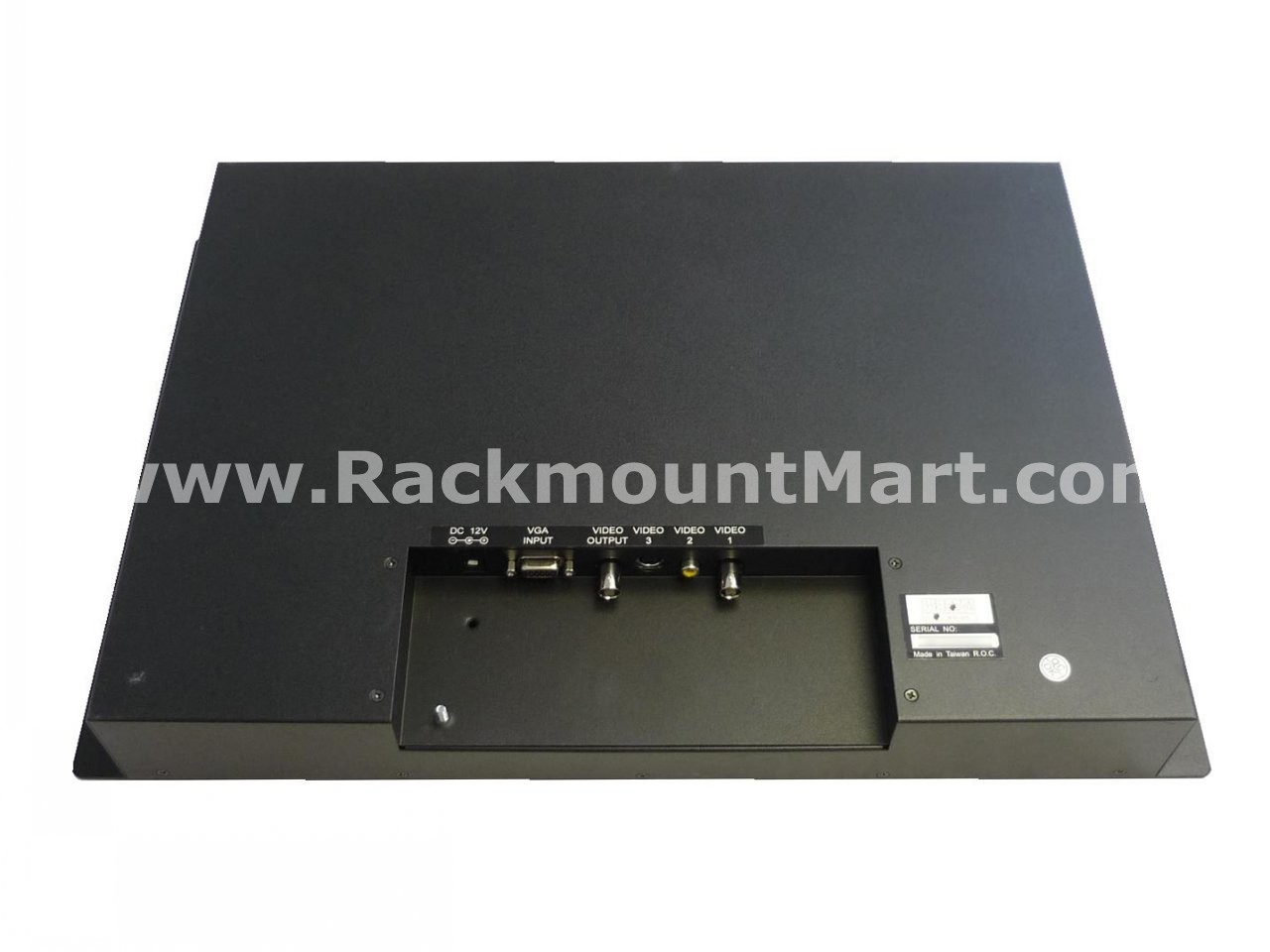

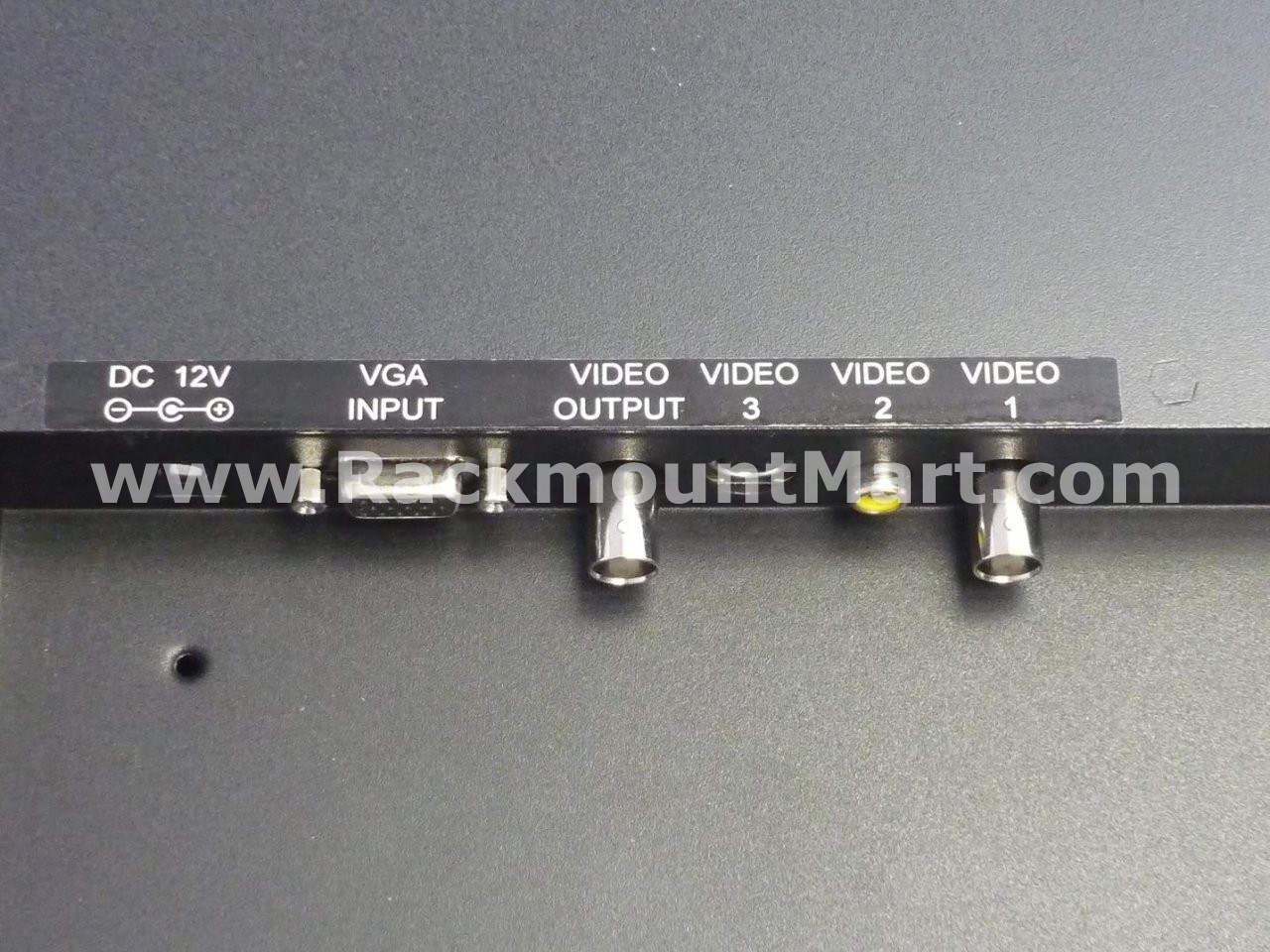

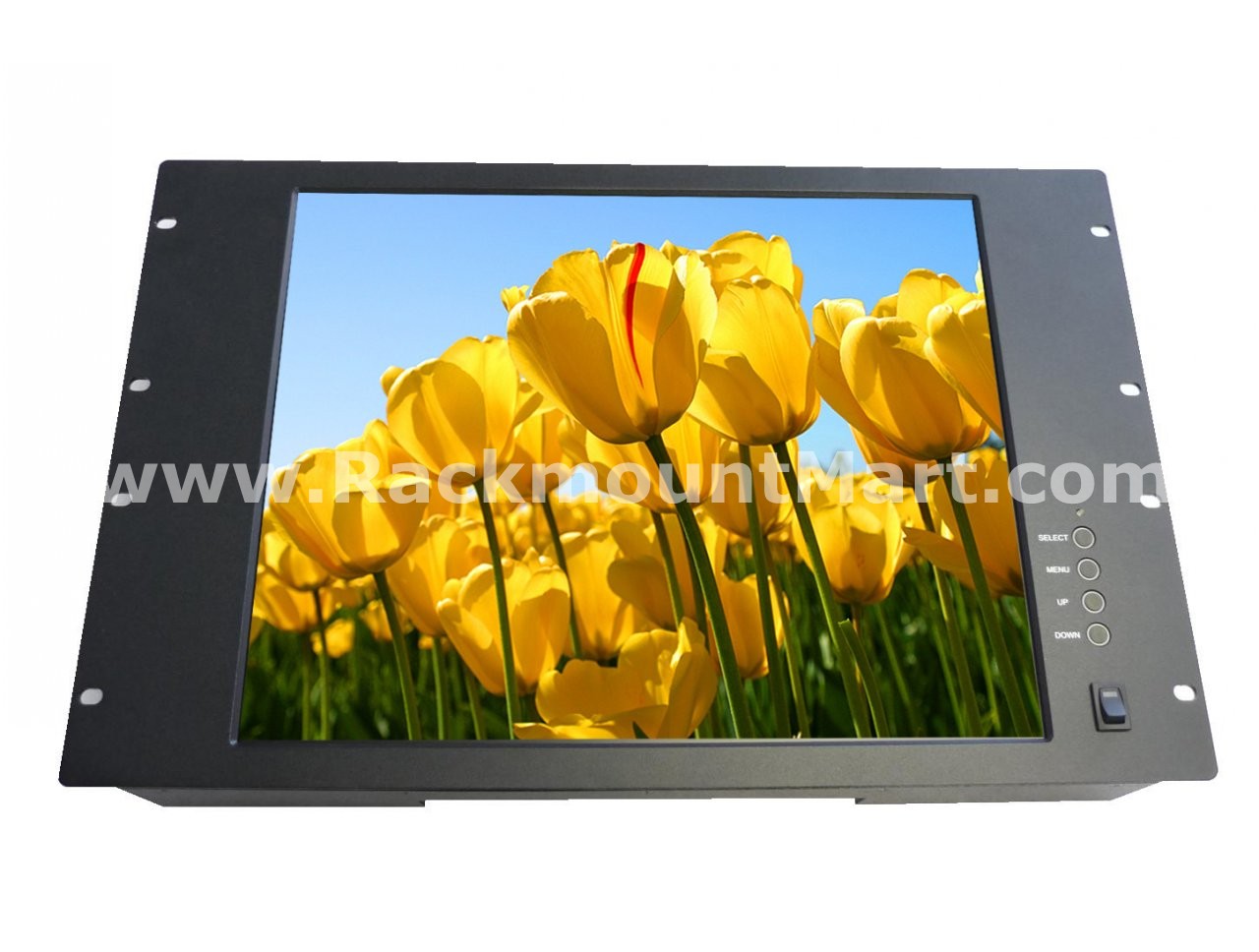

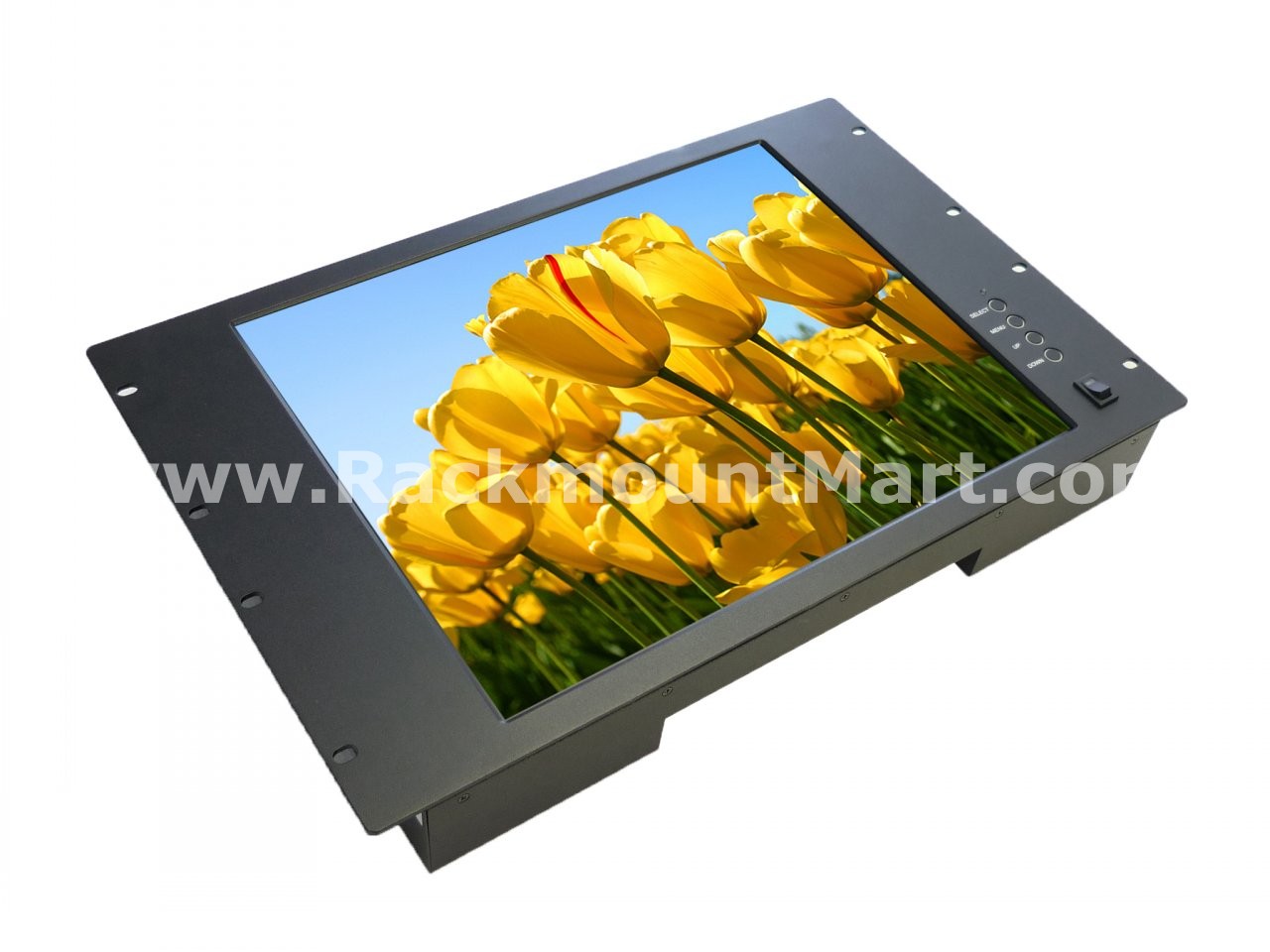

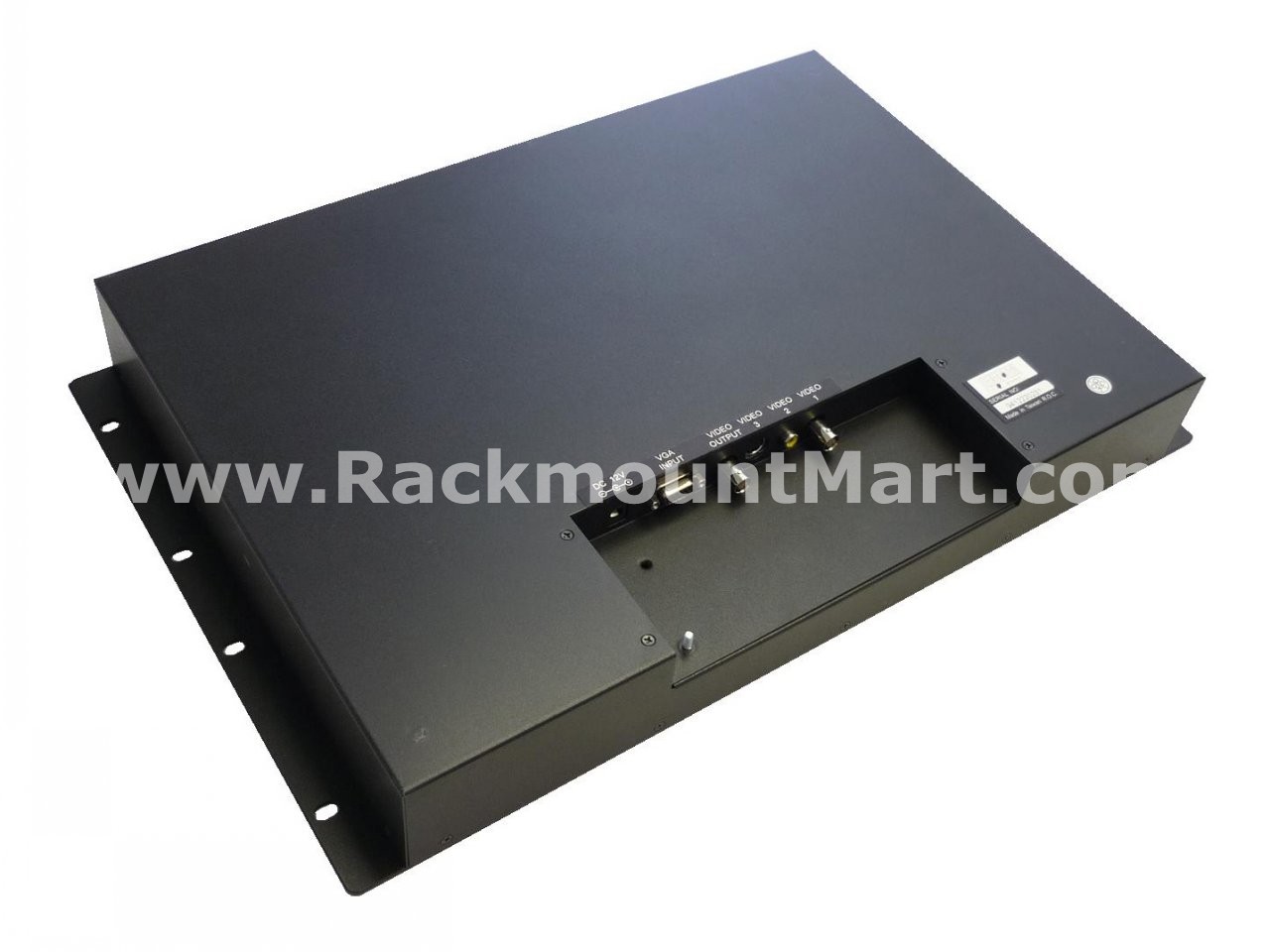

More photos (click to enlarge )
|
| Dimensions |
483mm (W) x 310mm (H) x 60mm(D) |
| Color |
Black |
| Display Type |
17" Color TFT |
| Resolution |
1280(W)×1024(H) |
| Pixel Pitch(mm) |
0.264 (W) × 0.264 (H) |
| Rotate Angle |
Up Down:15° |
| Brightness |
300 nit |
| Contrast Ratio |
450:1 |
| Viewing Angle |
Top80°, Bottom65°,Left/Right70° |
| Input Signal |
PC: VESA Mode 0.7Vp-p@750hm R,G,B,HS,VS
Video: 1Vp-p@750hm
BNC NTSC: ƒH: 15.75Khz PAL: ƒH: 15.625Khz
RCA ƒV: 60Hz ƒV: 50Hz
S-Video |
| Output Signal |
1.2Vp-p@750hm |
| Input Connector |
DSUB15P×1,BNC×1,RCA×1,S-Video×1 |
| Output Connector |
RCA×1 |
| Control function |
OSD |
| Power Source |
DC12V |
| Power Consumption |
32 Watts Maximum |
| Temperature |
Operating:0°C ~50°C
Storage: 0°C ~60°C |
|
Ordering information
| Part Number |
Description |
LCDR7U17-08
Price:$720 |
7U Rackmount 17" TFT LCD Monitor , black |
|
|
|
