*** This model is discontinued . Learn more about replacement model LCDR8U23-03 ***
8U Rack Mounted 23" Widescreen LCD Flat Panel Full HD
( Made in U.S.A. )
 |
| * Click on the photos to enlarge |
Features :
- Mounts in 8U of rack space with mounting brackets to fit 19” rack width.
- 23.0” 16:9 format TFT LCD display with full HD 1920 x 1080 resolution.
- Fast video response time provides sharp text and crisp motion.
- IPS LCD panel provides wide viewing angles (U/D, L/R).
- 1000:1 Static contrast ratio for superior detail.
|
 |
|
Free Ground Shipping *Click for details |
|

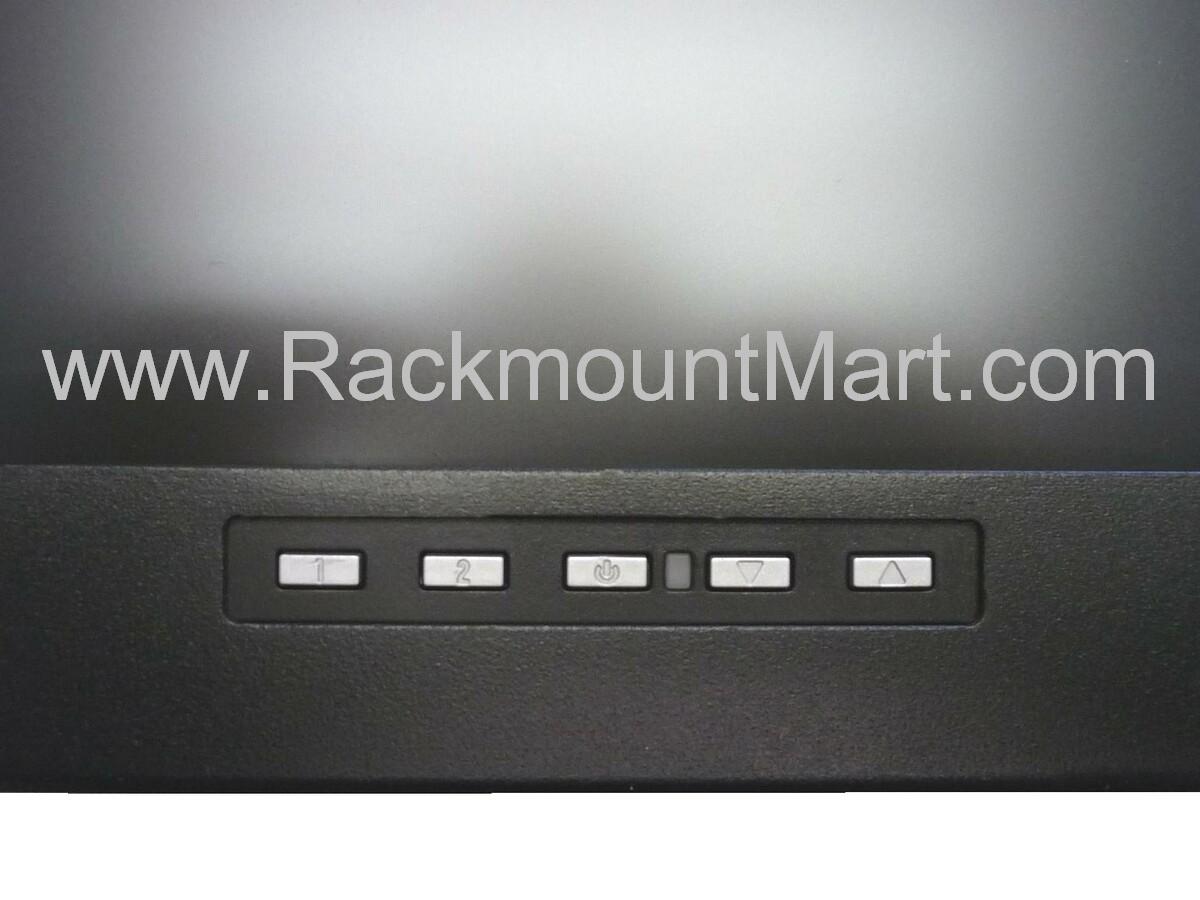

More Photos, click on the following for enlarged view:

|
| Dimensions |
22.75" (W) x 14.0" (H) x 3.0" (D) |
| Display Type |
23 " TFT active matrix with IPS LCD |
| Resolution |
Full HD Native Resolution : 1920 x 1080 maximum, 16.7M colors. |
| Response Time |
14 ms Typ |
| Brightness |
250 nits typical |
| Contrast Ratio |
1000:1 |
| Viewing Angle |
Horizontal: 178 degrees
Vertical: 178 degrees |
| Input Signal |
R.G.B. analog, DVI (with HDCP) |
| Syn Type |
Separate H/V, Composite H/V, SOG. |

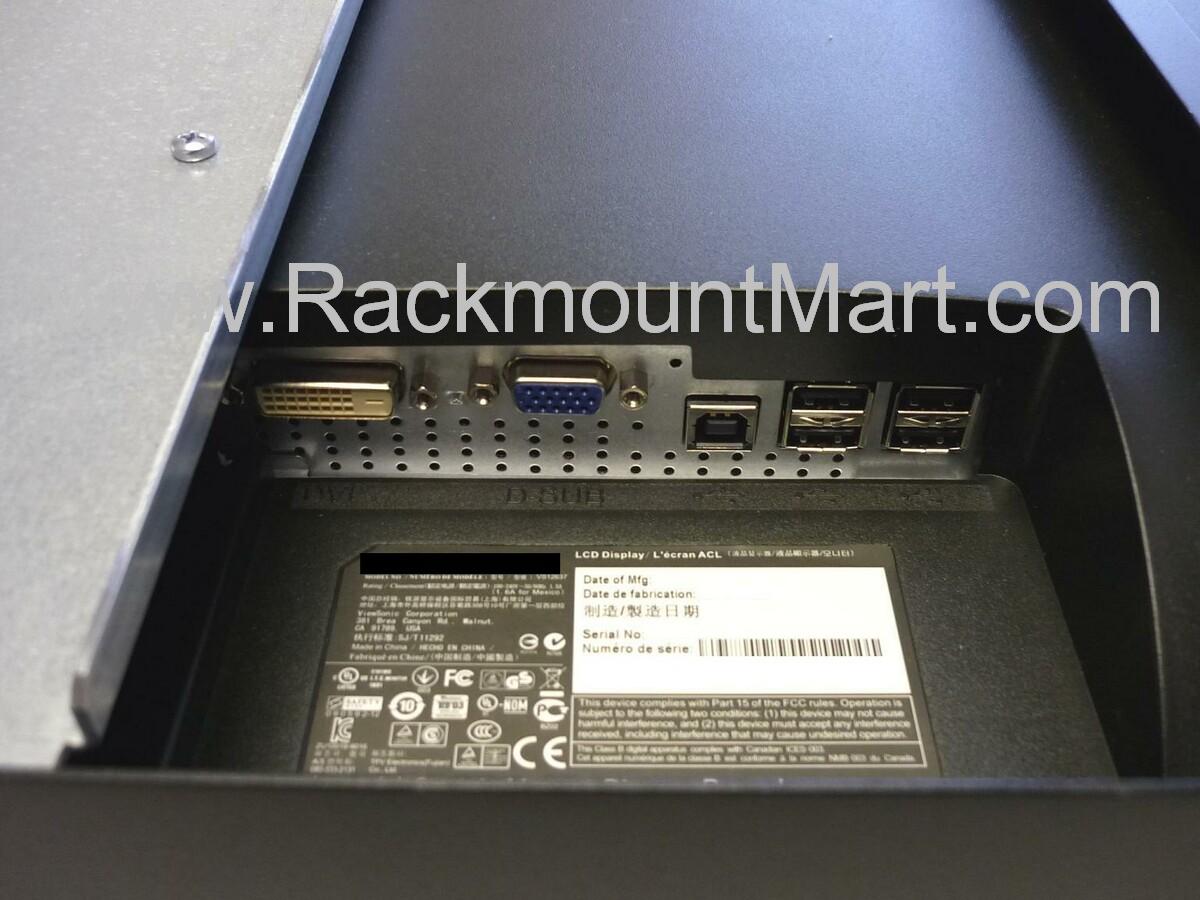

| Video Connector |
Analog: 15 pin D-sub.
Digital: DVI-D. |
| On-Screen Controls |
Brightness, Contrast, Position (Vert. & Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto Adjust |
| Plug & Play |
DDC2B |
| Power |
AC Input |
100-240VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
45 Watts typ |
| Environment |
| Temperature |
Operating: 10 to 40 degree Celsius |
| Humidity |
Operating: 20 to 90% RH (max) |
Ordering information
| Part Number |
Description |
| LCDR8U23-01-b |
8U Rackmount 23" Widescreen Full HD LCD Monitor , black, Made In USA |
|
|
|
