Short Depth 1U
Rack-mount 15" LCD Monitor Panel with Keyboard
Drawer
and Built-in Power supply
and OSD Pre-installed with 8 languages ,
optional 8 port KVM switch
( UL Listed, FCC & CE approved , RoHS Compliant )
*****This model is discontinued . Learn
more about replacement model LCD1U15-17 *****
| |
 |
|
 |
|
 |
|
LCD1U15-15-n |
|
LCD1U15-15-8kvm-n |

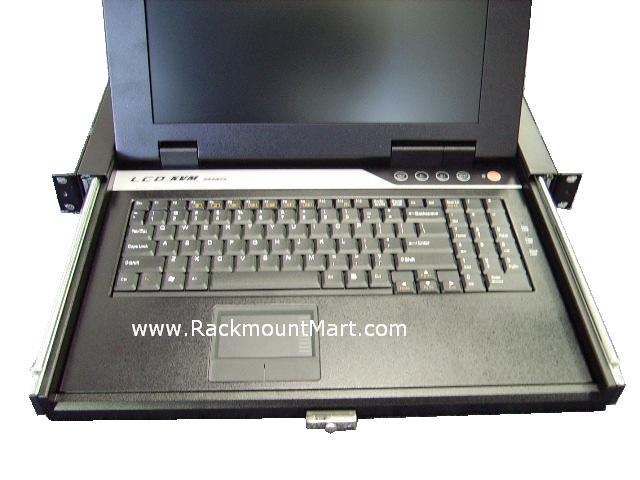

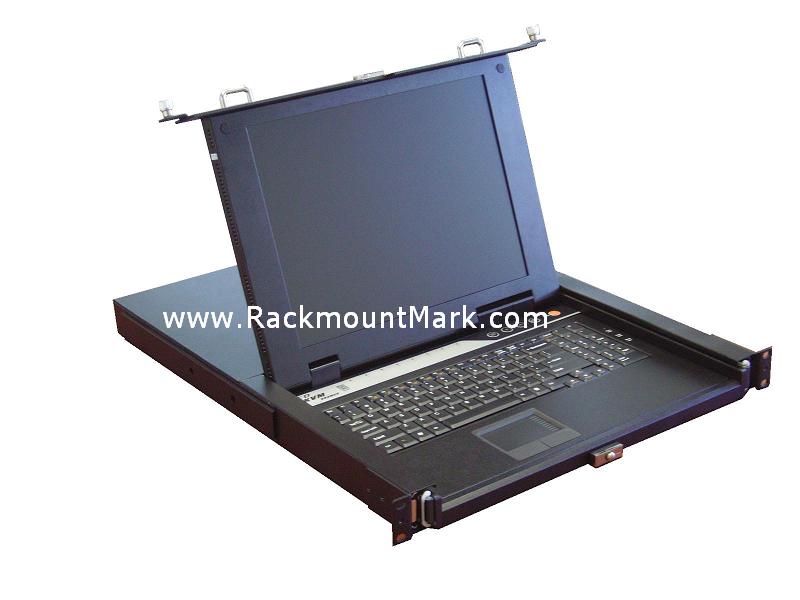

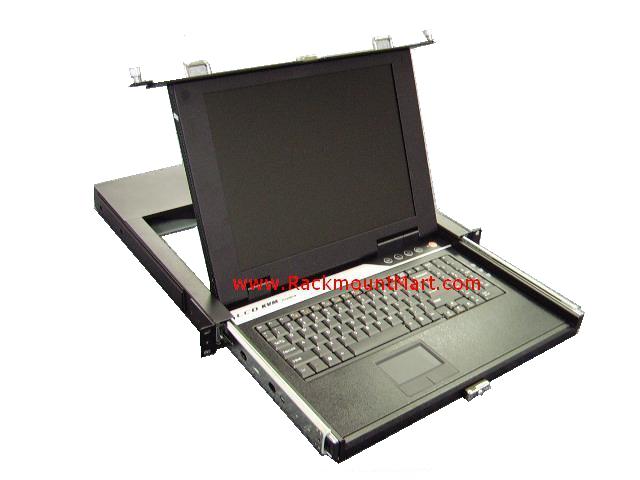

***Click on photos for enlarged view
- ** Short depth : Only 16.5 " for Single
port console
- ** Short slide rails but with Extra Long
extension
- ** OSD pre-installed with 8 different
languages : English ,Chinese traditional , Chinese simplify, Francais,
Japanese, Portugues , Deutsch, Italiano
- UL Listed , FCC and CE Approved
- 15" LCD screen / Keyboard / touchpad
integrated in 1U
- 105-key Notebook keyboard with
built-in 2 button touchpad
- Built-in Power Adapter
- Guide rail automatically lock and unlock
- KVM power switch automatically on / off
- Optional DC-48V power supply
|
|
I
|
II
|
|
Model No
|
LCD1U15-15-n
|
LCD1U15-15-8KVM-n |
|
Certification
|
UL Listed , FCC and CE Approved |
|
Ports switch for PC
|
Single port
|
8 ports
|
|
Dimension
(W x H x D)
|
17.5"(W) x 1.65" (H) x 16.58"(D)
448mm x 42mm x 420mm |
17.6" (W) x 1.65"(H) x 22.05"(D)
448mm x 42mm x 560mm |
|
Power Supply
|
90~264V AC/12V DC/48W / 47Hz
~63Hz /
MTPF : >100,000 hrs (25 degree Celsius )
|
90~264V AC/12V DC/48W / 47Hz
~63Hz /
MTPF : >100,000 hrs (25 degree Celsius )
|
|
Slide Rails
|
17" long , Support up to 31" deep rack
|
17" long , Support up to 34" deep rack |
|

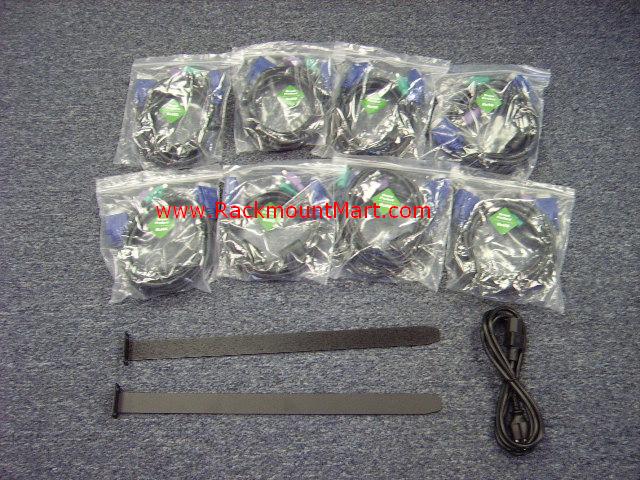

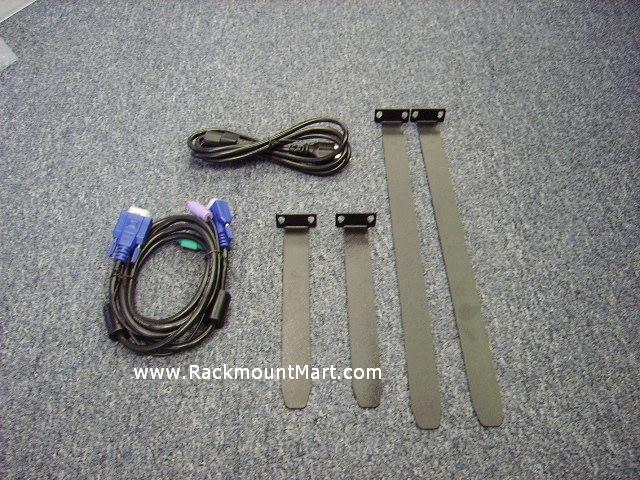

Extension Cable
|
3 IN 1 KVM Cable
|
3 IN 1 KVM Cable
|
|
Chassis
|
Heavy-duty Steel
|
|
Color
|
Black or Optional
|
|
Security Lock
|
Front
Panel Lock |
|
Operation Temperature
|
0 - 50?C (32-122°F)
|
|
Storage Temperature
|
-20 - 60?C
|
|
Display
|
|
Diagonal
|
|
|
Resolution
|
1024 x 768
|
|
Size
|
15"
|
|
Display Area
|
304.1(H ) x 228.1(V) |
|
Brightness
|
250 nit (typ)
|
|
Contrast Ratio
|
400:1
|
|
Number of Color
|
16.7 M
|
|
Pixel Pitch
|
0.297 x 0.297 (mm )
|
|
Power Consumption
|
20w (power on ) < 3w
(stand by ) |
|
MTFB
|
LCD > 50,000 hours ,
Backlight > 30,000 hrs |
|
Keyboard
|
|
Keyboard
|
Mechanical 105 keys (
88 +17 ) |
|
Touchpad
|
Built-in 2 button
touchpad with rayed life > 1 million uses |
|
Interface
|
|
|
Keystroke Life
|
10 million |
|
O/S Support
|
Microsoft Windows
9x/me/NT/2000/ XP |
|
