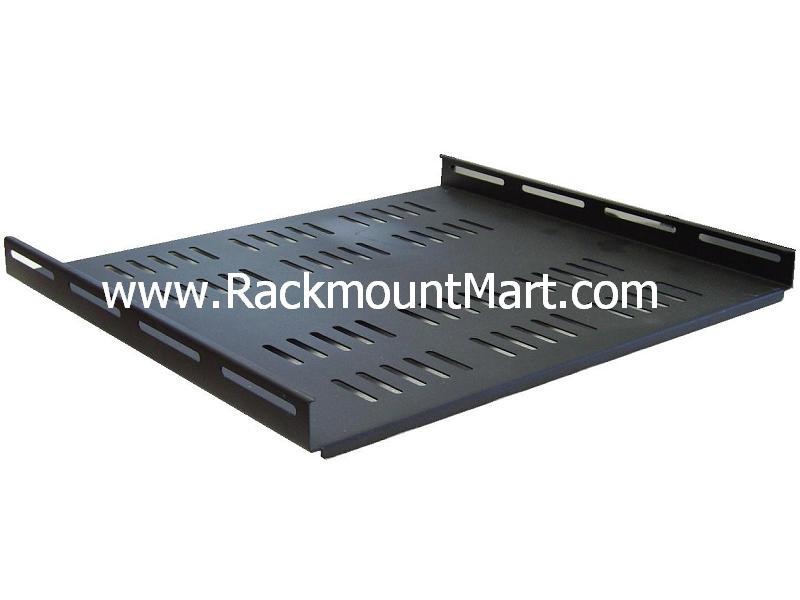

RA7030 1U rackmount Fixed Vented Shelf, Optional 14" to 31" Deep, TAA & NDAA Compliant

**Click on the photo to enlarge**

1U Rack mount Fixed RACK SHELF, DEPTH 14"~31"

Part # RA7030-14
VENTED FIXED RACK SHELF

Specification

BRACKET HIGH:1.75",PLATE DEPTH: 14 1/2" ( 370mm )
Unit Depth (overall) WxDxH: 19 5/16" x 14 1/2" x 1.75"/ 490 x 370 x 44.45mm

VENTED PLATE

220 LBS LOAD CAPACITY

Part # RA7030-17
VENTED FIXED RACK SHELF

Specification

BRACKET HIGH:1.75",PLATE DEPTH: 17 3/8" ( 441.32mm )
Unit Depth (effective) WxDxH: 19 5/16" x 17 3/8" x 1.75"/ 490 x 441.325 x 44.45mm
Unit Depth (overall) WxDxH: 19 5/16" x 17 3/8" x 1.75"/ 490 x 441.325 x 44.45mm

VENTED PLATE

220 LBS LOAD CAPACITY

Part # RA7030-23
VENTED FIXED RACK SHELF

Specification

BRACKET HIGH:1.75", PLATE DEPTH: 23" ( 580mm )
Unit Depth (effective) WxDxH: 19 5/16" x 23" x 1.75" / 490 x 580 x 44.45mm
Unit Depth (overall) WxDxH: 19 5/16" x 23" x 1.75" / 490 x 580 x 44.45mm

VENTED PLATE

220 LBS LOAD CAPACITY

Part # RA7030-27
VENTED FIXED RACK SHELF

Specification

BRACKET HIGH:1.75",PLATE DEPTH: 27 5/8" ( 701.68mm )
Unit Depth (effective) WxDxH: 19 5/16" x 27 5/8" x 1.75"/ 490 x 701.68 x 44.45mm
Unit Depth (overall) WxDxH: 19 5/16" x 27 5/8" x 1.75"/ 490 x 701.68 x 44.45mm

VENTED PLATE

220 LBS LOAD CAPACITY

Part # RA7030-31
VENTED FIXED RACK SHELF

Specification

BRACKET HIGH:1.75", PLATE DEPTH: 31.5" ( 800.1mm )
Unit Depth (effective) WxDxH: 19 5/16" x 31.5" x 1.75"/ 490x 800.1 x 44.45mm
Unit Depth (overall) WxDxH: 19 5/16" x 31.5" x 1.75"/ 490 x 800.1 x 44.45mm

VENTED PLATE

220 LBS LOAD CAPACITY
