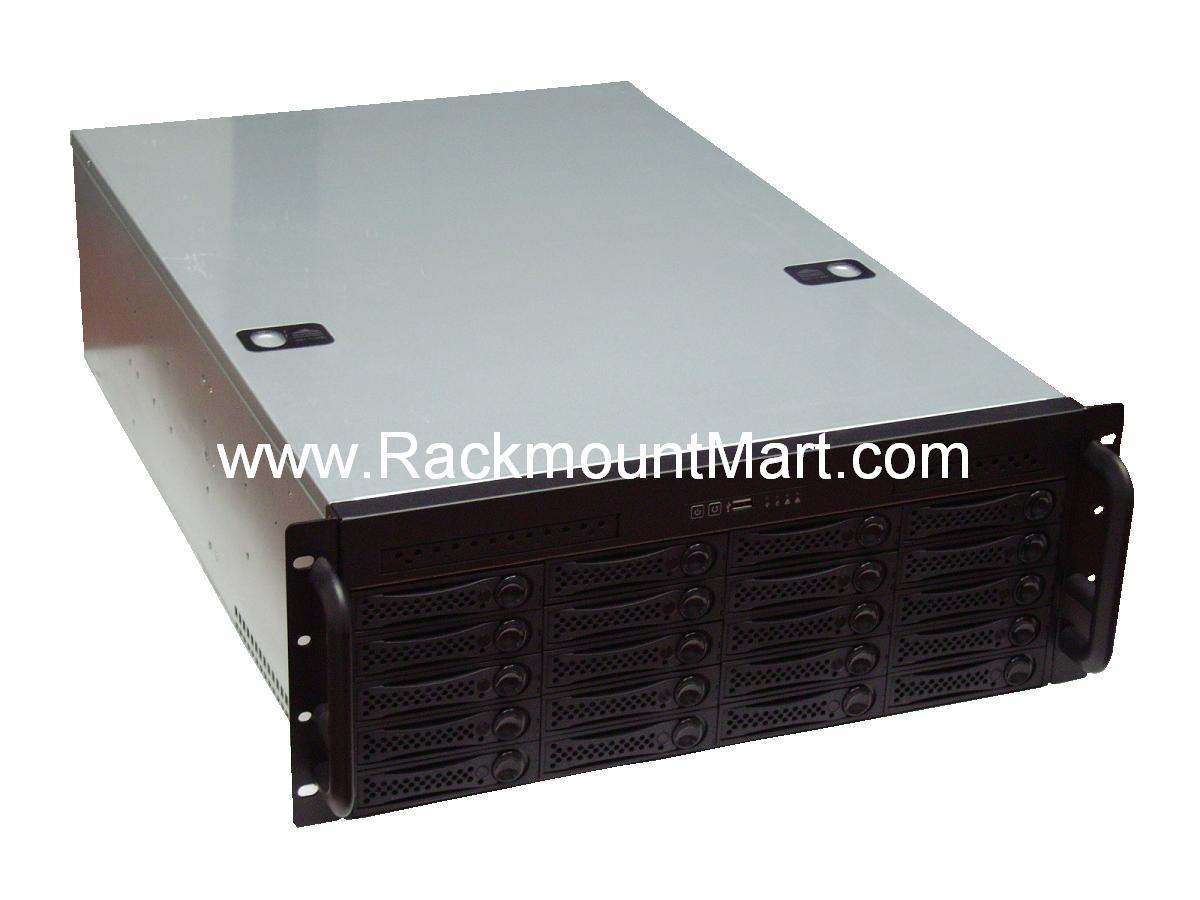

RM4029 4U Rackmount chassis with 1 x slim CD-ROM bay,20 x 3.5" SATA/SAS hot-swappable drive bays , 2 x 3.5" OS HDD brackets

4U Rackmount Chassis : Part # RM4029

19" Rackmount Standard
Construction:	4U rackmount design
Color:	Sliver and Black
RoHS Compliance :	Yes
Motherboard Size:	Support Up to 12" x 13" ATX M/B
Drive Bays:	1 x slim CD-ROM bay,20 x 3.5" SATA/SAS hot-swappable drive bays , 2 x 3.5" OS HDD brackets
Power Supply:	Standard ATX, mini redundant power supply
Cooling Units:	5 x 80mm middle fans, 2 x 80mm rear fans
Switches:	Power ON/OFF, System Reset
Indicators:	LEDs for Power ON/OFF, HDD, 2x LAN
Front connector:	Front USB 2.0 x 1 Connector
Dimensions: (W x H x D )	16.9 x 7 x 25.5inch 430mm x 176mm x 650mm
Environment Temperature:	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity:	5% to 95%,non-condensing
Vibration :	( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock :	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

Features:

   - 1 x slim CD-ROM bay,20 x 3.5" hot-swappable drive bays , 2 x 3.5" OS HDD brackets
   - Hot-swappable HDD tray with special designed power-off and lock mechanism
   - Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
   - Redundant power connectors
   - RoHS Compliant
   - Screwless top cover
   - Seven ball bearing fans for better ventilation
   - Front accessible USB port
   - Smooth border prevent lacerating your skin

For more pictures , click on the following for enlarged view:
