4U Rackmount Chassis : Part # RM4032
|
|
| 19" Rackmount Standard |
| Construction: |
4U rackmount design |
| Color: |
Sliver and Black |
| Motherboard Size: |
Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") |
| Drive Bays: |
Supports ten hot swappable 3.5" drives, and three 5.25"drives (with one 5.25" to 3.5" mounting bracket) |
| Power Supply: |
Standard ATX, mini redundant power supply |
| Cooling Units: |
2 x 80mm HDD fans, 2 x 80mm optional rear fans |
| Switches: |
Power ON/OFF x 1, System reset x 1 |
| Indicators: |
Power ON/OFF x 1, HDD x 1, NETWORK X 2 |
| Front connector: |
Front USB 2.0 x 1 Connector |
Dimensions:
(W x H x D ) |
19 x 7 x 21.6inch
483mm x 176mm x 550mm |
| Temperature: |
Operating:0/55 °C, 32/131 °F
Non-Operating:-20/60 °C, -4/140 °F |
| Relative Humidity: |
5% to 95%,non-condensing |
| Vibration: |
( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating) |
| Shock : |
10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating) |
|
Features:
- 4U rackmount design,meets EIARS-310C standard.
- 3 x 5.25" drive bays (with one 5.25" to 3.5" mounting bracket) ,10 x3.5" hot swappable SATA or SAS drive bays
- Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
- Screwless top cover
- 2x92mm HDD fans, 2x80mm optional rear fans for better ventilation
- Lockable front panel door
- Front accessible USB port
- Smooth border prevent lacerating your skin

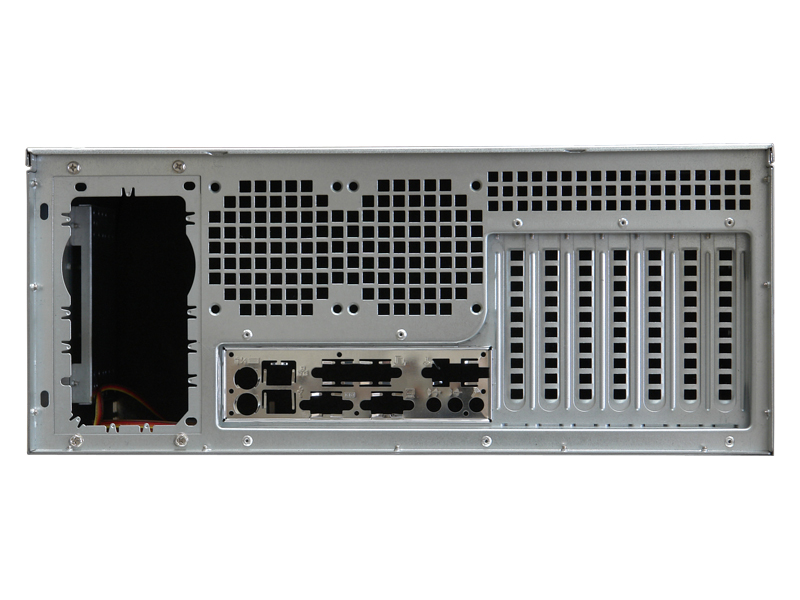

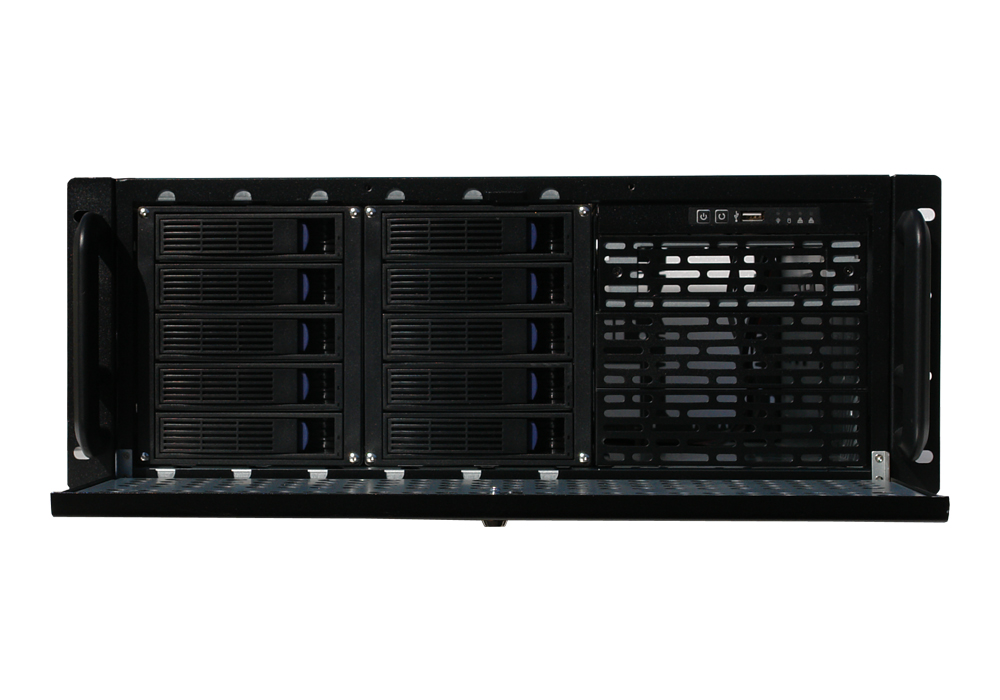

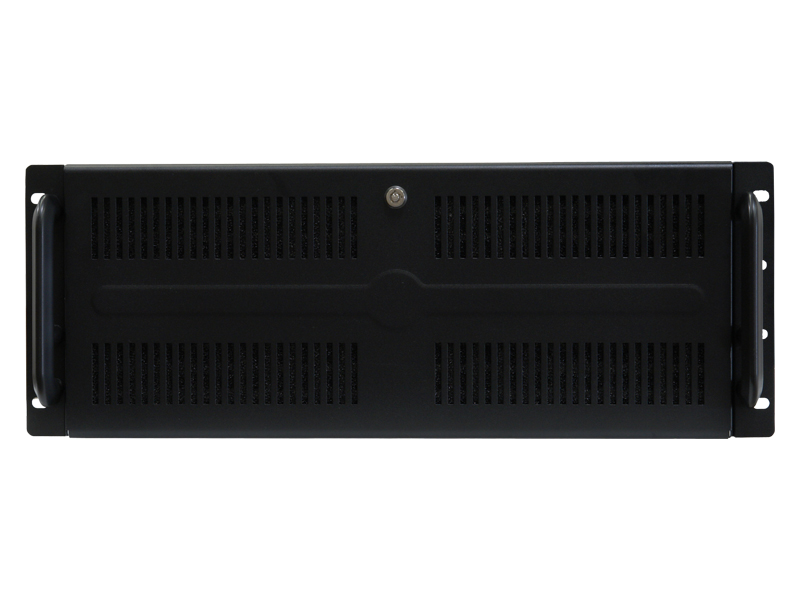

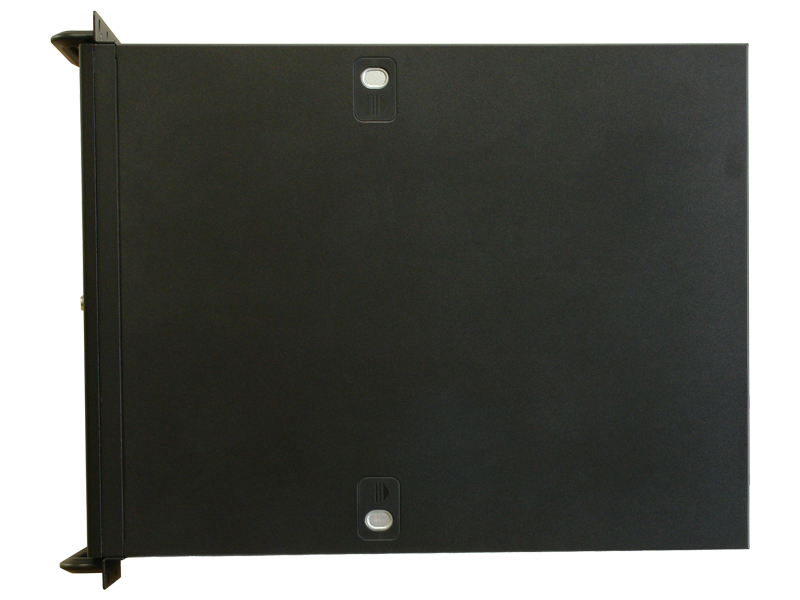

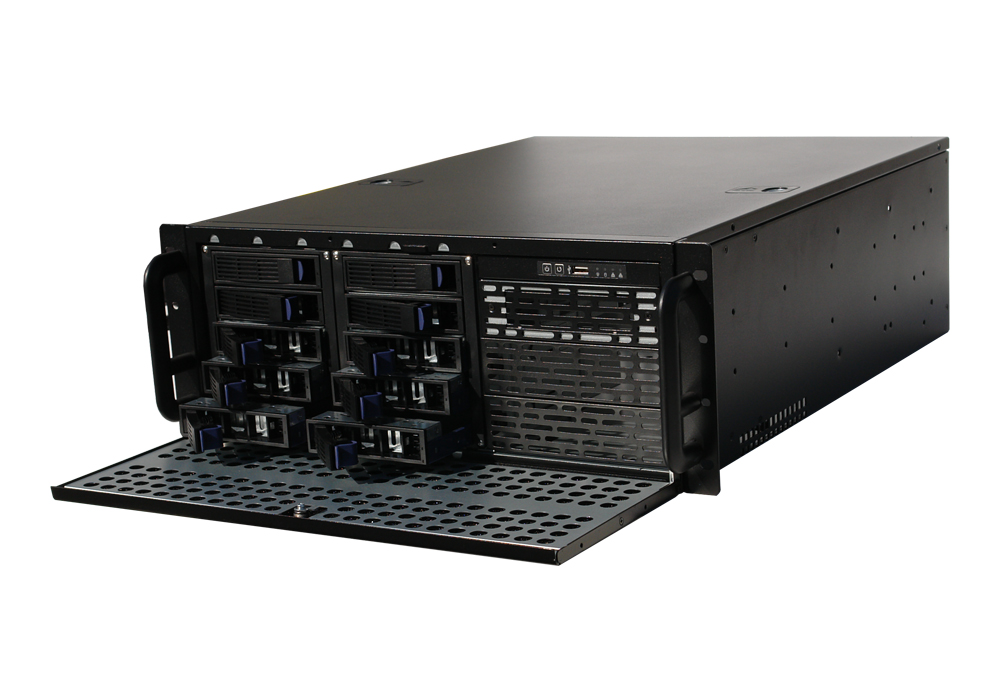

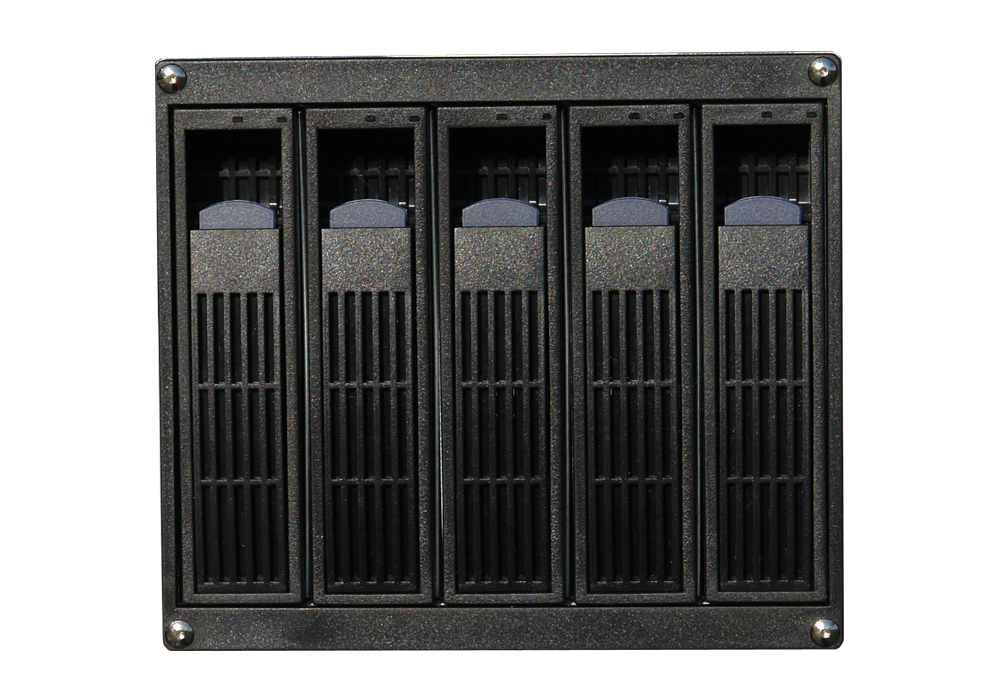

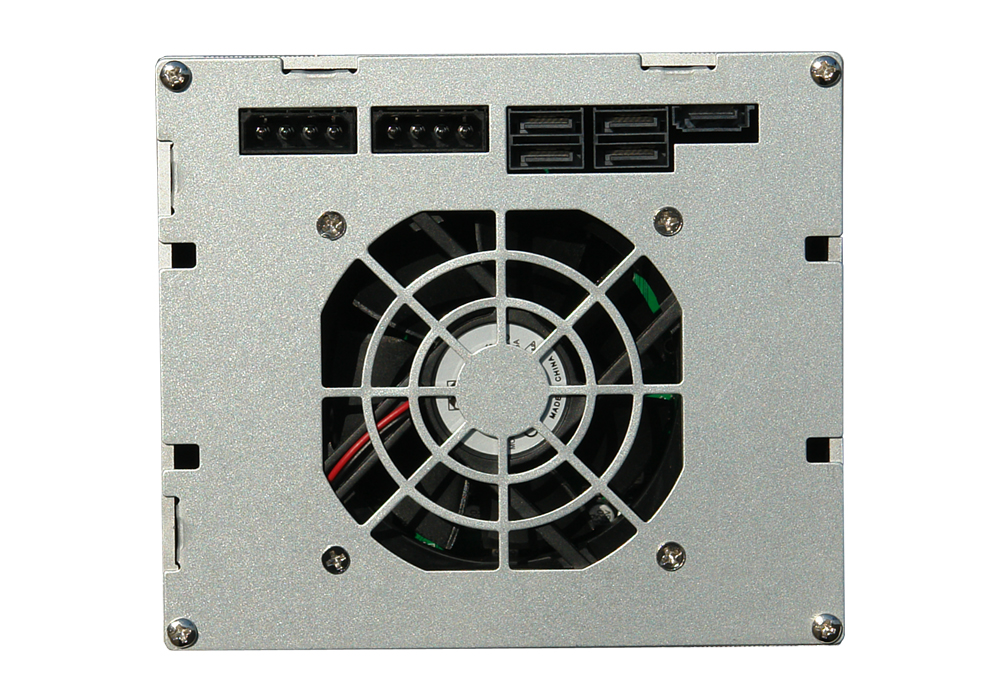

For more pictures , click on the following for enlarged view:


|
