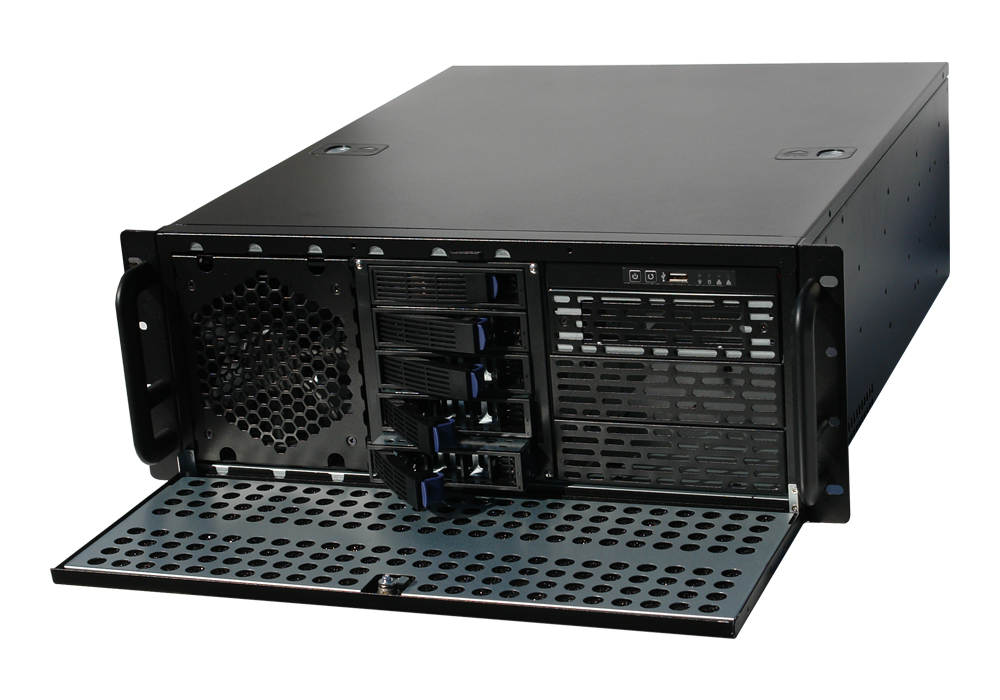

RM4033  4U Rackmount Chassis with 5 x internal 3.5" drive + 3 x 5.25" drive + 5 x swappable 3.5" drive



4U Rackmount Chassis :  Part # RM4033




                      19" Rackmount Standard
Construction: 4U rackmount design
Color: Sliver and Black
Motherboard Size: Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")

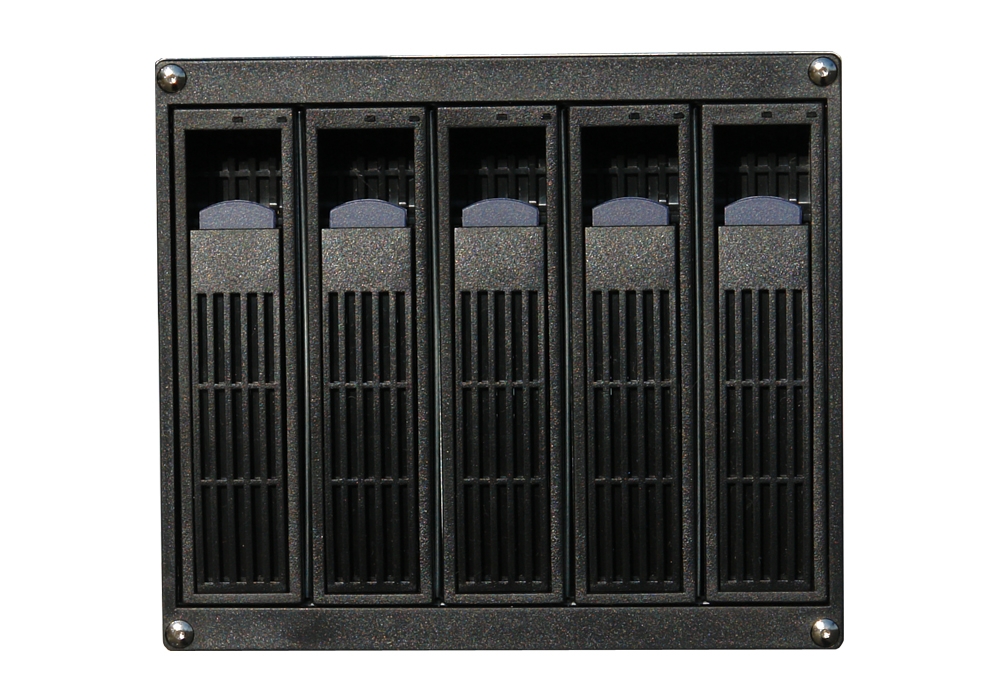

Drive Bays: Supports five hot swappable 3.5" drives, five internal 3.5" drives and three 5.25"drives
Power Supply: Standard ATX, mini redundant power supply
Cooling Units: 1 x 120mm front fan, 1 x 80mm HDD fan, 2 x 80mm optional rear fans
Switches: Power ON/OFF x 1, System reset x 1
Indicators: Power ON/OFF x 1, HDD x 1, NETWORK X 2
Front  connector: Front USB 2.0 x 1 Connector
Dimensions:
(W x H x D )
19 x 7 x 21.6inch
483mm x 176mm x 550mm
Temperature: Operating:0/55 °C, 32/131 °F
Non-Operating:-20/60 °C, -4/140 °F
Relative Humidity: 5% to 95%,non-condensing
Vibration: ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

  Features:

  • 4U rackmount design,meets EIARS-310C standard.
  • 3 x 5.25" drive bays, 5 x 3.5 " internal drive bays, 5 x3.5" hot swappable SATA or SAS drive bays
  • Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
  • Screwless top cover
  • 1x120mm front fan, 1x92mm HDD fan, 2x80mm optional rear fans for better ventilation

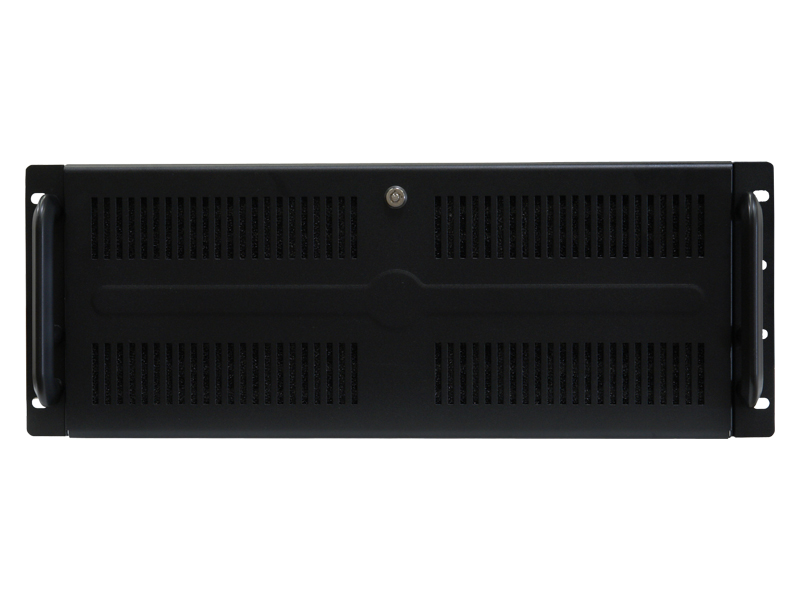

  • Lockable front panel door
  • Front accessible USB port
  • Smooth border prevent lacerating your skin

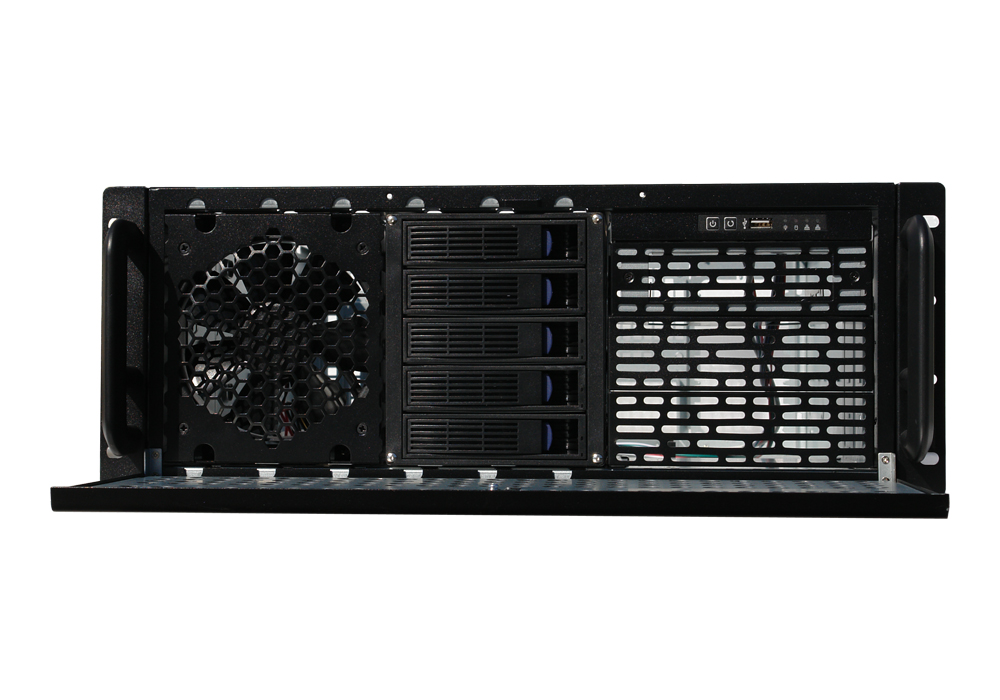

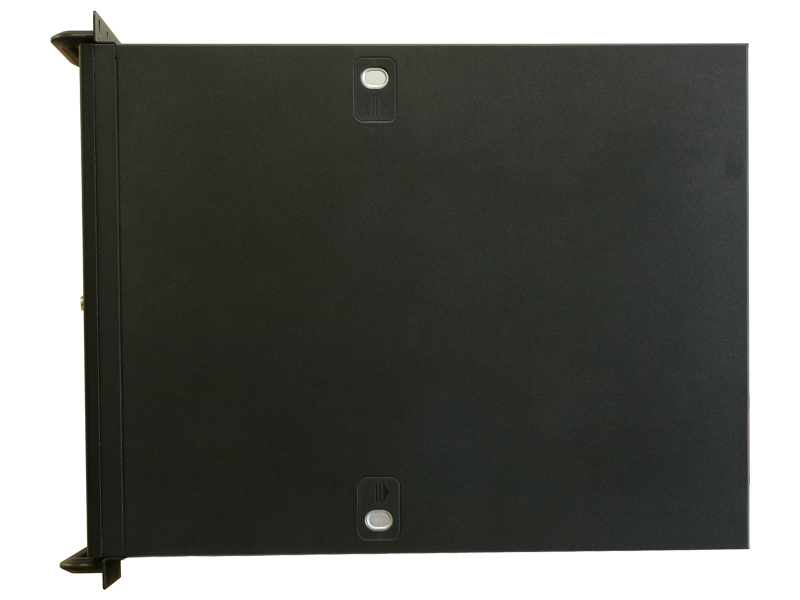

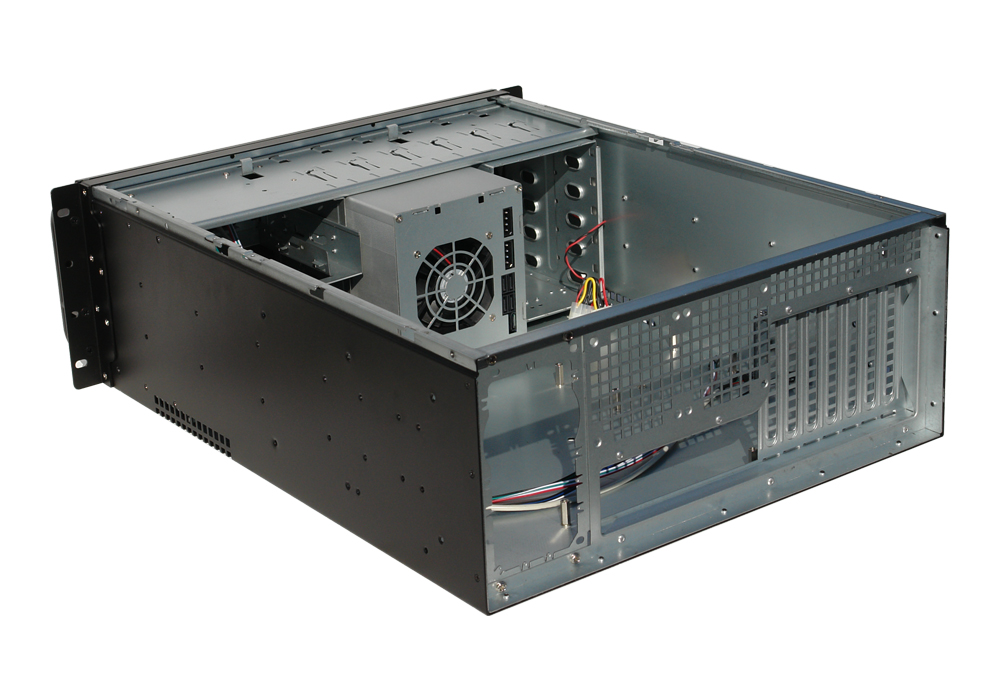

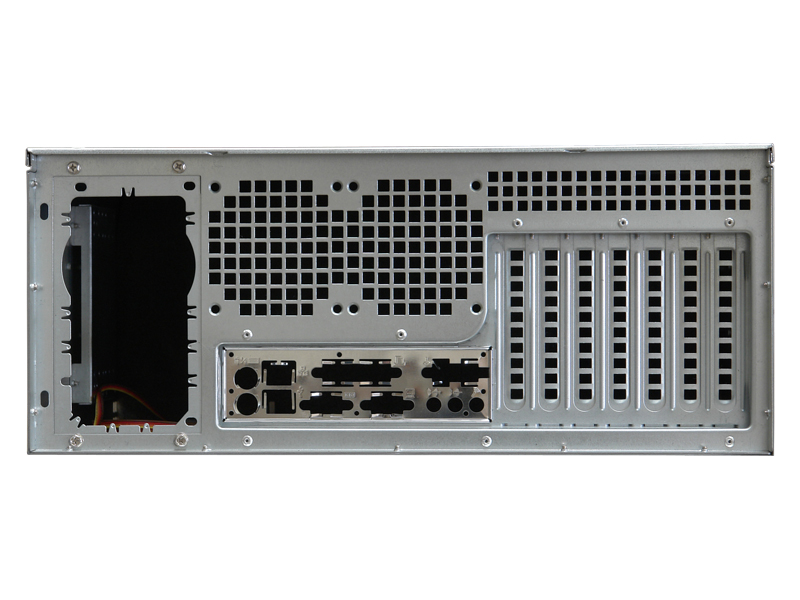

  For more pictures , click on the following for enlarged view:




Ordering information

Part Number  Description
RM4033       4U Rackmount Chassis with 5 Hot Swappable Drive Bays ,  Black, Case only.
RM4033-45  4U Rackmount Chassis with 5 Hot Swappable Drive Bays ,  Black, w/ 450W P.S.
RM4033-55  4U Rackmount Chassis with 5 Hot Swappable Drive Bays ,  Black, w/ 550W P.S.
RM4033-65  4U Rackmount Chassis with 5 Hot Swappable Drive Bays ,  Black, w/ 650W P.S.
RM4033-80  4U Rackmount Chassis with 5 Hot Swappable Drive Bays ,  Black, w/ 800W P.S.
RM4033-90  4U Rackmount Chassis with 5 Hot Swappable Drive Bays ,  Black, w/ 900W P.S.
RM4033-100 4U Rackmount Chassis with 5 Hot Swappable Drive Bays ,  Black, w/ 1000W P.S.




RM4033
