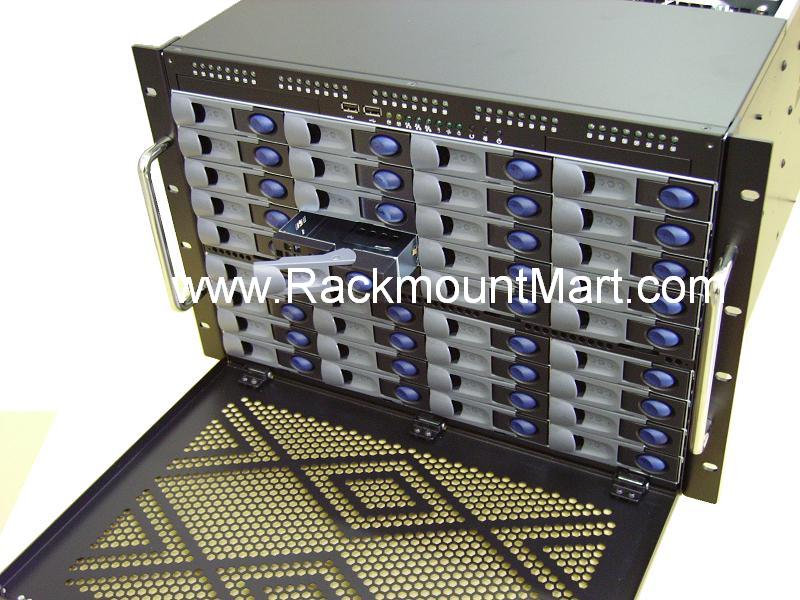

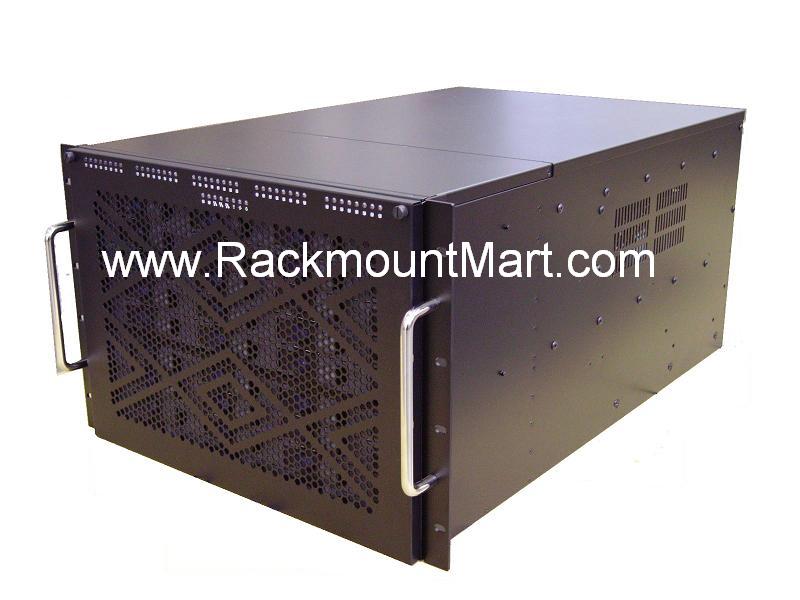

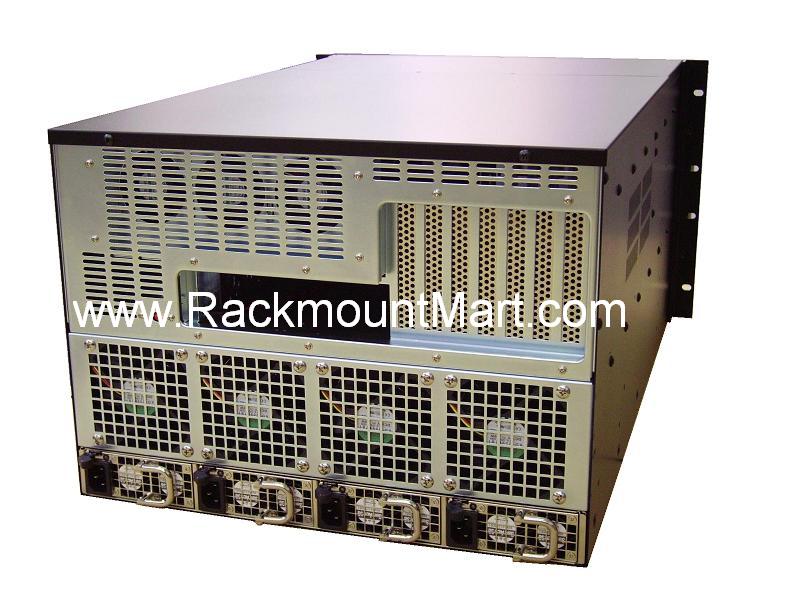

RM7002  7U Rackmount Chassis :  1x slim ODD + 1x slim FDD + 36x hot-swappable 3.5 Optional Slide Rails - General Device

              7U Rackmount Chassis : 1x slim ODD + 1x slim FDD + 36x hot-swappable 3.5

Material: Heavy-duty cold-rolled steel.
Color: Support Black (Standard) or Custom
System Boards: C2D, Xeon, AMD 64, Opteron, Phenom
Motherboard Size: Support EATX M/B (Max. to 16 " x 13") with Removeable drawer
Drive Bays: 1x slim ODD, 1x slim FDD, 36 x hotswap 3.5" HDD carrier/tray
Drive Interface: SATA-II, SAS, U320 SCSI, SATA-Multilane(SFF-8470), Mini-SAS(SFF-8087)
Dimension: 19"(W) x 26.2"(D) x 12.25"(H)
Connector Port (front): 2x USB
Cooling: 2x 120mm, 2x 40mm, 4x 60mm, 4x 90mm Heavy Duty Ball Bearing Fans

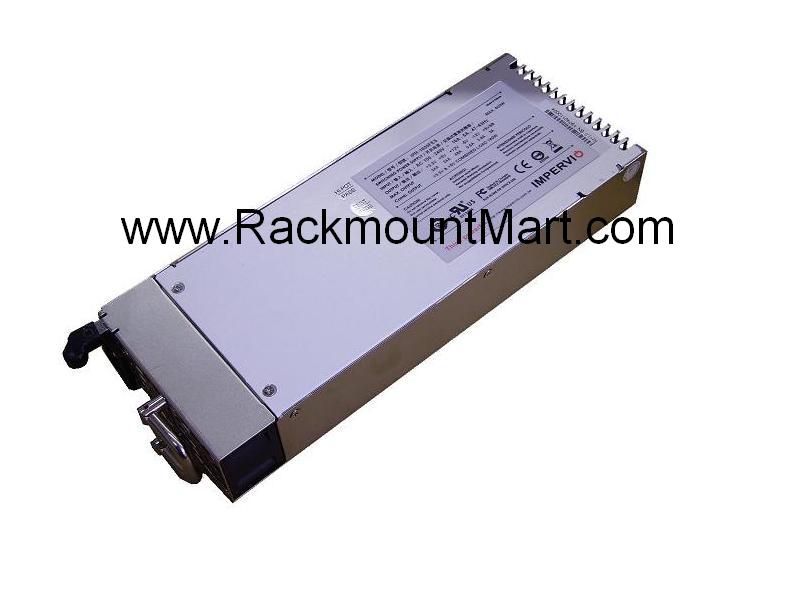

Power Supply: (Rear Chassis Installation) 1U Redundant ATX Power Supply(1650W+600W); Max Depth 300mm
Expansion Slot: 7 x Vertical Full Length/Height PCI Slots
Indicators: 7 x LEDs for Power, 36x HDD Activity, 3x LAN, Fan Failure, Temperature Warning
Buttons: Power On/Off, System Reset, Fan Failure Reset, Alarm Reset Buttons
Front Door(s): Single Door with 2x Thumbscrew

Temperature: 0°C(32°F)~ 50°C(122°F)
Humidity: 5%~95% non-condensing


More views  (click to enalarge) :


Optional Accessories:
Slide Rails - General Device

Availability: Usually ships the next business day

RM7002 ( IMPORTANT NOTES : Shipping charge will not be shown correctly on your order due to online system limitation. Seller will notify correct shipping cost after you place order.)$2,567.00
