| Specification |
IP Connection |
1 x RJ-45 Ethernet 10/100 |
Console connection |
1 x DB-15 VGA, up to 1600 x 1200
2 x USB type connector for keyboard & mouse
2 x PS/2 mini Din 6-pin for keyboard & mouse |
PC connection |
1 x DB-15 combo KVM port |
Virtual Media |
USB type B receptacle |
Serial |
1 x DB9 male |
Power |
12V power adapter |
Operation Temperature |
0 ~ 50°C |
| Storage Temperature |
-5 ~ 60°C |
Humidity |
0 ~ 80%, Non-Condensing |
Dimension |
203.5 x 113.3 x 27.3 mm |
Weight |
1.7kg / 3.74 lb |
| Package Content |
Package Content |
LCDK1042 unit x 1 ,
LCD-A3001 6ft Combo KVM cable x 1, Power
adapter w/ power cord ( for receiver ) x 1 |
| Download |
|
|
|

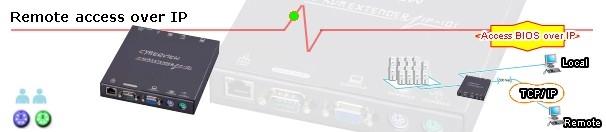

| Connection to KVM console port over IP |
|
*click on above pictures for enlarged view
|
| Connector to computer over IP |
|
| *click on above pictures for enlarged view |
|
