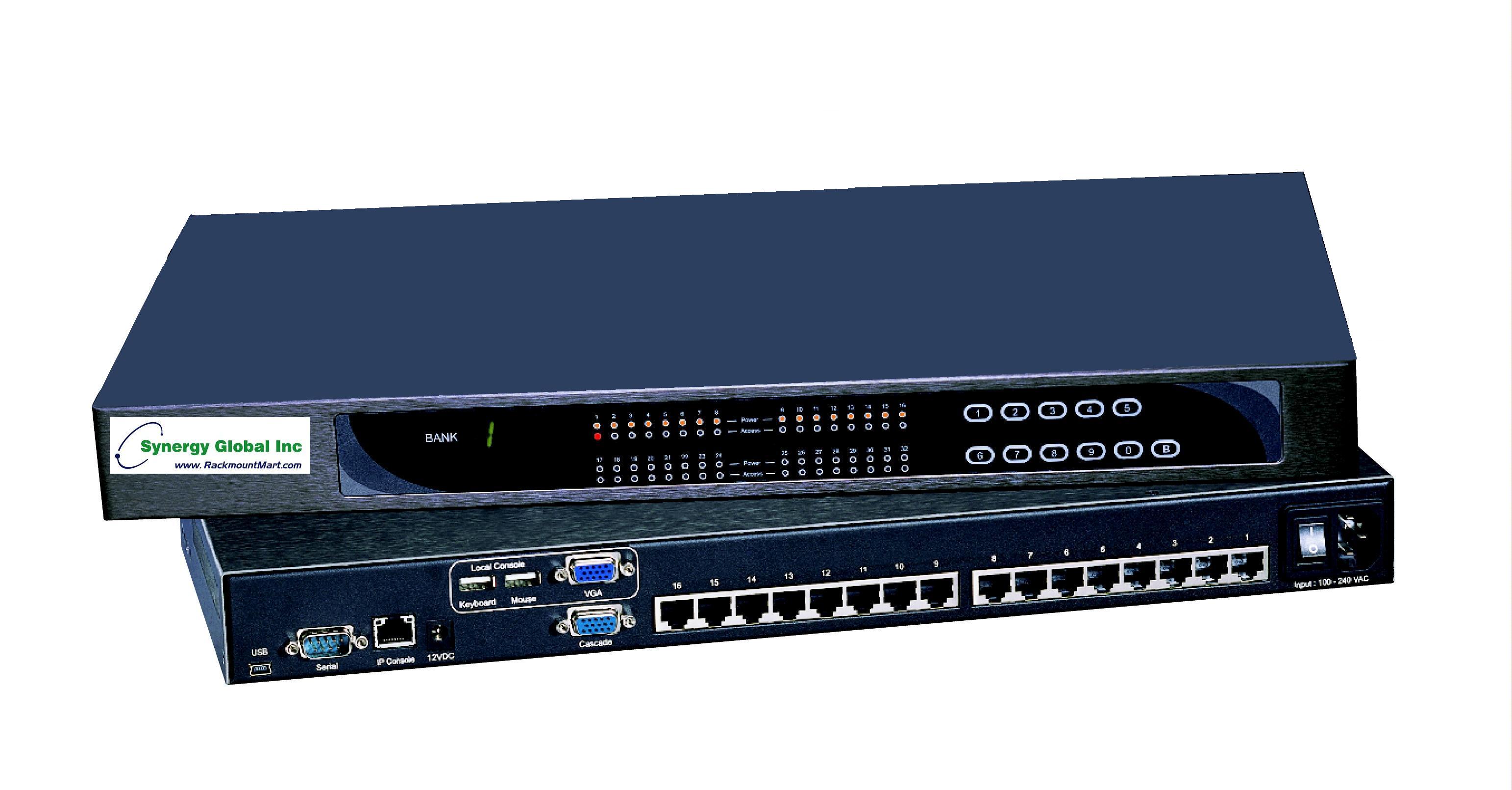

Click to enlarge

LCDK1047   1IP KVM : 16-Port Cat 6 KVM Switch, DisplayPort, HDMI, DVI & VGA ,  1 Local User &1 Network IP User





Part Number: LCDK1047


      IP KVM : High Density 16-Port Cat 6 KVM Switch, 1 Local User &1 Network IP User
supports DisplayPort, HDMI, DVI and VGA Video Input
Optional 12V , 24V, 48V, 125V , 250V DC Power
1U Rackmountable or Standalone
TAA Compliant

  32-Port Model: LCDK1048



*click for enlarged view

   Cat6 KVM Over IP Benefits
  • 16 Port Cat6 KVM switch, supports DisplayPort, HDMI, DVI & VGA Video Input
  • IP remote access across the world wide web / KVM Over IP
  • Local console & KVM ports support resolution up to 1920x1080
  • Port switching via OSD, front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required
  • Cascade levels up to 8 KVM switches
  • Mix PC, server, Blade Server , SUN & MAC with Multi-Platform switch capability
  • Standalone KVM or 1U Rack Mount
  • Multi lingual on screen display menu
  • TAA Compliant
    Switch Features & Options
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover
  • 12V, 24V , 48V ,110V , 125V, 250V DC Power options
KVM

Number of ports

 16

Connector

 RJ-45

Connectivity

 DP / HDMI / DVI-D / VGA dongle via Cat5 / Cat6 cable to server up to 132 feet / 40 meter

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Expansion

 Up to 256 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution

 16:9 - up tp 1920 x 1080
 4:3 - up to 1600 x1 200

Input device

 2 x USB type A for keyboard & mouse

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

IP Remote Console

Connector

 RJ45 Ethernet

Resolution

 15-user login, 1 x active user

Input device

 DHCP / BOOTP / DNS

Remote I/O

 SSL v3, RSA, AES, HTTP / HTTPs, CSR

Resolution

 4:3 1600 x 1200

Power
Input  Auto-Sensing 100 to 240V AC , 50 / 60 Hz
Consumption  Max. 22 Watt
Option DC  12V / 24V / 48V /110V / 125V / 250V DC input
Regulatory Approval
  FCC, CE , RoHS2, REACH, TAA Compliant
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  20%~90%, non condensing(Operation)
 5%~90%, non condensing(Storage)
Shock  10G acceleration   (11ms duration)
Vibration  10~300Hz / 0.5G RMS randon vibration
Mechanical

Dimension

  17.4" x 6.7" x 1.73" (W x D X H)
  443mm x 171mm x 44mm

Weight  Approximately 6 lbs / 2.6 kg

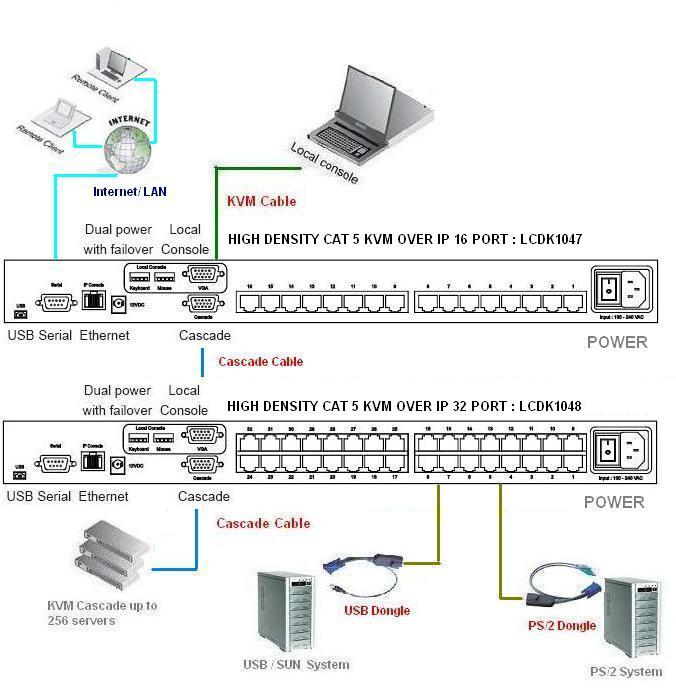

    Connection

*Click for enlarged view

    KVM Cascade

*Click for enlarged view

 Download Product Sheet
 Download User Manual

ACCESSORIES

Part #    Description
LCD-A2001

Price >>
VGA - USB Dongle
  • To connect DB-15 connector to the computer’s video card
  • To connect USB connector to the computer’s USB port
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor

  • *Click for enlarged view
    LCD-A2002

    Price >>

     VGA - PS/2 Dongle
  • To connect DB-15 connector to the computer’s video card
  • To connect PS/2 keyboard connector to the computer’s
        keyboard port
  • To connect PS/2 mouse connector to the computer’s
        mouse port
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor

  • *Click for enlarged view
    LCD-A2003

    Price >>

    DVI - USB Dongle
  • To connect DVI-D connector to the computer’s video card
  • To connect USB connector to the computer’s USB port
  • Increased distance of up to132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Reduces clutter of multiple cables between tiers
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Connect Cat5/5e/6 cabling from the switch to the
        keyboard, video & mouse ports of the target server

  • *Click for enlarged view
    LCD-A2004

    Price >>

    HDMI - USB Dongle
  • To connect Cat5 /Cat5e / Cat6 cabling from the switch to
        KVM (Keyboard,Video & Mouse)ports of the target server
  • Increased distance of up to 132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Reduces clutter of multiple cables between tiers

  • *Click for enlarged view
    LCD-A2005

    Price >>

    DisplayPort - USB Dongle
  • To connect Cat5 /Cat5e / Cat6 cabling from the switch to
        KVM (Keyboard,Video & Mouse)ports of the target server
  • Increased distance of up to 132 ft.
  • Max resolutions support :
        1920x1080 for 16:9 monitor
        1600x1200 for 4:3 monitor
  • Provide simple plug-n-play installation to any USB / SUN
         / iMAC servers
  • Reduces clutter of multiple cables between tiers

  • *Click for enlarged view
    LCD-A1019

    Learn More >>
    6-ft Combo Cascade cable

    *Click for enlarged view

    Optional Peripheral & Accessory
    - Cable and Dongle - DC Power Input ( 12V / 24V / 48V /110V / 125V / 250V )
    Customer who ordered this product may also order these :
    - Rack Mount Monitor Keyboard Drawer - Rack Mount Keyboard



    Ordering  Information



    Part Number  Description
    LCDK1047
    Price:$779
    16 Port High Density Cat6 KVM Switch, 1 Local user & 1 Network IP User, 1U Rackmountable. Dongles are optional.
    Optional DC Input Power
    -DC12
    Price : $171
    Add 12V DC power supply
    -DC24
    Price : $171
    Add 24V DC power supply
    -DC48
    Price : $171
    Add 48V DC power supply
    -DC110
    Price : $357
    Add 110V DC power supply
    -DC125
    Price : $357
    Add 125V DC power supply
    Optional Dongles
    LCD-A2001
    Price : $43
    VGA-USB Dongle
    LCD-A2002
    Price : $43
    VGA-PS/2 Dongle
    LCD-A2003
    Price : $68
    DVI-USB Dongle
    LCD-A2004
    Price : $68
    HDMI -USB Dongle
    LCD-A2005
    Price : $68
    DisplayPort -USB Dongle
    Optional Cables
    LCD-A1019
    Price : $21
    6-ft Combo Cascade Cable






    Availability: Usually ships the next business day

    LCDK1047 $779.00

    Optional HDMI Dongle, LCD-A2004:

    Optional DVI Dongle, LCD-A2003:

    Optional DisplayPort Dongle, LCD-A2005:

    Optional VGA-USB Dongle, LCD-A2002:

    Optional VGA-PS2 Dongle, LCD-A2001:

    Optional Cascade Cable , LCD-A1019:

    Optional DC Power:
