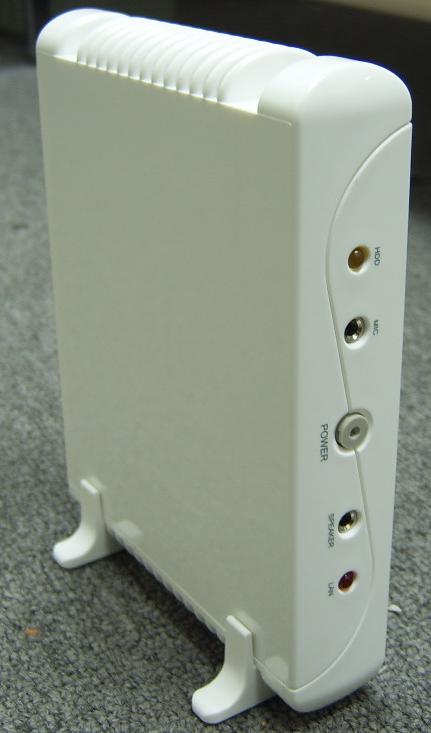

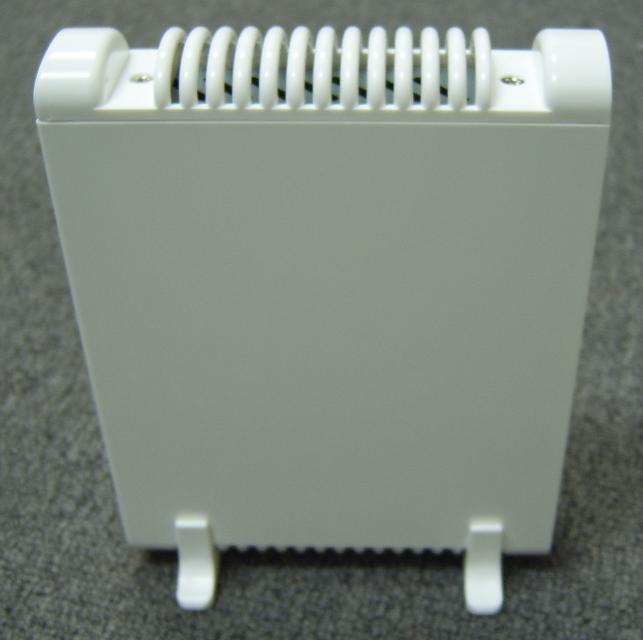

**Click on photos
above for enlarged
views
 |
|
Thin Client
TC1001
Specification |
|
Processor |
- AMD GX2-466 (Geode)
333Mhz Fanless
Processor |
|
Chipset |
- AMD GX2-466
(Northbridge)
- AMD CS5535 (Southbridge) |
|
System Memory |
- 128MB DDR 266 RAM on
board, optional
256MB RAM |
|
VGA |
- AMD GX2-466
Integrated Display
Controller
- 1600x1200 resolution |
|
Expansion Slots |
- None |
|
Onboard IDE |
- 32-pin
Flash-IDE-Chip socket
(diskless w/ non-volatile storage)
- 44-pin IDE connector |
|
Onboard LAN |
- 1 x Realtek RTL8100B
10/100 Ethernet |
|
Onboard Audio |
- AMD CS5535
Integrated Audio Controller |
|
Flash Memory |
- Optional
|
|
Front Panel |
- Power switch
- Power/HDD/LAN Led
- Audio jacks: line-out and mic-in |
|
Back Panel I/O |
- 1 x VGA Port
- 4 x USB 1.1 ports
- 1 x RJ-45 LAN ports |
|
BIOS |
- AMD Geode BIOS |
|
OS Support |
- Linux, OpenBSD,
FreeBSD, MS Windows 2000/XP |
|
Remarks
|
-Support multiple protocols, plug-ins and local application (Web
browser, multimedia player) :
-Microsoft RDP
-Citrix ICA |
|
Operating
Temperature |
0 ~ 60°C |
|
Operating Humidity |
0% ~ 93% (relative
humidity; non-condensing) |
|
Power |
- DC 12V In (11.4V -
12.6V)
- 6W Power Consumption (1W standby) |
|
Application |
- Corporate Thin Clients
- IPSec/VPN/Firewall Router with
external Ethernet USB adapers using either IPCop, LEAF, mOnWall,
pfSense
- Education
- Terminal in Blade PC
- Thin-client with LTSP, VNC, or
Rdesktop
- Java Application Server
- Automotive applications
- Information appliances
|
|
|
|
|
|

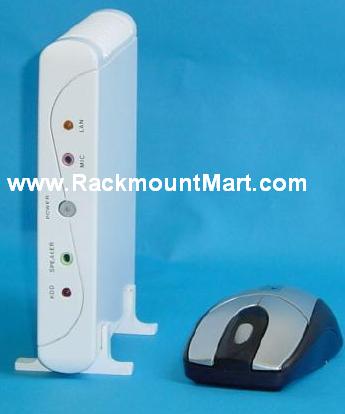

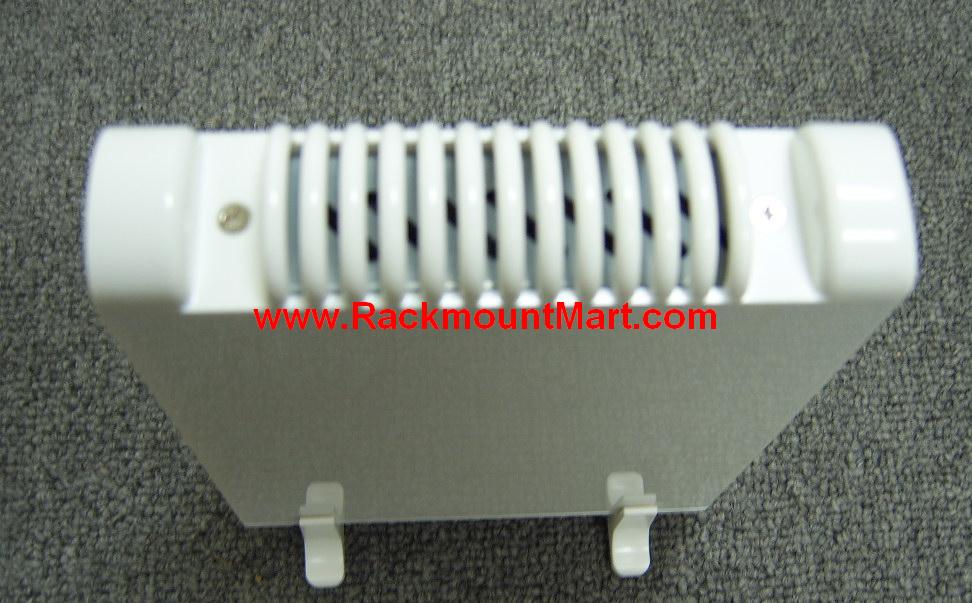

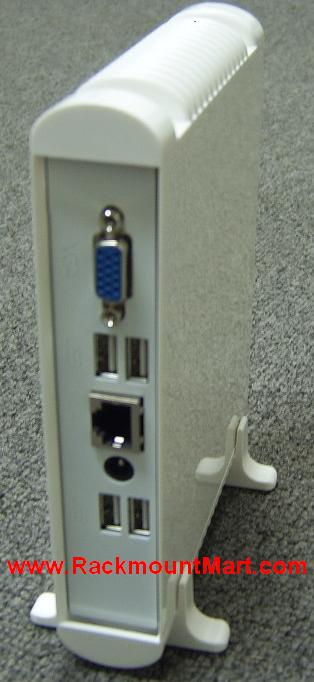

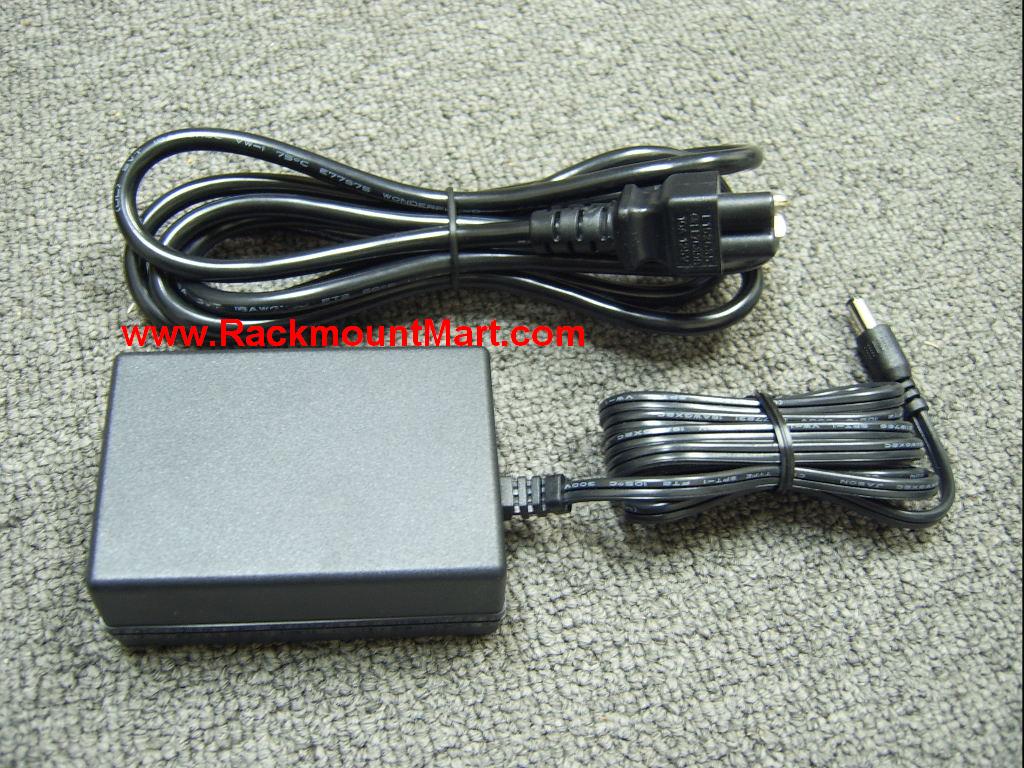

More
photos - (click on the photos for enlarged views)
|
Ordering information
|
Part Number |
Description |
|
TC1001-128-00 |
Thin client with Geode CPU 128 MB RAM, no flash memory |
|
TC1001-128-32 |
Thin client with Geode CPU 128 MB RAM, w/ 32MB flash memory |
|
TC1001-128-64 |
Thin client with Geode CPU 128 MB RAM, w/ 64MB flash memory |
|
TC1001-128-128 |
Thin client with Geode CPU 128 MB RAM, w/ 128MB flash memory |
|
TC1001-128-256 |
Thin client with Geode CPU 128 MB RAM, w/ 256MB flash memory |
|
TC1001-128-512 |
Thin client with Geode CPU 128 MB RAM, w/ 512MB flash memory |
|
TC1001-128-1G |
Thin client with Geode CPU 128 MB RAM, w/ 1G flash memory |
|
TC1001-256-00 |
Thin client with Geode CPU 256 MB RAM, no flash memory |
|
TC1001-256-32 |
Thin client with Geode CPU 256 MB RAM, w/ 32MB flash memory |
|
TC1001-256-64 |
Thin client with Geode CPU 256 MB RAM, w/ 64MB flash memory |
|
TC1001-256-256 |
Thin client with Geode CPU 256 MB RAM, w/ 256MB flash memory |
|
TC1001-256-256 |
Thin client with Geode CPU 256 MB RAM, w/ 256MB flash memory |
|
TC1001-256-512 |
Thin client with Geode CPU 256 MB RAM, w/ 512MB flash memory |
|
TC1001-256-1G |
Thin client with Geode CPU 256 MB RAM, w/ 1G flash memory |
|
|
