RM4004  4U Rackmount Chassis 16 x  Hot-Swap IDE / SATA / SCA bays / SATA Multi-Lan

Untitled Document

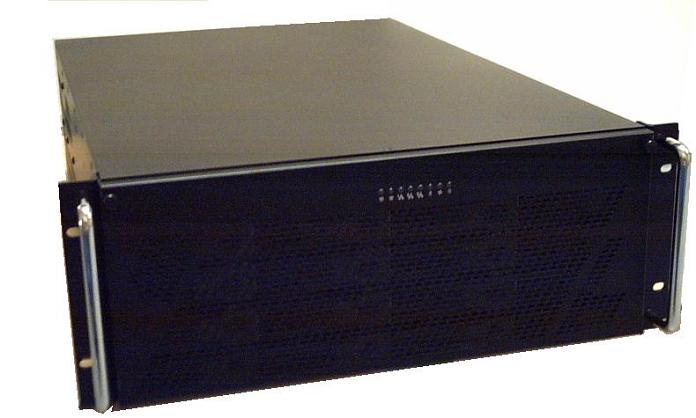

4U Rackmount Chassis :  Part # RM4004


For more picture, click on the following for enlarged view:




EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard ) , Beige or Custom
Motherboard Size: Supports EATX M/B (Max. to 12"x13" )
Drive Bays:

1 x Slim CDROM + 1 x Slim FDD + 16 x 3.5" Hot Swap IDE /SATA /SCSI 320/ Multi-Lane SATA/SAS (Optional) Trays + 2 x 2.5 HDD (Hidden) & 2 x 3.5" Internal HDD Brackets (Optional)

Power Supply: N+1 Redundant up to 950W ATX P/S (Rear Installation)
Cooling Units:

3x(12cm) Fans(90CFM each) & 2x(6cm) Fans(23.5CFM each) (Optional)

Expansion Slot: 7 x Full Length PCI Slots
Connector Port : 2 x USB Ports (Front)
Thermal Management Card: Installed
Indicators: Leds for Power ON/OFF , 2xHDD , Fan , Temperature & 3 x LAN Active
Doors: Single Front Door with 2 x Thumbscrew (Removable)
Buttons: Power ON/OFF Momentary (Dimple), System Reset, Buzzer Reset
Dimensions: 19" x 7" x 25.6" (483 x 177 x 650 mm )(WXHXD)
Humidity: 5% - 95% Non-condensing
Product Applications: RAID Server, File Server, Web Server

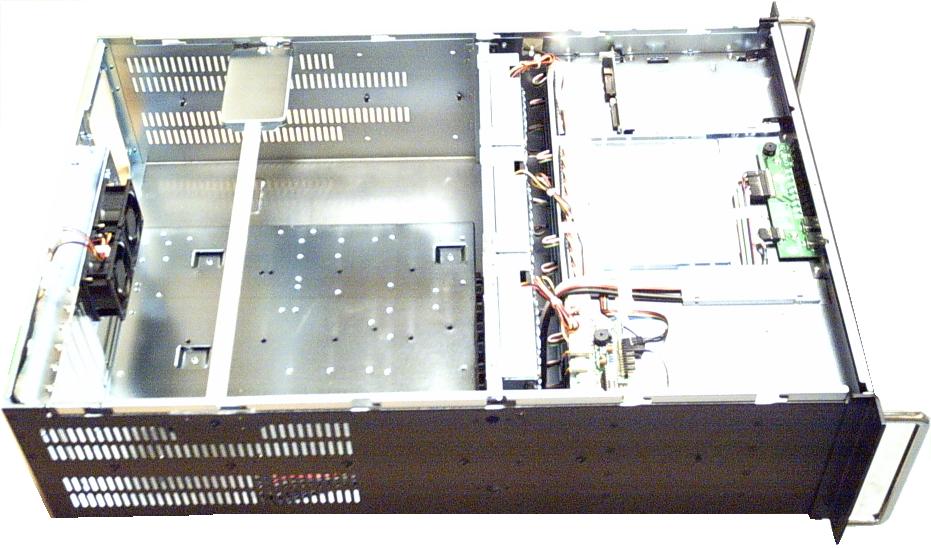

For more pictures, click on the following to enlarge:








Availability: Usually ships the next business day

RM4004$608.00
Option:
Option for SATA Multi-Lane Version only:
Motherboard Used with this chassis:
Slim Floppy Drive CA1002:
Slim CD-ROM CA1001:
Slim DVD-ROM CA1004:
Slim DVD/CDRW CA1003:
Slim DVDRW CA1005:
Sliding Rails:
PT-int-HD-4U: Internal Hard Drive Bracket Support 2x3.5 inch HD:
For multi-lane version please choose the connector type on backplane :
