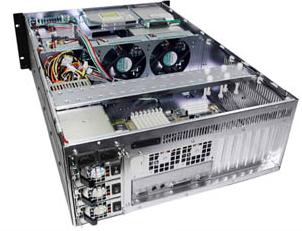

RM4005 4U Rackmount Chassis 14 x Hot-Swap IDE / SATA / SCA bays w/ optional  power supply

Untitled Document

4U Rackmount Chassis :  Part # RM4005



For more pictures, click on the following for enlarged views :




EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard ), Beige or Custom
Motherboard Size: Support ATX M/B (Max. to 12"x13" )
Drive Bays: 1x 5.25" & 1x Slim CD-ROM & 1x Slim FDD &14 x3.5" Hot-Swappable IDE / SATA / SCSI 320/ Multilane SATA/ SAS (Optional)Trays & 2 x 3.5" HDD (Optional)
Power Supply: Optional N+1 Redundant up to 950W ATX P/S (Rear Installation) Max. Depth 300mm
Cooling Units:

3x (120mm = 90CFM each) Fans & 2x(60mm = 23.5CFM each Fans (Optional)

Expansion Slot: 7 x Full Length PCI Slots, 2 x USB Ports (Front)
Connector Port : 2 x USB Ports (Front)
Thermal Management Card: Installed
Indicators: Leds for Power ON/OFF , 2xHDD , Fan , Temperature & 3 x LAN Active
Doors: 1 x Front Door with 2 x Thumbscrew (Removable)
Buttons: Power ON/OFF , System Reset , Buzzer Reset
Dimensions: 19" x 7" x 25.6" ( 483 x 177 x 650 mm )(WXHXD)
Humidity: 5% - 95% Non-condensing
Product Applications: RAID Server, File Server, Web Server
Compliance : RoHS Compliant , TAA Compliant






Availability: Usually ships the next business day

RM4005$597.00
MODEL:
Color:
Optional 14/15-Slot Back Panel:
Optional Power Supply for the SATA Version:
Optional Power Supply for the PATA (IDE) Version:
Optional Power Supply for the SCSI Version:
Slim Floppy Drive CA1002:
Slim CD-ROM CA1001:
Slim DVD-ROM CA1004:
Slim DVD/CDRW CA1003:
Slim DVDRW CA1005:
Sliding Rails:
PT-int-HD-4U: Internal Hard Drive Bracket support 2x3.5 inch HD:
