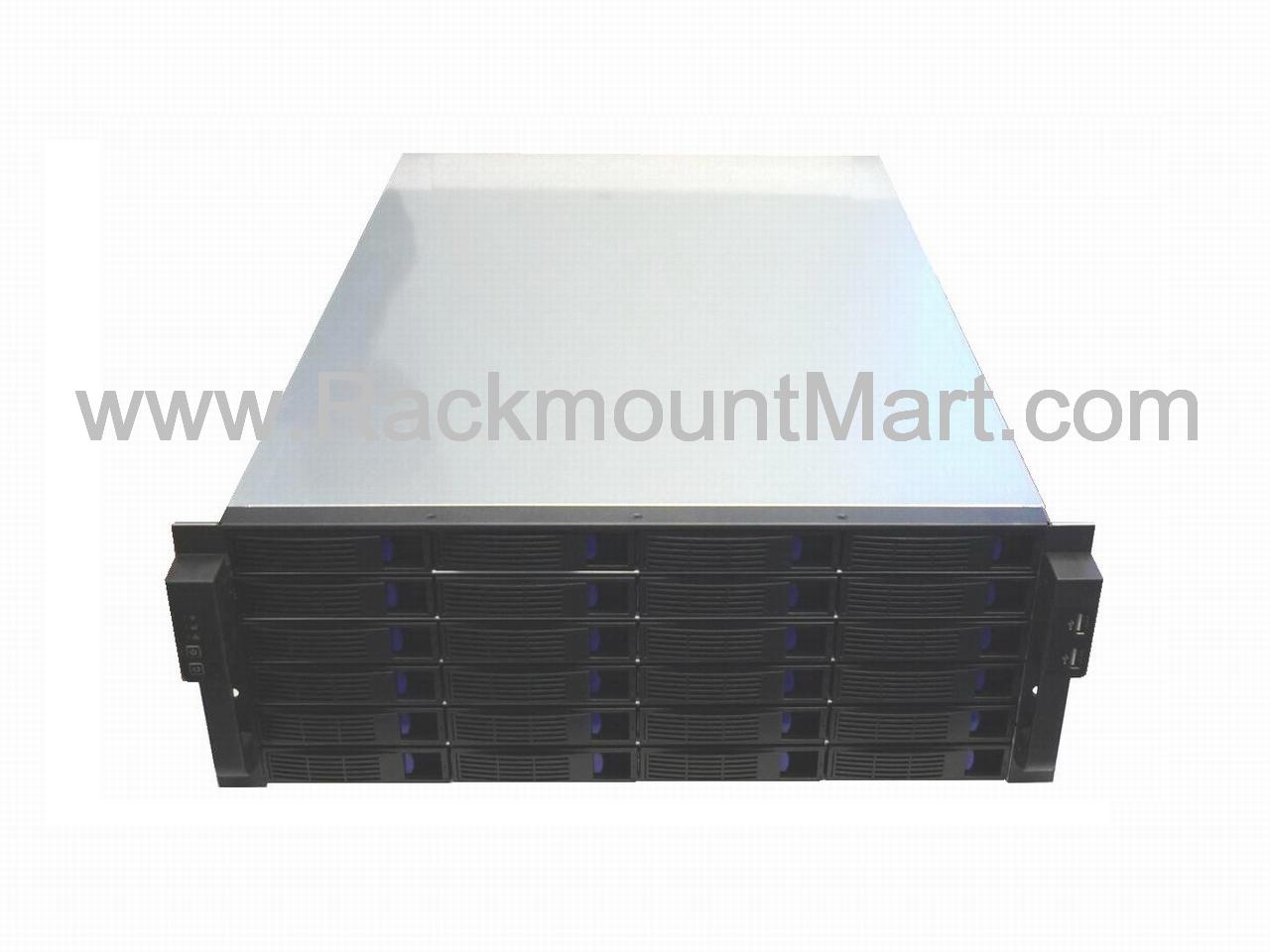

RM4034  4U Rackmount Chassis w/ 24 x hot-swappable SATA (II or III) / SAS 6G drive bays











* click on photo for enlarged view


                      19" Rackmount Standard
Construction: 4U rackmount design
Color: Sliver and Black
Motherboard Compatibility: Support EEB (12" x 13"), CEB(12" x 10.5"),
ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"),
ITX (6.7" x 6.7")
Drive Bays: 24 x hot-swappable SATA (II or III) /
SAS 6G drive bays
Power Supply: Standard ATX, mini redundant power supply

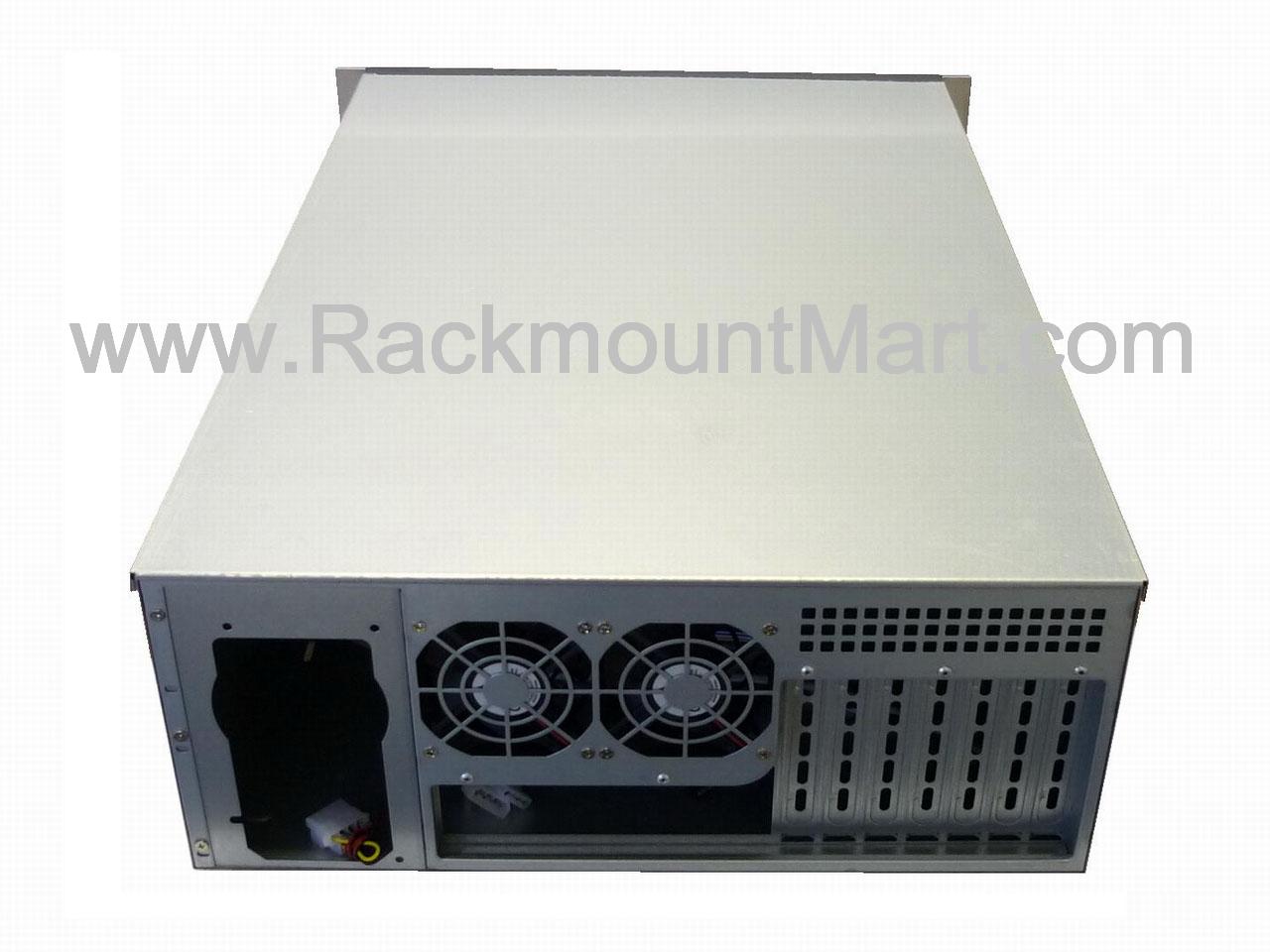

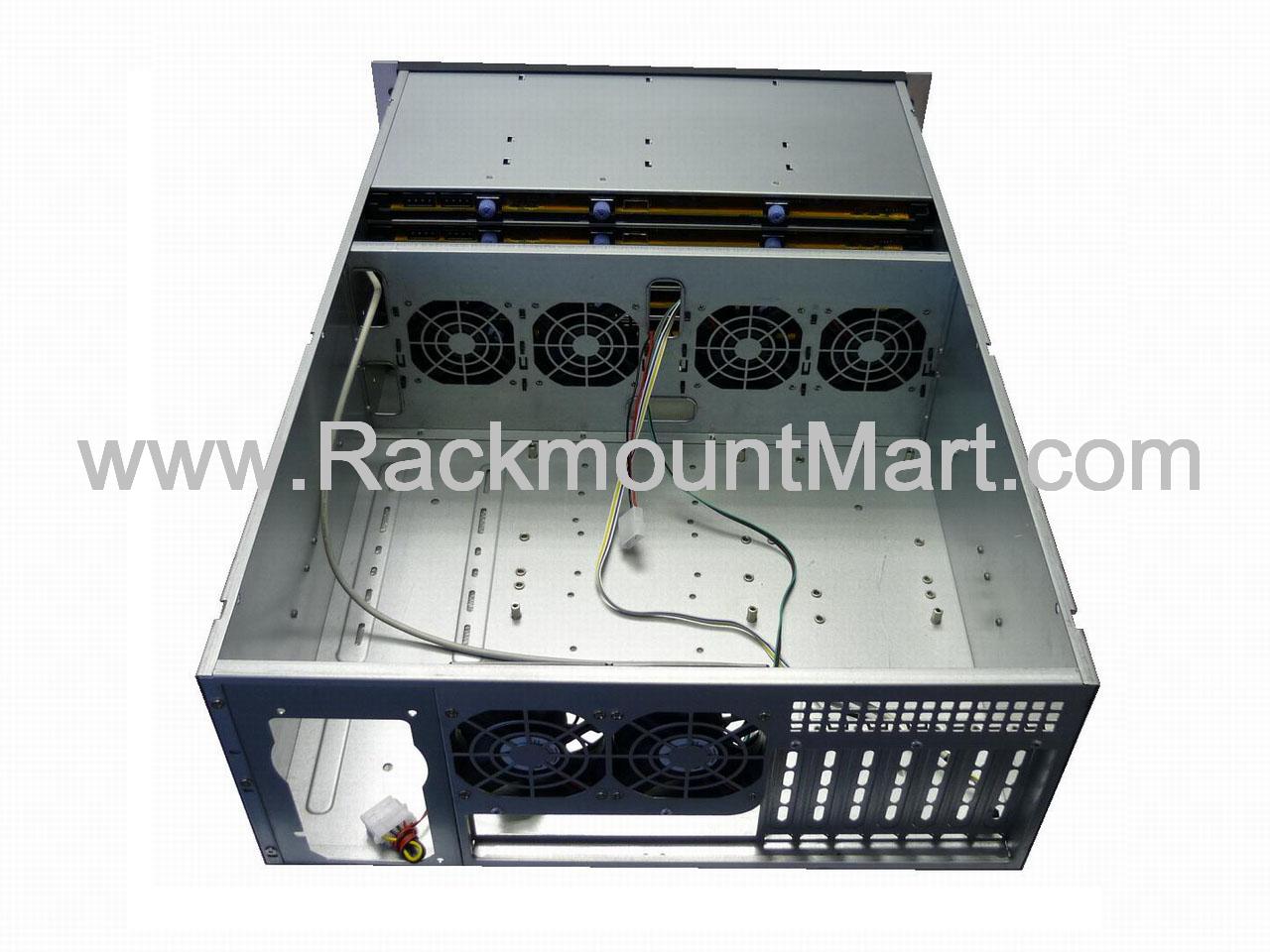

Cooling Units: 4 x 80mm middle fans wall, 2 x 80mm rear fans

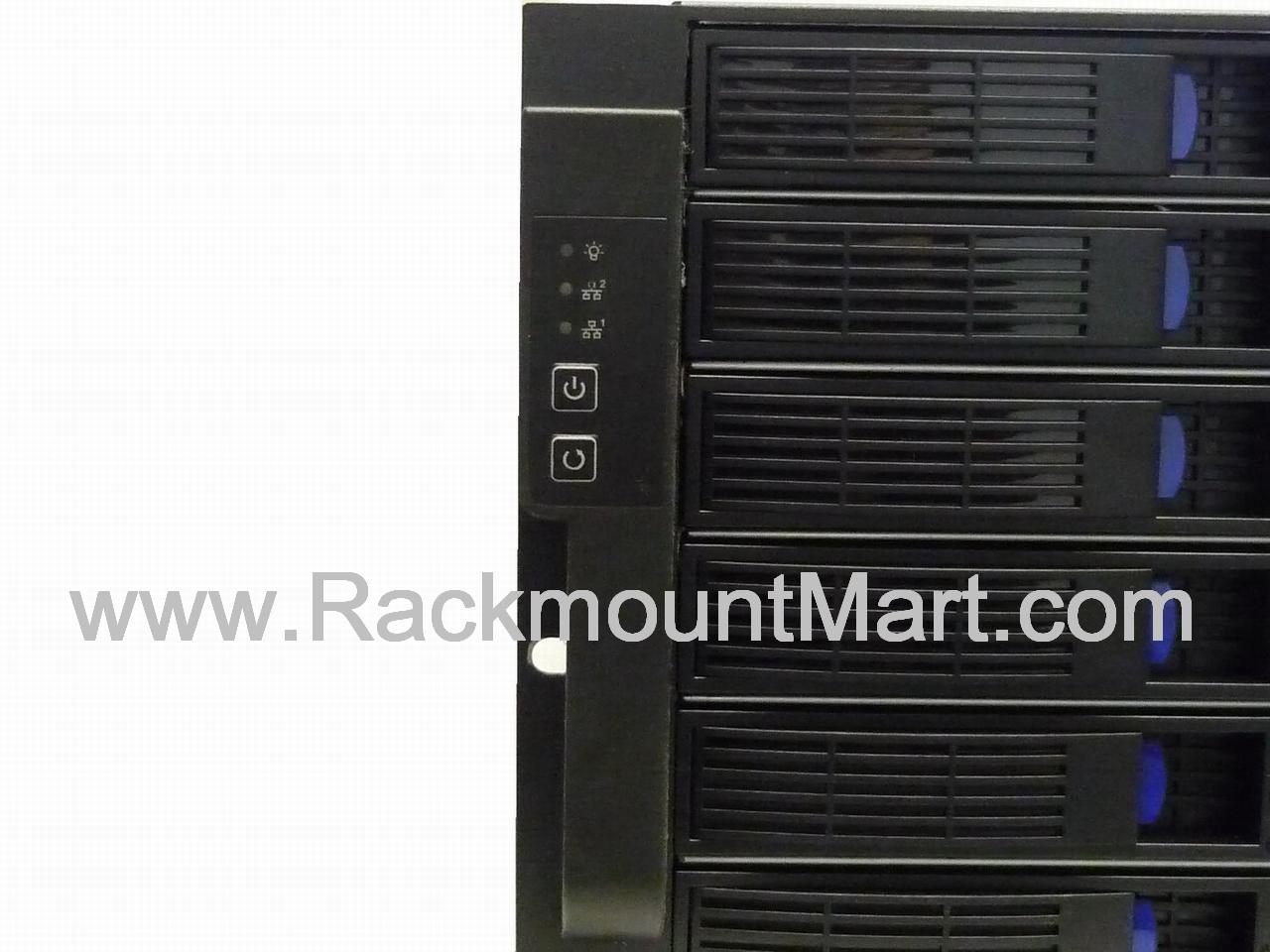

Switches: Power ON/OFF x 1, System reset x 1
Indicators: Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector: Two front accessible USB ports,
six internal SFF-8087 Mini SAS connectors,
twelve 4-pin molex redundant power connectors
Dimensions:
(W x D x H )
19" x 25.5" x 7.0" ( 483mm x 650mm x 176mm )
Temperature: 0 / 40 °C, 32 / 104 °F ( Operating )
-20 / 60 °C, -4 / 140 °F ( Non-Operating )
Relative Humidity: 5% to 95%,non-condensing
Power Supply Options: (Rear Chassis Installation) Single 460W & up PS,
or Mini Redundant 400W & up power supply



  Features:

  • 4U rackmount design
  • 24x hot-swappable SATA (II or III) / SAS 6G drive bays
  • Six internal SFF-8087 Mini SAS connectors support up to twenty-four 3.5" or 2.5" SATA ( II or III ) or SAS 6G hard drives

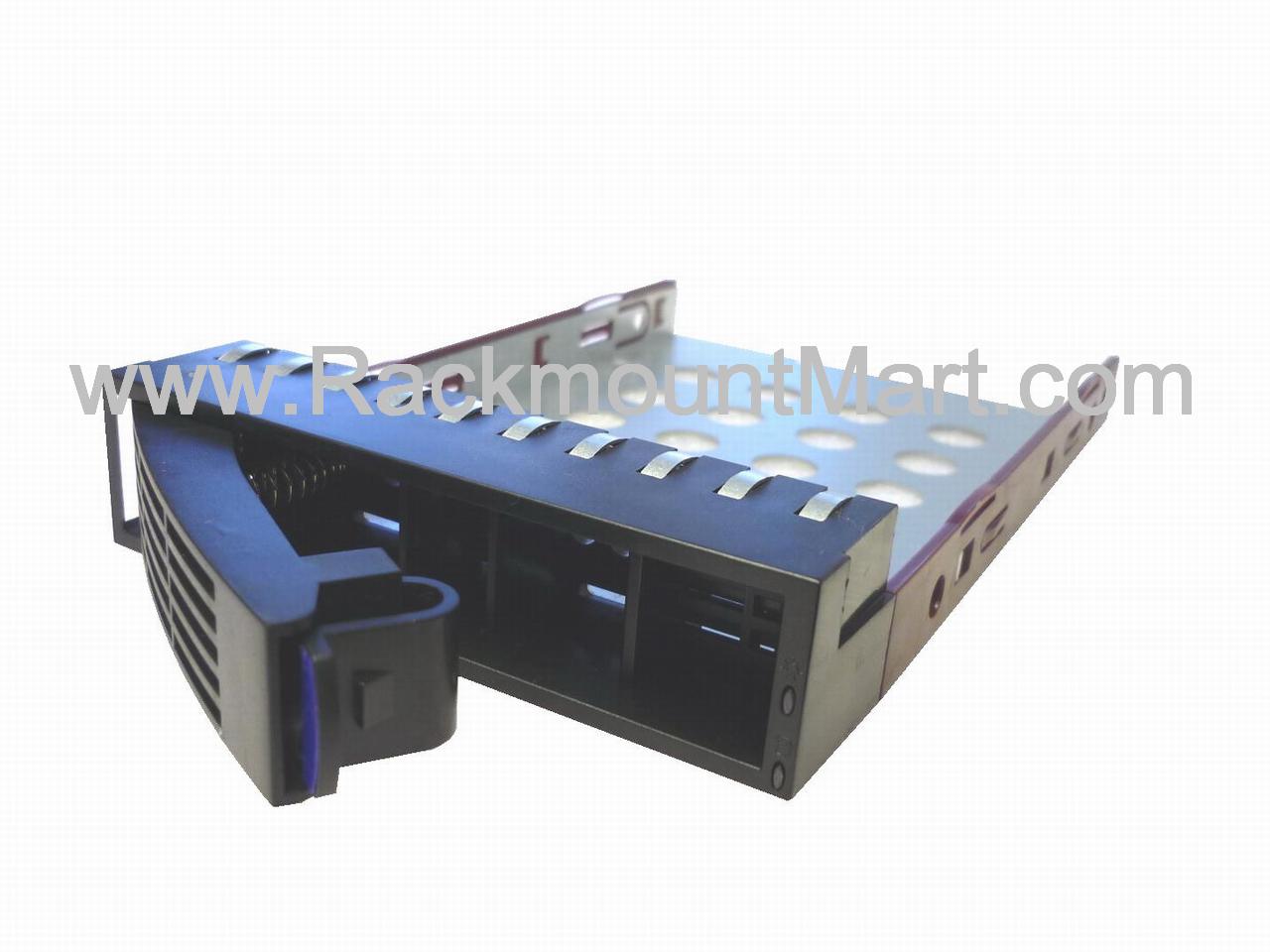

  • Hot-swappable HDD tray with special designed power-off and lock mechanism
  • 24 x 3.5 " hot-swappable drive bays
  • Ball-bearing cooling fans for better ventilation
  • RoHS Compliant
  • Support EEB ( 12" x 13" ), CEB( 12" x 10.5" ), ATX ( 12" x 9.6" ), Micro ATX ( 9.6" x 9.6" ), ITX ( 6.7" x 6.7" ) motherboard

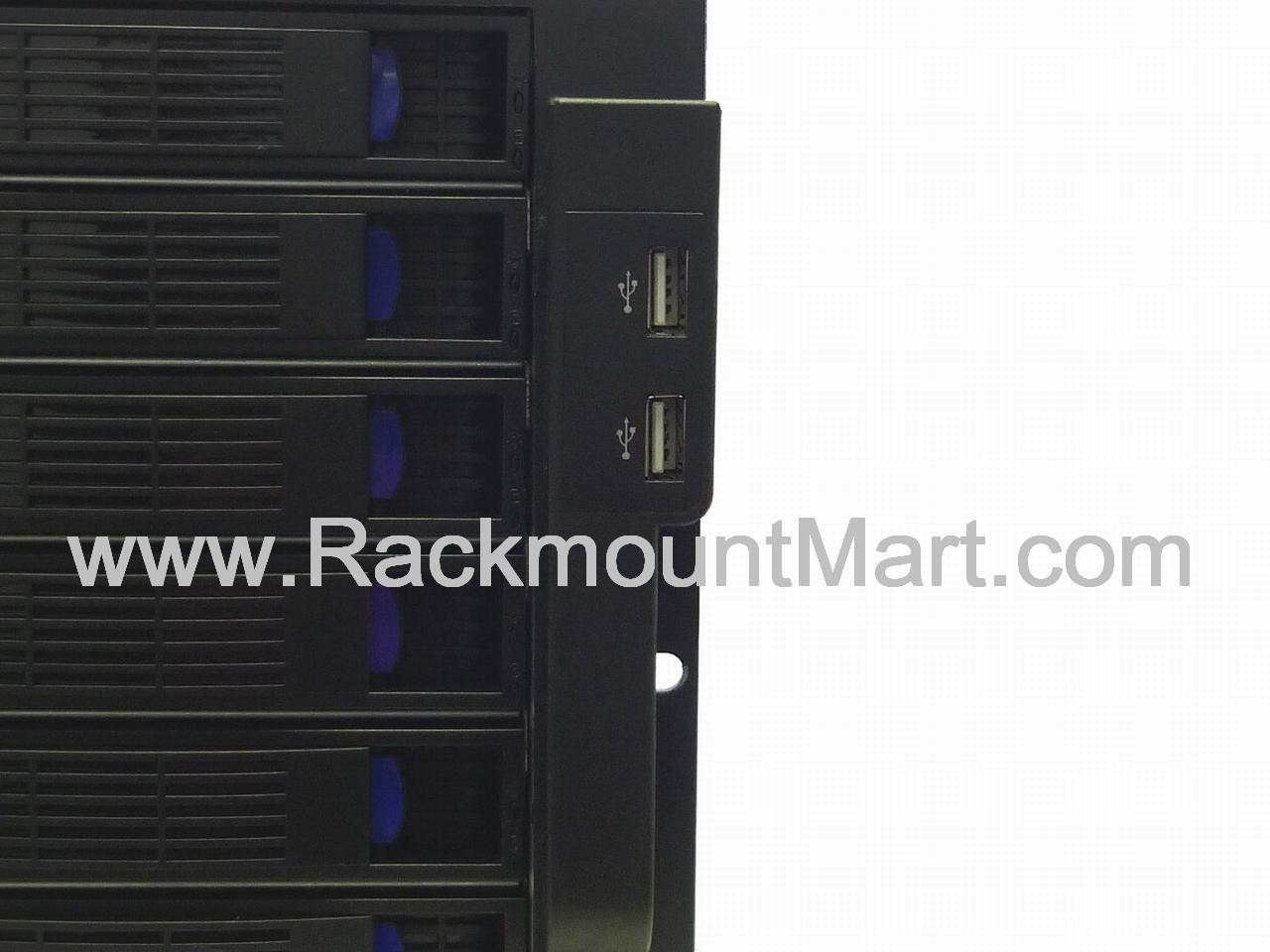

  • Two front USB ports
  • Smooth border prevent lacerating your skin


  For more pictures , click on the following for enlarged view:





Ordering information



Part Number  Description
RM4034-0-MS  4U Rackmount Chassis with 24 x hot-swappable SATA (II or III) / SAS 6G drive bays, Black, Case only.




RM4034
OPTIONS:
