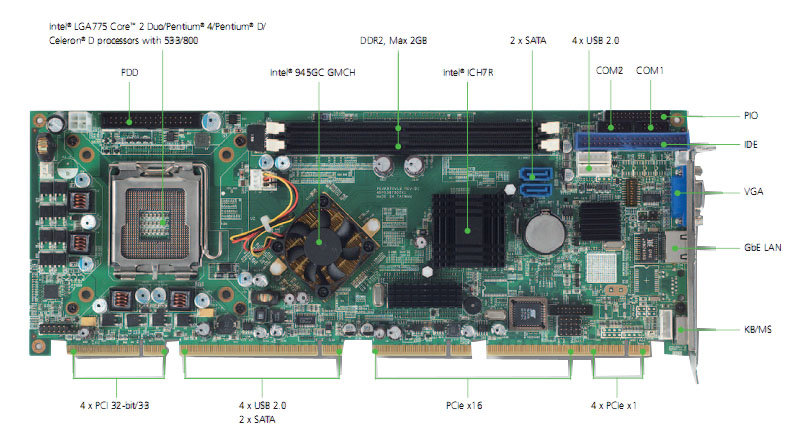

| CPU Support |
Support Intel® LGA775 Core™ 2 Duo/Pentium® 4/Pentium® D/ Celeron® D processors
Intel® Embedded Processor List ( Intel® Longevity CPU):
Intel® Core™2 Duo Processor E4300 & E2160
Intel® Pentium® 4 Processor 651 & 551 & 531
Intel® Celeron® D Processor 352 & 341
Intel® Celeron® Processor 440
533/800 MHz FSB support |
| Main Memory |
2 x 240-pin DIMM, for up to 2GB dual channel Non-ECC DDR2 533/667 SDRAM
* Note: Maximum 2GB. Actual memory size is dynamic based on the OS I/O resource allocation |
| Chipset |
Intel® 945GC +ICH7R |
| BIOS |
Award System BIOS
Plug & Play support
Advanced Power Management and Advanced Configuration & Power
Interface support |
| On-board LAN |
1 x Intel® 82573L PCIe Gigabit Ethernet Controllers
Supports Boot from LAN |
| Display Interface |
Intel® 945GC GMCH Integrated Intel® GMA 950, Max 128 MB of DVMT for graphics memory allocation
Analog display support up to 2048 x 1536 @ 75 Hz for CRT |
| I/O Interface |
USB 2.0: 8 ports (4 on board, 4 to backplane)
Serial port: 2 port, with 2x5pin headers 1 x 40-pin connector. Support Ultra ATA 100/66/33
Disk on Module: 1 x 2-pin power connector for DOM
SATA HDD: 4 ports,Support RAID 0.1 (2 on board, 2 to backplane)
Parallel port: 1 x 26-pin connector
Floppy: 1 x 34-pin connector
GPIO: Supports 4 sets general purpose I/O each with TTL level (5 V) interface
On-board buzzer/2-pin power on button switch
SMBus 2.0 to backplane
On-board 2-pin header for reset/4-pin for PC speaker
5-pin for key lock/power LED/HDD Active LED
1 x 4-pin fan connector (for CPU); 2 x 3-pin fan connectors (for System)
1 x 5-pin JST connector for chassis or backplane front Keyboard / Mouse
I/O On SBC Bracket
1 x VGA DB-15 connector
1 x RJ45 Gigabit Ethernet LAN port
1 x PS/2 Keyboard/Mouse |
| System monitor |
8 voltages (For +1.5V, +1.8V, +3.3V, +3.3VSB, +5V, +12V, Vcore and +5Vsb)
2 temperature
3 fan speed monitors
|
| Watchdog Timer |
1-minute increments from 1 to 255 minutes
1-second increments from 1 to 255 seconds
On-chip RTC with battery backup
1 x External Li-lon battery |
| Power Input |
Power source from backplane through golden finger
Supports both ATX or BTX power supplies
4-pin +12 V power input connector
* Note:
1. Full Loading: Utilize CPU 100% with Burn-in test running
2. Light Loading: Utilize CPU loading below 5% without data or application running. |
| Environment |
Board level operating temperature: 0°C to 60°C
Storage temperature: -20°C to 80°C
Relative humidity: 10% to 90% (Non-condensing)
|
| Certifications |
CE approval
FCC Class A
|
| Dimensions |
PICMG 1.3 SHB
338.58mm (L) x 126.39mm (W) (13.3" x 4.9") |
